Phoenix Contact 1912841 Terminal Block Plug - Equivalent & Substitute Parts

Part Overview

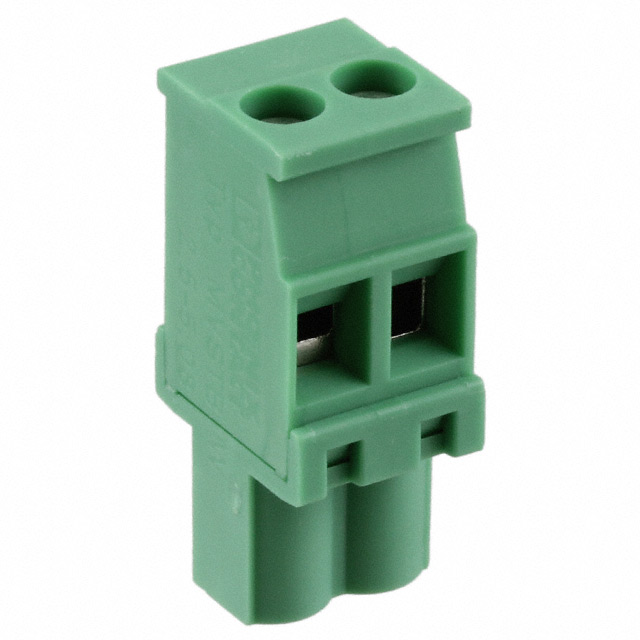

The Phoenix Contact 1912841 is a 2-position terminal block plug with female sockets, 0.200" (5.08mm) pitch, designed for 270° free-hanging in-line applications. This component features screw-rising cage clamp termination and supports wire gauges from 12-30 AWG (0.2-2.5mm²). The part is actively manufactured and maintains full RoHS3 and REACH compliance, making it suitable for industrial control and power distribution applications where reliable screw-terminated connections are required.

Equivalent substitute parts are identified when they maintain compatibility across critical electrical parameters (voltage, current ratings), mechanical specifications (pitch, positions, mounting type), and termination method, while accommodating the same wire gauge ranges and housing material standards.

Substiute Parts

1912841

Phoenix ContactIn Stock: 8481912841 Datasheet

Current PartRFQ

EDZ1100/2

On-Shore TechnologyIn Stock: 2499EDZ1100/2 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the Phoenix Contact 1912841 is determined by strict alignment with the following critical parameters:

Electrical Compatibility: Voltage rating must meet or exceed 300V (UL standard). Current rating must support minimum 16A operation.

Mechanical Compatibility: Pitch specification must be exactly 0.200" (5.08mm). Number of positions must be 2. Mounting configuration must be free-hanging in-line. Termination method must be screw-based.

Material & Compliance: Housing material must be Polyamide (PA) or Nylon. Flammability rating must meet UL94 V-0 standard. RoHS3 and REACH compliance status must be maintained.

Wire Accommodation: Wire gauge range must accommodate 0.2-2.5mm² (12-30 AWG minimum overlap).

The On-Shore Technology EDZ1100/2 qualifies as a direct substitute based on these criteria: identical 2-position, 5.08mm pitch configuration; free-hanging in-line mounting; screw termination; 300V UL rating; UL94 V-0 flammability; Polyamide housing; RoHS3 and REACH compliance; and compatible wire gauge range (10-22 AWG, 2.5mm²).

Parameter Comparison

Engineering Selection Recommendations

Both the Phoenix Contact 1912841 and On-Shore Technology EDZ1100/2 maintain active product status with full regulatory compliance. Selection between these parts should be based on:

Availability: Phoenix Contact 1912841 has 755 units in stock; On-Shore Technology EDZ1100/2 has 2,450 units in stock.

Compliance Verification: Both parts are RoHS3 compliant and REACH unaffected, meeting current environmental and safety standards for industrial applications.

Electrical Performance: Both parts support 300V UL rating and screw-based termination. The Phoenix Contact part specifies 16A IEC current rating; the On-Shore part does not specify IEC current rating in provided data.

Wire Gauge Consideration: The Phoenix Contact part accommodates 12-30 AWG; the On-Shore part accommodates 10-22 AWG. Applications requiring wire gauges smaller than 12 AWG or larger than 22 AWG are restricted to the Phoenix Contact part.

Torque Specification: Phoenix Contact specifies 0.5-0.6 Nm; On-Shore specifies 0.5 Nm. Both values are within acceptable screw termination ranges for this connector class.

Frequently Asked Questions (FAQ)

Q: Can the On-Shore Technology EDZ1100/2 directly replace the Phoenix Contact 1912841 in all applications?

A: Direct replacement is possible for applications using wire gauges within the 12-22 AWG overlap range. Applications requiring 30 AWG wire or smaller than 10 AWG wire require the original Phoenix Contact part.

Q: What is the primary difference between these two parts?

A: The primary difference is wire gauge accommodation range. The Phoenix Contact 1912841 supports 12-30 AWG; the On-Shore EDZ1100/2 supports 10-22 AWG. Both parts are electrically and mechanically equivalent for the overlapping wire gauge range.

Q: Are both parts suitable for the same voltage and current applications?

A: Both parts support 300V UL rating. The Phoenix Contact part specifies 16A IEC current rating. The On-Shore part does not provide IEC current specification in available documentation. For applications requiring confirmed 16A IEC rating, the Phoenix Contact part is the specified choice.

Q: Do these parts require different installation procedures?

A: Both parts use screw-based termination with compatible torque specifications (0.5-0.6 Nm for Phoenix Contact; 0.5 Nm for On-Shore). Installation procedures are equivalent.

Q: What is the significance of the UL94 V-0 flammability rating?

A: UL94 V-0 indicates the housing material meets the highest flammability classification, meaning the material will not support combustion and will self-extinguish. Both parts meet this standard.

Q: Are there any compliance differences between these parts?

A: Both parts are RoHS3 compliant and REACH unaffected. No compliance differences exist between the two parts.
