Phoenix Contact 1911897 Terminal Block Plug - Equivalent & Substitute Parts

Part Overview

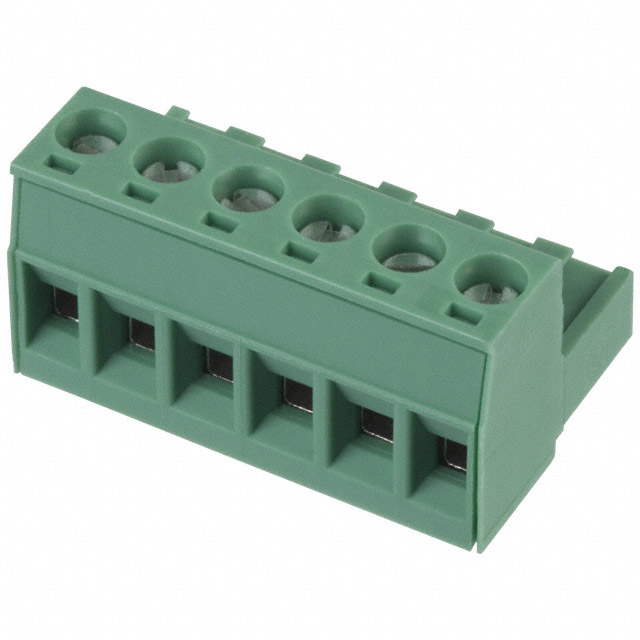

The Phoenix Contact 1911897 is a 6-position terminal block plug with female sockets, 5.00mm pitch, designed for free-hanging in-line applications. This component features screw termination with rising cage clamp technology and is rated for 16A at 630V (IEC) or 300V (UL). The part is currently active in production with 994 units in stock. Equivalent and substitute parts are identified to provide design flexibility, supply chain alternatives, and compatibility options for applications requiring 6-position terminal block plugs with similar electrical and mechanical characteristics.

Key Parameters

Parameter	Value
Manufacturer Part Number	1911897
Manufacturer	Phoenix Contact
Series	COMBICON MSTB
Number of Positions	6
Pitch	0.197" (5.00mm)
Type	Plug, Female Sockets
Termination Style	Screw - Rising Cage Clamp
Mounting Type	Free Hanging (In-Line)
Current Rating (IEC)	16A
Voltage Rating (IEC)	630V
Current Rating (UL)	16A
Voltage Rating (UL)	300V
Wire Gauge Range	12-30 AWG (0.2-2.5mm²)
Screw Size	M3
Torque Specification	0.5-0.6 Nm (4.4-5.3 Lb-In)
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant
Product Status	Active

Substitute Part Grouping Explanation

Substitution eligibility for the Phoenix Contact 1911897 is determined by the following critical parameters:

Primary Compatibility Criteria:

6-position configuration with female sockets
Pitch tolerance: 5.00mm (0.197") or 5.08mm (0.200") are mechanically compatible within standard connector tolerances
Screw termination method (rising cage clamp preferred for functional equivalence)
Free-hanging in-line mounting orientation
UL94 V-0 flammability rating (mandatory for safety compliance)
ROHS3 compliance and EAR99 classification

Electrical Compatibility Range:

Minimum voltage rating: 300V UL
Current rating: 12A minimum (acceptable reduction from 16A primary rating)
Wire gauge support: 12-24 AWG minimum (subset of primary 12-30 AWG range)

Identified Substitute Parts:

OSTTJ067150 (On Shore Technology Inc.) - Direct pitch match (5.00mm), identical position count, screw termination, extended operating temperature range (-40°C to 115°C)
OSTTJ065153 (On Shore Technology Inc.) - Pitch variant (5.08mm), identical position count, screw termination, operating temperature range (-30°C to 105°C)
TJ0651560000G (Amphenol Anytek) - Pitch variant (5.08mm), identical position count, rising cage clamp termination, extended operating temperature range (-40°C to 115°C)

All substitute parts maintain the required safety certifications, compliance standards, and mechanical form factors necessary for functional substitution.

Parameter Comparison

Parameter	Phoenix Contact 1911897	OSTTJ067150	OSTTJ065153	TJ0651560000G
Manufacturer	Phoenix Contact	On Shore Technology Inc.	On Shore Technology Inc.	Amphenol Anytek
Number of Positions	6	6	6	6
Pitch	0.197" (5.00mm)	0.197" (5.00mm)	0.200" (5.08mm)	0.200" (5.08mm)
Type	Plug, Female Sockets	Plug, Female Sockets	Plug, Female Sockets	Plug, Female Sockets
Termination Style	Screw - Rising Cage Clamp	Screw	Screw	Screw - Rising Cage Clamp
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)
Voltage Rating (UL)	300V	300V	300V	300V
Current Rating (UL)	16A	15A	15A	12A
Wire Gauge Range	12-30 AWG (0.2-2.5mm²)	12-30 AWG (0.34-2.5mm²)	12-24 AWG (0.34-2.5mm²)	12-24 AWG (1-2.5mm²)
Operating Temperature	Not specified	-40°C ~ 115°C	-30°C ~ 105°C	-40°C ~ 115°C
Screw Size	M3	Not specified	Not specified	M3
Torque Specification	0.5-0.6 Nm (4.4-5.3 Lb-In)	0.56 Nm (5.0 Lb-In)	0.56 Nm (5.0 Lb-In)	0.56 Nm (5.0 Lb-In)
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
RoHS Status	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant
Product Status	Active	Active	Active	Active

Engineering Selection Recommendations

OSTTJ067150 (On Shore Technology Inc.) is the primary substitute for the Phoenix Contact 1911897. This part maintains identical pitch (5.00mm), position count, and screw termination method. Both components are active products with ROHS3 compliance and UL94 V-0 flammability ratings. The current rating reduction from 16A to 15A is acceptable for applications not requiring maximum current capacity. Extended operating temperature range (-40°C to 115°C) provides additional thermal margin.

TJ0651560000G (Amphenol Anytek) is a secondary substitute suitable for applications where pitch tolerance of 5.08mm is acceptable. This part preserves the rising cage clamp termination feature of the primary component and offers extended operating temperature range. The current rating of 12A represents a greater reduction and should be evaluated against application requirements. M3 screw specification matches the primary part.

OSTTJ065153 (On Shore Technology Inc.) is a tertiary substitute with 5.08mm pitch. While functionally compatible, this part lacks specified screw size information and has a narrower operating temperature range (-30°C to 105°C) compared to alternatives. Selection should be based on specific application thermal requirements.

All substitute parts maintain active product status, ensuring continued availability and manufacturer support. Selection among substitutes should prioritize pitch matching (OSTTJ067150 for 5.00mm applications) and current rating requirements relative to application load specifications.

Frequently Asked Questions (FAQ)

Q: Can OSTTJ067150 directly replace Phoenix Contact 1911897 in existing designs?

A: Yes. OSTTJ067150 maintains identical pitch (5.00mm), position count (6), and screw termination method. Both parts are ROHS3 compliant with UL94 V-0 flammability ratings. The 15A current rating is suitable for applications not requiring the full 16A capacity of the primary part.

Q: What is the pitch difference between 5.00mm and 5.08mm, and does it affect compatibility?

A: The 0.08mm difference falls within standard connector tolerance ranges and is mechanically compatible. Parts with 5.08mm pitch (OSTTJ065153, TJ0651560000G) can interface with 5.00mm mating connectors in most applications. Verify mating connector specifications for critical applications.

Q: How do current ratings affect substitution decisions?

A: The Phoenix Contact 1911897 is rated for 16A (UL). Substitute parts range from 12A to 15A. Selection depends on application current requirements. If the application draws less than 12A, all substitutes are acceptable. For applications requiring 12-15A, OSTTJ067150 or OSTTJ065153 are suitable. For applications requiring 15-16A, only OSTTJ067150 meets the requirement.

Q: Are all substitute parts available in the same packaging format?

A: All identified substitutes are supplied in bulk packaging, matching the primary part packaging specification. Inventory availability varies: OSTTJ067150 (3537 units), OSTTJ065153 (6901 units), TJ0651560000G (2269 units).

Q: What is the significance of the rising cage clamp termination feature?

A: Rising cage clamp termination provides positive wire retention and consistent contact pressure. Phoenix Contact 1911897 and TJ0651560000G both feature this technology. OSTTJ067150 and OSTTJ065153 use standard screw termination without the cage clamp feature. For applications requiring maximum wire retention security, TJ0651560000G or the primary part are preferred.

Q: Do all substitute parts support the full wire gauge range of the primary part?

A: No. Phoenix Contact 1911897 supports 12-30 AWG (0.2-2.5mm²). OSTTJ067150 supports 12-30 AWG (0.34-2.5mm²), while OSTTJ065153 and TJ0651560000G support 12-24 AWG. For applications using 26-30 AWG wire, only the primary part and OSTTJ067150 are suitable.

Q: Are all parts compliant with the same regulatory standards?

A: Yes. All parts listed are ROHS3 compliant, EAR99 classified, and carry UL94 V-0 flammability ratings. All are classified under HTSUS 8536.90.4000. Compliance certifications are equivalent across all options.
