191-037-222-001 D-Sub 37 Position Receptacle Connector Equivalent & Substitute Parts

Part Overview

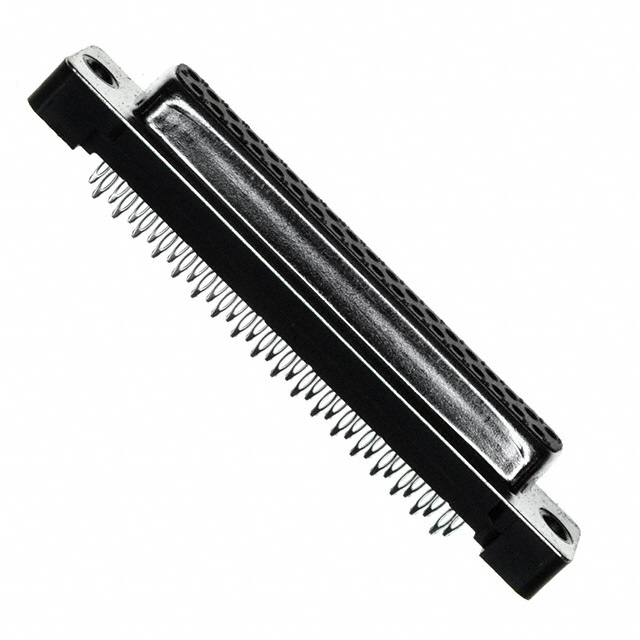

The 191-037-222-001 is a 37 position D-Sub receptacle connector with female sockets, manufactured by NorComp Inc. in the 191 series. This panel mount connector features press-fit termination and is designed for signal applications requiring reliable D-shaped connector interfaces. The part is currently in active production with 973 units in stock.

Equivalent and substitute parts are necessary when the primary part becomes unavailable, when alternative packaging or mounting configurations are required for specific assembly processes, or when design revisions call for compatible connector variants from different manufacturers that meet identical electrical and mechanical specifications.

Key Parameters

Parameter	191-037-222-001
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Number of Positions	37
Number of Rows	2
Shell Size, Connector Layout	4 (DC, C)
Mounting Type	Panel Mount
Termination	Press-Fit
Contact Type	Signal
Material Flammability Rating	UL94 V-0
Operating Temperature Range	-55°C ~ 125°C
RoHS Status	ROHS3 Compliant

Substitute Part Grouping Explanation

Substitution eligibility for the 191-037-222-001 is determined by the following critical parameters:

Core Compatibility Parameters:

Connector style: D-Sub
Connector type: Receptacle, Female Sockets
Number of positions: 37
Number of rows: 2
Shell size and layout: 4 (DC, C)
Termination method: Press-Fit
Contact type: Signal
Material flammability: UL94 V-0

Acceptable Variations:

Mounting type: Panel mount variants and through-hole variants are functionally equivalent when mechanical integration permits
Shell material finish: Steel with nickel, tin, or tin-nickel plating are acceptable
Contact finish: Gold plating with varying thickness specifications
Dielectric material: Polyamide (PA6T), Polybutylene Terephthalate (PBT), or thermoplastic compositions
Operating temperature: -55°C ~ 105°C or -55°C ~ 125°C
Packaging format: Tray or bulk packaging does not affect electrical or mechanical function

Non-Substitutable Differences:

Connector position count, row configuration, or shell size
Termination method (press-fit only)
Flammability rating below UL94 V-0

Parameter Comparison

Part Number	Manufacturer	Mounting Type	Shell Material, Finish	Contact Finish	Dielectric Material	Operating Temperature	RoHS Status	Inventory
191-037-222-001	NorComp Inc.	Panel Mount	Steel, Nickel Plated	Gold	Polyamide (PA6T), Nylon 6T	-55°C ~ 125°C	ROHS3 Compliant	973 Pcs
191-037-223R001	NorComp Inc.	Panel Mount	Steel, Nickel Plated	Gold	Polyamide (PA6T), Nylon 6T	-55°C ~ 125°C	ROHS3 Compliant	1153 Pcs
5745459-2	TE Connectivity AMP Connectors	Through Hole	Not Specified	Gold	Polyamide (PA), Nylon, Glass Filled	-55°C ~ 105°C	RoHS Compliant	992 Pcs
5745589-2	TE Connectivity AMP Connectors	Through Hole	Not Specified	Gold	Not Specified	-55°C ~ 105°C	ROHS3 Compliant	1180 Pcs
5747713-2	TE Connectivity AMP Connectors	Through Hole	Steel, Tin Plated	Gold	Thermoplastic	-55°C ~ 105°C	RoHS Compliant	1878 Pcs
5747714-2	TE Connectivity AMP Connectors	Through Hole	Steel, Tin Plated	Gold	Thermoplastic	-55°C ~ 105°C	RoHS Compliant	1365 Pcs
5747715-2	TE Connectivity AMP Connectors	Through Hole	Steel, Tin Plated	Gold	Thermoplastic	-55°C ~ 105°C	RoHS Compliant	957 Pcs
747713-2	TE Connectivity AMP Connectors	Through Hole	Steel, Tin Plated	Gold	Thermoplastic	-55°C ~ 105°C	Not Applicable	617 Pcs
D37S91C4PA00LF	Amphenol ICC (FCI)	Through Hole	Steel, Tin-Nickel Plated	Gold	Polybutylene Terephthalate (PBT)	-55°C ~ 125°C	RoHS Compliant	945 Pcs
D37S91C4PL00LF	Amphenol ICC (FCI)	Through Hole	Steel, Tin-Nickel Plated	Gold	Polybutylene Terephthalate (PBT)	-55°C ~ 125°C	RoHS Compliant	1153 Pcs
D37S91C4PV00LF	Amphenol ICC (FCI)	Through Hole	Steel, Tin-Nickel Plated	Gold	Polybutylene Terephthalate (PBT)	-55°C ~ 125°C	RoHS Compliant	837 Pcs

Engineering Selection Recommendations

Primary Substitute (Same Manufacturer): 191-037-223R001 from NorComp Inc. is the direct equivalent with identical electrical and mechanical specifications. This part maintains the same panel mount configuration, material composition, and operating temperature range. Selection of this part eliminates any cross-manufacturer compatibility considerations.

Secondary Substitutes (TE Connectivity AMP Connectors - AMPLIMITE Series): Parts 5745589-2, 5747713-2, 5747714-2, 5747715-2, and 747713-2 are functionally equivalent in core electrical parameters but feature through-hole mounting instead of panel mount. These parts are suitable for applications where PCB-mounted receptacles are acceptable. All TE Connectivity parts maintain UL94 V-0 flammability compliance and RoHS compliance status. Operating temperature range is -55°C ~ 105°C, which is 20°C lower than the primary part at the upper limit.

Tertiary Substitutes (Amphenol ICC / FCI - Delta D Series): Parts D37S91C4PA00LF, D37S91C4PL00LF, and D37S91C4PV00LF from Amphenol ICC (FCI) provide equivalent functionality with through-hole mounting. These parts maintain the full -55°C ~ 125°C operating temperature range and RoHS compliance. Shell material finish is tin-nickel plated, and dielectric material is polybutylene terephthalate (PBT). Current rating is specified at 5A per contact.

Compliance Considerations: All substitute parts listed maintain UL94 V-0 material flammability rating and RoHS compliance status. REACH compliance status varies across manufacturers and should be verified against specific supply chain requirements.

Frequently Asked Questions (FAQ)

Q: Can I substitute a through-hole mounted connector for the panel mount 191-037-222-001?

A: Through-hole mounted D-Sub connectors (5745589-2, 5747713-2, 5747714-2, 5747715-2, 747713-2, D37S91C4PA00LF, D37S91C4PL00LF, D37S91C4PV00LF) are electrically and mechanically equivalent but require different mechanical integration. Panel mount connectors are designed for mounting directly to an enclosure or panel, while through-hole connectors mount to a printed circuit board. Substitution is possible only if the application design permits PCB mounting instead of panel mounting.

Q: What is the difference between the NorComp 191-037-222-001 and 191-037-223R001?

A: Both parts are 37 position D-Sub receptacles from NorComp Inc. with identical electrical and mechanical specifications. The primary difference is packaging: 191-037-223R001 is supplied in tray packaging, while 191-037-222-001 packaging is not specified. Both maintain the same performance characteristics and are direct substitutes.

Q: Are TE Connectivity and Amphenol ICC connectors interchangeable with the NorComp part?

A: TE Connectivity (AMPLIMITE series) and Amphenol ICC (Delta D series) connectors are electrically and mechanically equivalent in core parameters: 37 positions, 2 rows, shell size 4, press-fit termination, and UL94 V-0 compliance. However, mounting type differs (through-hole versus panel mount). Physical integration into the application must be evaluated before substitution.

Q: What is the operating temperature difference between the primary part and TE Connectivity substitutes?

A: The 191-037-222-001 operates from -55°C to 125°C. TE Connectivity parts (5745589-2, 5747713-2, 5747714-2, 5747715-2, 747713-2) operate from -55°C to 105°C, a 20°C reduction at the upper temperature limit. Amphenol ICC parts (D37S91C4PA00LF, D37S91C4PL00LF, D37S91C4PV00LF) maintain the full -55°C to 125°C range. Application thermal requirements must be verified before selecting TE Connectivity alternatives.

Q: Do all substitute parts meet RoHS compliance?

A: All listed substitute parts are RoHS compliant. The primary part is ROHS3 compliant. TE Connectivity parts are marked as RoHS Compliant or ROHS3 Compliant. Amphenol ICC parts are RoHS Compliant. Part 747713-2 is marked as "Not Applicable" for RoHS status. Verify specific RoHS certification requirements for your supply chain before final part selection.

Q: What packaging options are available for these connectors?

A: Packaging formats include tray and bulk. Tray packaging is used for 191-037-223R001, 5745589-2, D37S91C4PA00LF, D37S91C4PL00LF, and D37S91C4PV00LF. Bulk packaging is used for 5745459-2, 5747713-2, 5747714-2, 5747715-2, and 747713-2. Packaging format does not affect electrical or mechanical function and is selected based on assembly process requirements.
