Phoenix Contact 1908907 Terminal Block Header - Equivalent & Substitute Parts

Part Overview

The Phoenix Contact 1908907 is a 5-position terminal block header with male pins, shrouded on 4 sides, featuring 0.150" (3.81mm) pitch and 90° right-angle through-hole mounting. This component is classified as obsolete, making equivalent substitute parts necessary for ongoing design support and procurement continuity. The part operates at 8A (IEC) / 8A (UL) and 250V (IEC) / 300V (UL), with UL94 V-0 flammability rating and RoHS compliance.

Key Parameters

Parameter	Value
Manufacturer Part Number	1908907
Manufacturer	Phoenix Contact
Category	Terminal Blocks
Series	COMBICON MC
Number of Positions	5
Pitch	0.150" (3.81mm)
Header Orientation	90°, Right Angle
Type	Header, Male Pins, Shrouded (4 Side)
Mounting Type	Through Hole
Termination Style	Solder
Current - IEC	8A
Voltage - IEC	250V
Current - UL	8A
Voltage - UL	300V
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Product Status	Obsolete

Substitute Part Grouping Explanation

Substitution eligibility for the Phoenix Contact 1908907 is determined by the following critical parameters:

Position Count & Pitch: 5 positions at 0.150" (3.81mm) spacing (non-negotiable)
Header Type & Orientation: Male pins, shrouded 4-side configuration, 90° right-angle mounting
Mounting & Termination: Through-hole solder termination
Electrical Ratings: Minimum 8A (UL) and 300V (UL) capability
Flammability & Compliance: UL94 V-0 rating and RoHS compliance required

The following parts meet these substitution criteria:

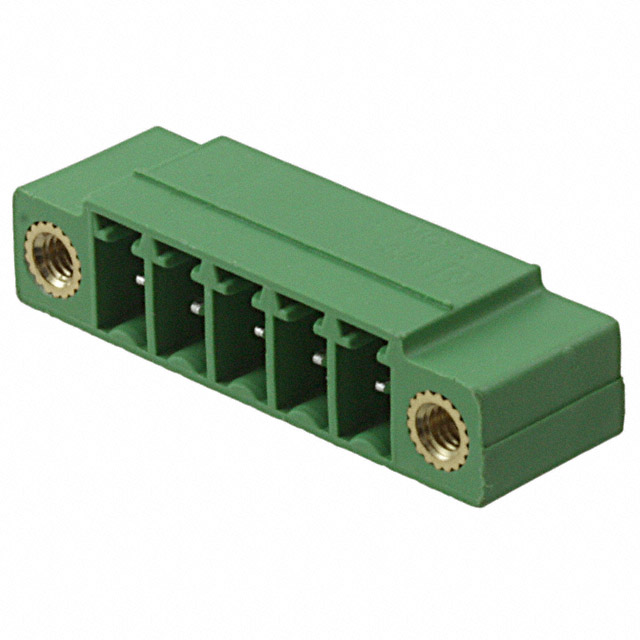

Phoenix Contact 1827897 — Active status variant with identical electrical and mechanical specifications; housing material differs (PBT vs. PA)
Molex 0395166005 — Eurostyle ESE 39516 series; meets all electrical and mechanical requirements with extended operating temperature range
Weidmüller 1862600000 & 1863700000 — Omnimate SC series; exceed electrical ratings (17.5A IEC, 320V IEC) with enhanced environmental protection (IP20)
Amphenol Anytek OQ0535510000G — OQ series; meets electrical and mechanical specifications with extended operating temperature
On Shore Technology OSTOQ053551 — OSTOQ series; meets core specifications with brass contact material

Parameter Comparison

Parameter	1908907 (Main)	1827897	0395166005	1862600000	1863700000	OQ0535510000G	OSTOQ053551
Manufacturer	Phoenix Contact	Phoenix Contact	Molex	Weidmüller	Weidmüller	Amphenol Anytek	On Shore Technology
Series	COMBICON MC	COMBICON MC	Eurostyle ESE 39516	Omnimate SC	Omnimate SC	OQ	OSTOQ
Product Status	Obsolete	Active	Active	Active	Active	Active	Active
Number of Positions	5	5	5	5	5	5	5
Pitch	0.150" (3.81mm)	0.150" (3.81mm)	0.150" (3.81mm)	0.150" (3.81mm)	0.150" (3.81mm)	0.150" (3.81mm)	0.150" (3.81mm)
Header Orientation	90°, Right Angle	90°, Right Angle	90°, Right Angle	90°, Right Angle	90°, Right Angle	90°, Right Angle	90°, Right Angle
Type	Header, Male Pins, Shrouded (4 Side)	Header, Male Pins, Shrouded (4 Side)	Header, Male Pins, Shrouded (4 Side)	Header, Male Pins, Shrouded (4 Side)	Header, Male Pins, Shrouded (4 Side)	Header, Male Pins, Shrouded (4 Side)	Header, Male Pins, Shrouded (4 Side)
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Solder
Termination Style	Solder	Solder	Solder	Solder	Solder	Solder	—
Current - UL	8A	8A	8A	10A	10A	10A	—
Voltage - UL	300V	300V	300V	300V	300V	300V	300V
Current - IEC	8A	8A	—	17.5A	17.5A	—	—
Voltage - IEC	250V	250V	—	320V	320V	—	—
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
RoHS Status	RoHS Compliant	ROHS3 Compliant	ROHS3 Compliant	RoHS Compliant	RoHS Compliant	ROHS3 Compliant	ROHS3 Compliant
Contact Mating Finish	Tin	Tin	Tin	Tin	Tin	Tin	Tin
Housing Material	Polyamide (PA), Nylon, Glass Filled	Polybutylene Terephthalate (PBT)	Polyamide (PA66), Nylon 6/6	Liquid Crystal Polymer (LCP), Glass Filled	Liquid Crystal Polymer (LCP), Glass Filled	Thermoplastic	Thermoplastic
Contact Tail Length	0.134" (3.40mm)	0.134" (3.40mm)	0.138" (4.60mm)	0.059" (1.50mm)	0.126" (3.20mm)	0.138" (4.60mm)	0.138" (4.60mm)
Insulation Height	0.285" (7.25mm)	0.285" (7.25mm)	0.270" (6.86mm)	0.278" (7.06mm)	0.278" (7.06mm)	0.283" (7.19mm)	0.138" (4.60mm)
Operating Temperature	—	—	-40°C ~ 105°C	-50°C ~ 120°C	-50°C ~ 120°C	-40°C ~ 115°C	-30°C ~ 105°C
Ingress Protection	—	—	—	IP20	IP20	—	—
MSL Rating	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)

Engineering Selection Recommendations

Primary Recommendation: Phoenix Contact 1827897

The 1827897 is the direct active-status equivalent within the same COMBICON MC series. It maintains identical electrical specifications (8A UL, 300V UL), mechanical configuration, and contact geometry. The housing material transition from PA to PBT provides improved chemical resistance and dimensional stability. ROHS3 compliance ensures current regulatory alignment. This part is the preferred substitution path for existing 1908907 designs.

Secondary Recommendation: Weidmüller 1862600000 or 1863700000

The Omnimate SC series parts exceed the electrical requirements of the original design (17.5A IEC, 320V IEC vs. 8A IEC, 250V IEC) and provide IP20 ingress protection. These parts are suitable for applications requiring enhanced environmental robustness. The 1862600000 features a shorter contact tail (0.059" / 1.50mm), while the 1863700000 provides a contact tail length (0.126" / 3.20mm) closer to the original specification. Both maintain RoHS compliance and UL94 V-0 flammability rating.

Tertiary Recommendation: Molex 0395166005

The Eurostyle ESE 39516 series part meets all core electrical and mechanical requirements with an extended operating temperature range (-40°C to 105°C). ROHS3 compliance and UL94 V-0 rating are confirmed. The contact tail length (0.138" / 4.60mm) and insulation height (0.270" / 6.86mm) differ slightly from the original; PCB layout verification is required.

Alternative Options: Amphenol Anytek OQ0535510000G and On Shore Technology OSTOQ053551

Both parts satisfy the fundamental substitution criteria with 5-position, 3.81mm pitch, 90° right-angle configuration and UL94 V-0 compliance. The Amphenol part offers extended operating temperature (-40°C to 115°C) and ROHS3 compliance. The On Shore Technology part provides ROHS3 compliance with brass contact material. Dimensional variations in contact tail length and insulation height require design verification.

Frequently Asked Questions (FAQ)

Q: Can I substitute the Phoenix Contact 1908907 with any of these parts directly?

A: Direct substitution depends on PCB layout and mechanical constraints. All listed parts share the same 5-position, 3.81mm pitch, 90° right-angle configuration and meet minimum electrical requirements (8A UL, 300V UL). However, variations in contact tail length (0.059" to 0.138") and insulation height (0.138" to 0.285") require verification against your PCB design. The Phoenix Contact 1827897 provides the closest dimensional match.

Q: What are the key electrical compatibility criteria?

A: All substitute parts meet or exceed the original 8A (UL) and 300V (UL) ratings. The Weidmüller parts (1862600000, 1863700000) provide significantly higher capacity (10A UL, 17.5A IEC, 320V IEC). For applications operating at or near the original 8A specification, any listed part is electrically compatible. For designs with margin requirements, the Weidmüller options provide additional headroom.

Q: Are there packaging or availability differences?

A: All substitute parts are available in bulk packaging. Inventory levels vary: Phoenix Contact 1827897 (1403 pcs), Molex 0395166005 (2429 pcs), Weidmüller 1862600000 (679 pcs), Weidmüller 1863700000 (1007 pcs), Amphenol Anytek OQ0535510000G (1051 pcs), and On Shore Technology OSTOQ053551 (1000 pcs). The original 1908907 has 937 pcs in stock but is obsolete.

Q: What compliance certifications apply to these substitutes?

A: All parts carry UL94 V-0 flammability rating and RoHS compliance (either RoHS or ROHS3). The Weidmüller parts provide additional IP20 ingress protection. REACH compliance status varies: Phoenix Contact and Weidmüller parts are REACH Unaffected; Molex 0395166005 is REACH Affected; Amphenol and On Shore Technology parts are REACH Unaffected.

Q: Do operating temperature ranges affect substitution decisions?

A: The original 1908907 does not specify an operating temperature range. Substitute parts range from -30°C to 120°C. For applications with defined temperature requirements, select parts with operating ranges that encompass your specification. The Weidmüller parts (-50°C to 120°C) and Amphenol part (-40°C to 115°C) provide the widest coverage.

Q: What is the difference between the two Weidmüller options (1862600000 vs. 1863700000)?

A: Both are Omnimate SC series parts with identical electrical ratings, flammability, and compliance certifications. The primary difference is contact tail length: 1862600000 features 0.059" (1.50mm), while 1863700000 features 0.126" (3.20mm). The 1863700000 contact tail length is closer to the original 0.134" (3.40mm) specification and is recommended for direct PCB substitution.
