TE Connectivity 1903015-3 HDMI Receptacle Connector Equivalent & Substitute Parts

Part Overview

The TE Connectivity AMP Connectors 1903015-3 is an HDMI receptacle connector with 19 positions, designed for panel mount applications with right-angle surface mount and through-hole termination options. This connector features a horizontal flange mounting configuration and gold-plated contacts on a phosphor bronze shell.

The 1903015-3 is classified as obsolete product status. Identifying equivalent and substitute parts is necessary to ensure design continuity, maintain supply chain reliability, and support ongoing production or repair requirements for systems utilizing this connector type.

Substiute Parts

1903015-3

TE Connectivity AMP ConnectorsIn Stock: 9591903015-3 Datasheet

Current PartRFQ

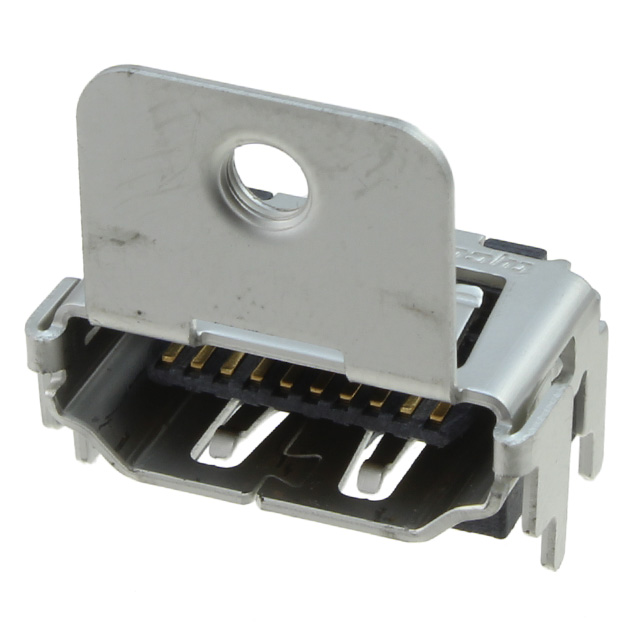

5-1903015-3

TE Connectivity AMP ConnectorsIn Stock: 9985-1903015-3 Datasheet

Parametric EquivalentRFQ

9-1903015-3

TE Connectivity AMP ConnectorsIn Stock: 7499-1903015-3 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the 1903015-3 are identified based on strict parametric equivalence across all electrical and mechanical specifications. The substitution logic is based on the following critical parameters that must remain constant:

• Connector Type: HDMI (19-position standard)
• Gender: Receptacle
• Mounting Configuration: Panel Mount with right-angle surface mount and through-hole termination capability
• Mounting Feature: Flange, Horizontal orientation
• Electrical Ratings: 0.5A current, 40VAC voltage, 10000 mating cycles
• Contact Material: Gold finish on phosphor bronze shell
• Environmental Compliance: UL94 V-0 flammability rating, MSL 1
• Operating Temperature: -25°C ~ 70°C

All substitute parts listed maintain identical electrical performance, mechanical form factor, and environmental specifications. Differences in product status and RoHS compliance status are noted but do not affect functional interchangeability within the specified parameter set.

Parameter Comparison

Engineering Selection Recommendations

Primary Substitute: 5-1903015-3

The 5-1903015-3 is the recommended substitute for the obsolete 1903015-3. This part maintains complete parametric equivalence across all electrical and mechanical specifications. The 5-1903015-3 carries active product status, ensuring ongoing availability and supply chain support. Current inventory of 889 pieces is available. This part is suitable for direct replacement in all applications where the 1903015-3 was originally specified.

Secondary Substitute: 9-1903015-3

The 9-1903015-3 provides an alternative substitute option with identical electrical and mechanical characteristics. This part also carries active product status with 722 pieces in current inventory. The 9-1903015-3 is RoHS Compliant, which may be advantageous for applications subject to RoHS regulatory requirements. This part is suitable for direct replacement in all applications where the 1903015-3 was originally specified.

Both substitute parts are manufactured by TE Connectivity AMP Connectors and share the same base product number (1903015), confirming their design equivalence to the original 1903015-3 connector.

Frequently Asked Questions (FAQ)

Q: Can the 5-1903015-3 or 9-1903015-3 be used as direct replacements for the 1903015-3?

A: Yes. Both substitute parts maintain identical electrical ratings (0.5A, 40VAC), mechanical mounting configuration (panel mount, right-angle, through-hole), contact specifications (gold finish, phosphor bronze shell), and environmental ratings (UL94 V-0, MSL 1). They are functionally interchangeable with the 1903015-3 in all applications.

Q: What is the difference between the 5-1903015-3 and 9-1903015-3?

A: Both parts are parametrically equivalent. The primary differences are product status (both active) and RoHS compliance status. The 9-1903015-3 is explicitly RoHS Compliant, while the 5-1903015-3 lists RoHS status as not applicable. Inventory levels also differ: 889 pieces for 5-1903015-3 and 722 pieces for 9-1903015-3.

Q: Why is the original 1903015-3 marked as obsolete?

A: The 1903015-3 has been discontinued by the manufacturer. The substitute parts 5-1903015-3 and 9-1903015-3 represent the current active product offerings that maintain full compatibility with the original design specifications.

Q: Are there any differences in the mounting feature between these parts?

A: No. All three parts feature identical mounting configurations: panel mount with horizontal flange, right-angle surface mount, and through-hole termination options. The solder termination method is consistent across all variants.

Q: What is the operating temperature range for these connectors?

A: All three parts operate within the range of -25°C to 70°C. This specification is identical across the 1903015-3, 5-1903015-3, and 9-1903015-3.

Q: Do these connectors require any special handling or storage considerations?

A: All parts carry Moisture Sensitivity Level 1 (Unlimited), indicating no special moisture control requirements during storage or handling. Standard component storage practices are sufficient.

Q: What is the mating cycle rating for these HDMI receptacle connectors?

A: All three parts are rated for 10000 mating cycles, providing consistent mechanical durability across the product line.
