Phoenix Contact 1899692 Terminal Block Header - Equivalent & Substitute Parts

Part Overview

The Phoenix Contact 1899692 is a 10-position terminal block header with male pins, shrouded design, and 0.200" (5.08mm) pitch spacing. This component features press-fit termination, right-angle through-hole mounting, and is part of the COMBICON EMSTB series. The part is currently obsolete, making identification of functionally equivalent alternatives essential for ongoing system maintenance and new design implementations. Substitute parts must maintain electrical ratings, mechanical compatibility, and mounting characteristics to ensure direct interchangeability in existing applications.

Substiute Parts

1899692

Phoenix ContactIn Stock: 8731899692 Datasheet

Current PartRFQ

1776582

Phoenix ContactIn Stock: 12641776582 Datasheet

SimilarRFQ

1792708

Phoenix ContactIn Stock: 9241792708 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the Phoenix Contact 1899692 is determined by the following critical parameters:

Mandatory Matching Parameters:

• Manufacturer: Phoenix Contact
• Number of Positions: 10
• Pitch: 0.200" (5.08mm)
• Header Orientation: 90°, Right Angle
• Mounting Type: Through Hole
• Type: Header, Male Pins, Shrouded (4 Side)
• Current - IEC: 12A minimum
• Voltage - IEC: 400V minimum
• Material Flammability Rating: UL94 V-0
• Contact Mating Finish: Tin

Allowable Variations:

• Termination Style: Press-fit or Solder acceptable
• Series designation: Different COMBICON series permitted
• Product Status: Active status preferred for new applications
• Housing Material: PBT or LCP acceptable
• Contact Tail Length: Minor variations permitted within mechanical envelope
• Color: Green or Black acceptable
• RoHS Compliance: RoHS or ROHS3 acceptable

The two identified substitutes (1776582 and 1792708) meet all mandatory parameters while offering active product status and improved compliance certifications compared to the obsolete main part.

Parameter Comparison

Engineering Selection Recommendations

For Replacement of Obsolete 1899692:

Both substitute parts (1776582 and 1792708) provide active product status with current manufacturing support. Selection between them depends on application-specific requirements:

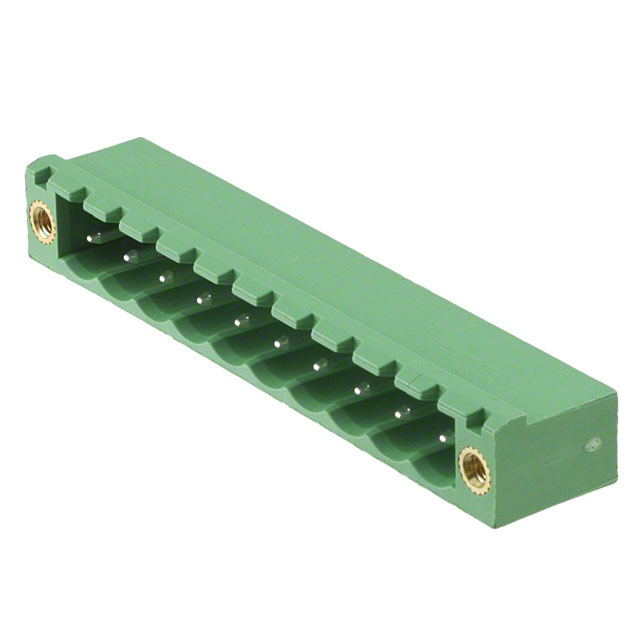

Phoenix Contact 1776582 (COMBICON MSTB Series):

• Maintains identical electrical ratings (12A IEC, 15A UL)
• Preserves green color and PBT housing material of original design
• Solder termination replaces press-fit, requiring PCB design modification
• ROHS3 compliance provides enhanced regulatory coverage
• Shorter contact tail (0.138" vs 0.165") requires PCB footprint verification

Phoenix Contact 1792708 (COMBICON CC Series):

• Meets IEC electrical requirements (12A, 400V)
• UL current rating reduced to 10A (below original 15A specification)
• LCP housing material offers improved thermal and chemical resistance
• Black color differs from original green designation
• Shortest contact tail (0.102") requires most significant PCB footprint adjustment

Both parts maintain UL94 V-0 flammability rating, tin contact finish, and unlimited moisture sensitivity level. Termination style change from press-fit to solder requires assembly process modification and PCB design updates for either substitute.

Frequently Asked Questions (FAQ)

Q: Can Phoenix Contact 1776582 directly replace 1899692 without PCB modification?

A: Electrical and mechanical compatibility is established. However, termination style differs (solder vs. press-fit), requiring PCB design changes. Contact tail length reduction (0.165" to 0.138") may require footprint adjustment depending on original PCB layout.

Q: What is the primary difference between 1776582 and 1792708?

A: Both maintain 10-position, 5.08mm pitch, right-angle through-hole configuration. Key differences include: 1776582 retains green color and PBT housing with full 15A UL rating; 1792708 uses black color, LCP housing, and reduced 10A UL rating. Contact tail lengths differ (0.138" vs. 0.102"), affecting PCB footprint requirements.

Q: Is the 1792708 suitable for applications requiring 15A UL current rating?

A: No. The 1792708 is rated for 10A UL current, below the original 1899692 specification of 15A UL. Applications requiring 15A UL rating must use 1776582 or confirm that actual circuit current does not exceed 10A.

Q: Do all three parts meet RoHS compliance requirements?

A: Yes. The 1899692 is RoHS Compliant. The 1776582 is ROHS3 Compliant (enhanced standard). The 1792708 is RoHS Compliant. All three meet RoHS requirements for new designs and applications.

Q: What assembly process changes are required when switching from 1899692 to either substitute?

A: The original 1899692 uses press-fit termination, while both 1776582 and 1792708 require solder termination. This necessitates transition from press-fit assembly equipment to standard PCB soldering processes. Contact tail length variations may require PCB footprint redesign.

Q: Are there inventory considerations for these substitutes?

A: Current inventory levels are: 1776582 (1210 pcs), 1792708 (853 pcs), both in bulk packaging. The original 1899692 (768 pcs) is obsolete with no future manufacturing planned.
