Phoenix Contact 1897267 Terminal Block Header – Equivalent & Substitute Parts

Part Overview

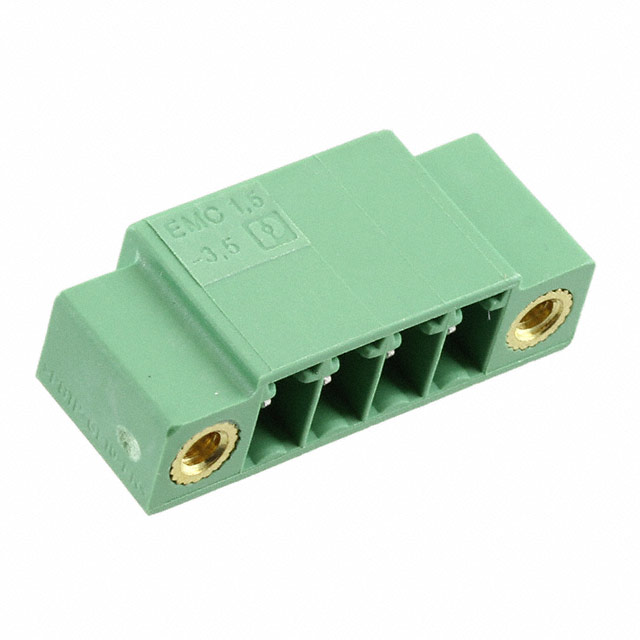

The Phoenix Contact 1897267 is a 4-position terminal block header with male pins, shrouded design, and 90° right-angle orientation. It features a 4.6mm pitch, press-fit termination, and through-hole mounting. This component is classified as obsolete, making identification of functionally equivalent alternatives essential for ongoing system support and procurement planning.

Key Parameters

Parameter	Value
Manufacturer Part Number	1897267
Manufacturer	Phoenix Contact
Category	Terminal Blocks
Series	COMBICON EMC
Number of Positions	4
Pitch	0.138" (4.60mm)
Header Orientation	90°, Right Angle
Type	Header, Male Pins, Shrouded (4 Side)
Termination Style	Press-Fit
Mounting Type	Through Hole
Current - IEC	8A
Voltage - IEC	250 V
Current - UL	8 A
Voltage - UL	300 V
Housing Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Product Status	Obsolete

Substitute Part Grouping Explanation

The Phoenix Contact 1843813 qualifies as a functional substitute for the 1897267 based on the following critical parameters:

Matching Parameters:

Number of positions: 4
Pitch: 0.138" (4.60mm)
Header orientation: 90°, Right Angle
Type: Header, Male Pins, Shrouded (4 Side)
Mounting type: Through Hole
Current rating (IEC): 8A
Voltage rating (IEC): 250 V
Current rating (UL): 8 A
Voltage rating (UL): 300 V
Housing material: Polybutylene Terephthalate (PBT)
Material flammability rating: UL94 V-0
Contact mating finish: Tin
Features: Mating and Mounting Flange

Differing Parameters:

Termination style: Press-Fit (1897267) vs. Solder (1843813)
Series: COMBICON EMC (1897267) vs. COMBICON MC (1843813)
Product status: Obsolete (1897267) vs. Active (1843813)
Contact tail length: 0.138" (4.60mm) vs. 0.134" (3.40mm)
Insulation height: 0.276" (7.00mm) vs. 0.285" (7.25mm)
Packaging: Not specified (1897267) vs. Bulk (1843813)
RoHS status: RoHS Compliant vs. ROHS3 Compliant

Parameter Comparison

Parameter	1897267 (Main Part)	1843813 (Substitute)
Manufacturer	Phoenix Contact	Phoenix Contact
Number of Positions	4	4
Pitch	0.138" (4.60mm)	0.138" (4.60mm)
Header Orientation	90°, Right Angle	90°, Right Angle
Type	Header, Male Pins, Shrouded (4 Side)	Header, Male Pins, Shrouded (4 Side)
Termination Style	Press-Fit	Solder
Mounting Type	Through Hole	Through Hole
Current - IEC	8A	8A
Voltage - IEC	250 V	250 V
Current - UL	8 A	8 A
Voltage - UL	300 V	300 V
Housing Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0	UL94 V-0
Contact Mating Finish	Tin	Tin
Features	Mating and Mounting Flange	Mating and Mounting Flange
RoHS Status	RoHS Compliant	ROHS3 Compliant
Product Status	Obsolete	Active
Contact Tail Length	0.138" (4.60mm)	0.134" (3.40mm)
Insulation Height	0.276" (7.00mm)	0.285" (7.25mm)

Engineering Selection Recommendations

The Phoenix Contact 1843813 is the designated substitute for the obsolete 1897267. Both components maintain identical electrical ratings (8A at 250V IEC, 8A at 300V UL) and mechanical compatibility through matching pitch, position count, and shrouded header design.

The primary distinction is termination methodology: the 1897267 uses press-fit termination, while the 1843813 requires solder attachment. This difference necessitates PCB design modification and assembly process adjustment. The 1843813 is currently in active production status with ROHS3 compliance, ensuring long-term availability and regulatory alignment. Minor dimensional variations in contact tail length (0.004" difference) and insulation height (0.009" difference) fall within acceptable tolerance ranges for standard through-hole applications.

Frequently Asked Questions (FAQ)

Q: Can the 1843813 directly replace the 1897267 without PCB modification?

A: No. The 1897267 uses press-fit termination for direct PCB insertion, while the 1843813 requires solder attachment. PCB pad design and assembly process must be updated accordingly.

Q: Are the electrical ratings identical between these parts?

A: Yes. Both components are rated at 8A (IEC), 250V (IEC), 8A (UL), and 300V (UL). Electrical performance is equivalent.

Q: What is the significance of the contact tail length difference?

A: The 1897267 has a 0.138" (4.60mm) contact tail, while the 1843813 has a 0.134" (3.40mm) tail. This 0.004" difference is within standard PCB hole tolerance and does not affect functional compatibility for through-hole mounting.

Q: Does the insulation height difference impact mechanical fit?

A: The 1843813 insulation height is 0.009" greater than the 1897267. This minor difference does not affect standard mounting applications but should be considered in space-constrained designs.

Q: Why is the 1897267 listed as obsolete?

A: The 1897267 belongs to the COMBICON EMC series, which has been superseded by the active COMBICON MC series, represented by the 1843813.

Q: Is the 1843813 RoHS compliant?

A: Yes. The 1843813 carries ROHS3 compliance, meeting current regulatory requirements. The 1897267 is RoHS Compliant under the original directive.

Q: What packaging is available for the 1843813?

A: The 1843813 is supplied in bulk packaging, with 3200 pieces currently in stock.
