Phoenix Contact 1896941 Terminal Block Header – Equivalent & Substitute Parts

Part Overview

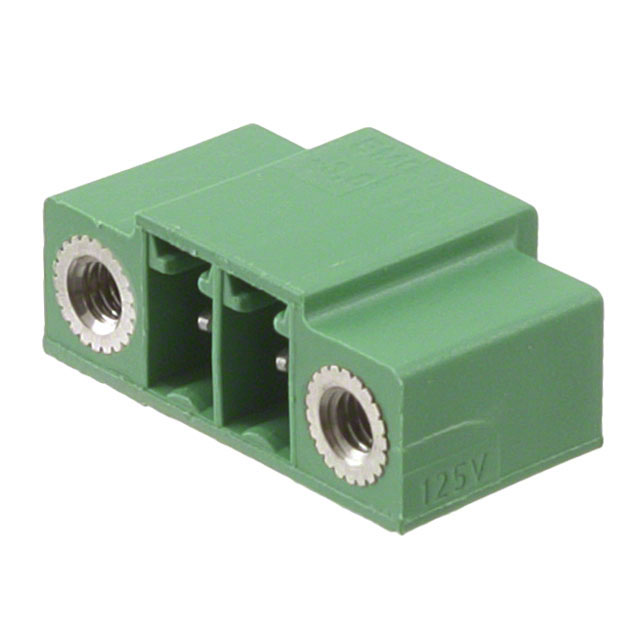

The Phoenix Contact 1896941 is a 2-position terminal block header with male pins, shrouded design, and 90° right-angle orientation. It features a 0.150" (3.81mm) pitch and press-fit termination for through-hole mounting. This component is classified as obsolete, making identification of active equivalent parts essential for ongoing procurement and system maintenance.

Substiute Parts

1896941

Phoenix ContactIn Stock: 11581896941 Datasheet

Current PartRFQ

1827868

Phoenix ContactIn Stock: 17531827868 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the Phoenix Contact 1896941 is determined by strict alignment of the following critical parameters:

• Electrical Specifications: Current rating (8A IEC/UL), voltage rating (250V IEC / 300V UL)
• Physical Configuration: 2-position count, 0.150" (3.81mm) pitch, 90° right-angle orientation, male pins with 4-side shrouding
• Mounting and Termination: Through-hole mounting type
• Material and Compliance: UL94 V-0 flammability rating, PBT housing material, RoHS compliance

The substitute part Phoenix Contact 1827868 meets all critical electrical and mechanical parameters. Differences in termination style (solder vs. press-fit) and series designation (COMBICON MC vs. COMBICON EMC) do not affect functional substitutability when electrical and positional requirements are met. The substitute part maintains active product status and current compliance certifications.

Parameter Comparison

Engineering Selection Recommendations

Phoenix Contact 1827868 is the qualified substitute for the obsolete 1896941 model. Both components share identical electrical ratings, physical positioning, and core mechanical specifications. The substitute maintains active product status and current compliance certifications (ROHS3 Compliant, REACH Unaffected), ensuring long-term availability and regulatory alignment.

The primary difference is termination method: the original uses press-fit technology, while the substitute employs solder termination. This distinction requires PCB design verification to confirm compatibility with existing through-hole pad layouts and assembly processes. Contact tail length and insulation height variations are minor and fall within standard manufacturing tolerances for this component class.

Frequently Asked Questions (FAQ)

Q: Can Phoenix Contact 1827868 directly replace 1896941 in existing designs?

A: Electrical and mechanical compatibility is confirmed across all critical parameters. However, termination method differs (solder vs. press-fit), requiring verification that PCB pad specifications and assembly equipment support solder termination. Contact tail length and insulation height show minor variations that typically do not affect functionality.

Q: What is the significance of the series change from COMBICON EMC to COMBICON MC?

A: Series designation reflects product line evolution within Phoenix Contact's terminal block portfolio. Both series maintain identical electrical specifications, pitch, orientation, and shrouding configuration. The change does not impact functional substitutability.

Q: Are there compliance or regulatory differences between the two parts?

A: Both parts meet UL94 V-0 flammability requirements and maintain RoHS compliance. The substitute carries ROHS3 Compliant status and REACH Unaffected designation, representing current regulatory alignment. No compliance barriers exist for substitution.

Q: What inventory considerations apply to this substitution?

A: The original 1896941 is obsolete with 1076 units in stock. The substitute 1827868 is active with 1741 units available, providing assured long-term procurement viability.

Q: How do the physical dimension differences affect board layout?

A: Contact tail length differs by 0.004" (0.10mm) and insulation height by 0.009" (0.25mm). These variations are within standard tolerances for through-hole terminal block applications and do not typically require PCB redesign.
