Phoenix Contact 1879285 Terminal Block Header - Equivalent & Substitute Parts

Part Overview

The Phoenix Contact 1879285 is a 2-position terminal block header with male pins, featuring a shrouded 4-side design and 0.150" (3.81mm) vertical pitch. This component is classified as obsolete, making identification of suitable substitute parts essential for ongoing system maintenance and new design implementations. The part operates at 8A (IEC/UL) and 250V (IEC) / 300V (UL), with press-fit termination and through-hole mounting. Given its obsolete status, the 1830596 represents the active equivalent in the Phoenix Contact COMBICON series.

Substiute Parts

1879285

Phoenix ContactIn Stock: 10991879285 Datasheet

Current PartRFQ

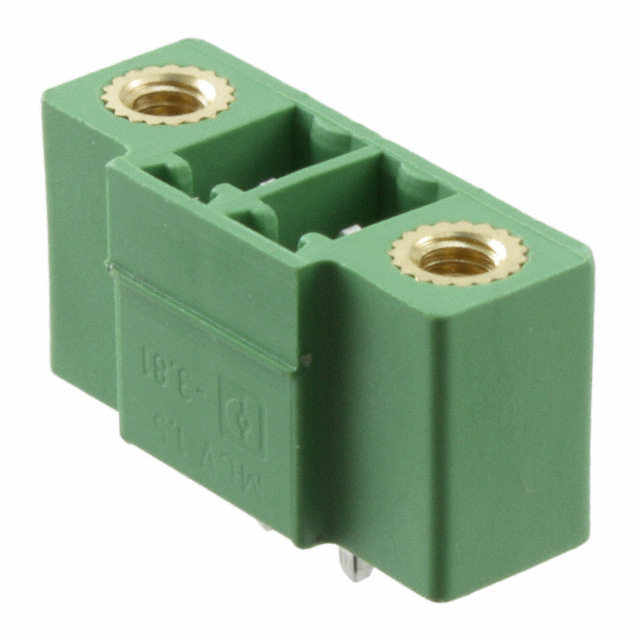

1830596

Phoenix ContactIn Stock: 18471830596 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution between the 1879285 and 1830596 is based on matching the following critical parameters:

• Electrical Compatibility: Both parts maintain identical current (8A IEC/UL) and voltage ratings (250V IEC / 300V UL)
• Physical Compatibility: Both feature 2 positions, 0.150" (3.81mm) pitch, vertical orientation, and shrouded 4-side male pin headers
• Mounting Compatibility: Both use through-hole mounting with mating and mounting flanges
• Material and Safety Compliance: Both utilize PBT housing with UL94 V-0 flammability rating and tin contact mating finish

The primary difference lies in termination style: the 1879285 uses press-fit termination, while the 1830596 uses solder termination. This distinction affects PCB assembly methodology but does not impact electrical or mechanical interface compatibility.

Parameter Comparison

Engineering Selection Recommendations

The 1830596 is the direct active equivalent for the obsolete 1879285. Both parts satisfy identical electrical and mechanical interface requirements within the COMBICON terminal block family.

For new designs or replacement applications: The 1830596 is the appropriate selection, as it maintains active product status and current manufacturing support from Phoenix Contact. The solder termination method is standard in modern PCB assembly processes.

For legacy system maintenance: The 1879285 remains functionally equivalent if existing inventory is available. The press-fit termination characteristic does not affect electrical performance or mechanical interface compatibility with mating connectors.

Compliance considerations: The 1830596 carries ROHS3 compliance status, representing current regulatory alignment. Both parts maintain UL94 V-0 flammability certification and EAR99 export classification.

Frequently Asked Questions (FAQ)

Q: Can the 1830596 directly replace the 1879285 in existing PCB designs?

A: Yes. Both parts maintain identical pitch (0.150" / 3.81mm), position count (2), orientation (vertical), and electrical ratings (8A / 250V IEC). The primary difference is termination method: press-fit versus solder. PCB footprints designed for the 1879285 will accommodate the 1830596, though assembly methodology must align with solder termination requirements.

Q: What is the significance of the contact tail length difference (0.150" vs. 0.138")?

A: The contact tail length variation reflects design differences between the EMCV and MCV series within the COMBICON family. Both lengths are compatible with standard through-hole PCB mounting. Verify PCB hole depth specifications to confirm accommodation of the 0.138" tail length in the 1830596.

Q: Are there any electrical performance differences between these parts?

A: No. Both parts maintain identical current (8A IEC/UL) and voltage ratings (250V IEC / 300V UL). Electrical performance is equivalent across all specified operating parameters.

Q: Why is the 1879285 classified as obsolete?

A: The 1879285 (COMBICON EMCV series) has been superseded by the 1830596 (COMBICON MCV series) in Phoenix Contact's active product portfolio. The newer series reflects current manufacturing standards and regulatory compliance requirements.

Q: Does the RoHS compliance difference affect substitution suitability?

A: No. Both parts are RoHS compliant. The 1830596 carries ROHS3 designation, representing alignment with current regulatory frameworks. This does not impact functional or mechanical compatibility.

Q: What packaging considerations apply to these parts?

A: The 1879285 is supplied in standard packaging (packaging type not specified). The 1830596 is supplied in bulk packaging. Verify procurement quantities and handling requirements based on assembly workflow specifications.
