Equivalent & Substitute Parts for VCC 1869 Incandescent Lamp

Part Overview

The VCC 1869 is an incandescent lamp with a clear lens, round domed top design, and wire terminal configuration rated for 10V operation. This component is classified as obsolete, which necessitates identification of active equivalent parts for ongoing system support and procurement planning. The lamp is designed for applications requiring low-voltage incandescent illumination with specific optical and electrical characteristics.

Substiute Parts

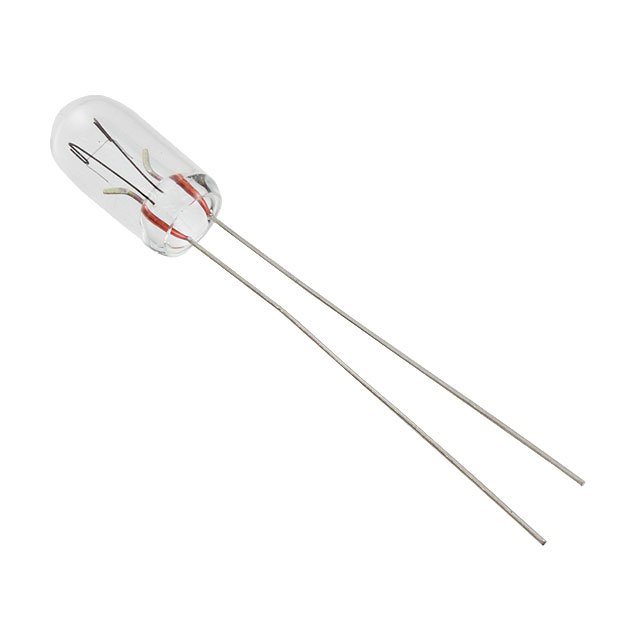

1869

Visual Communications Company - VCCIn Stock: 8361869 Datasheet

Current PartRFQ

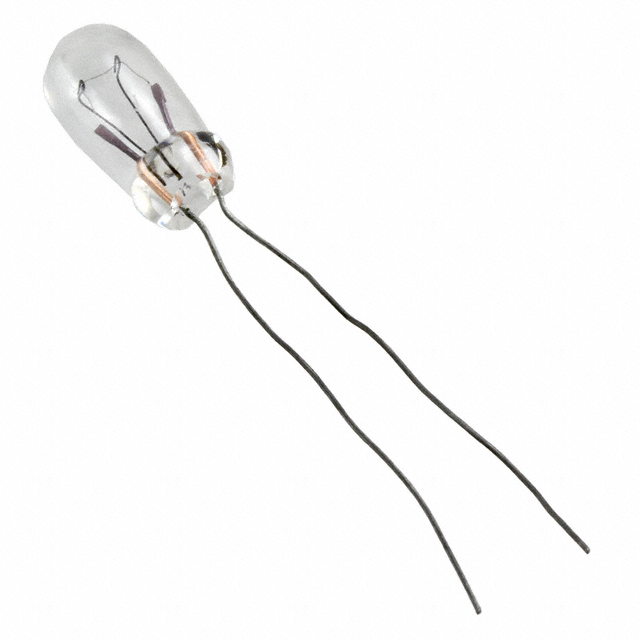

1869

JKL Components Corp.In Stock: 9781869 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the VCC 1869 is determined by strict alignment with the following critical parameters:

Mandatory Matching Parameters:

• Voltage Rating: 10V
• Lamp Type: Incandescent
• Color: Clear
• Lens Style: Round with Domed Top
• Lens Size: RT-1 3/4
• Lead Style: Wire Terminal
• RoHS Compliance: ROHS3 Compliant

Functional Parameters:

• MSCP (Mean Spherical Candle Power) must be within the operational range of the original design

The JKL Components Corp. part number 1869 meets all mandatory matching parameters and maintains regulatory compliance. This part is classified as active, providing long-term availability for replacement and new procurement applications.

Parameter Comparison

Engineering Selection Recommendations

The JKL Components Corp. part number 1869 is the qualified substitute for the obsolete VCC 1869 incandescent lamp. Selection is based on the following engineering criteria:

Compliance and Regulatory Status:

• Both parts maintain ROHS3 compliance, ensuring environmental regulatory alignment
• Both parts are REACH unaffected, confirming chemical substance compliance
• Identical ECCN and HTSUS classifications confirm trade compliance equivalence

Electrical and Optical Compatibility:

• Voltage rating, lamp type, color, and lead style are identical
• Mechanical form factor (lens style and size) ensures direct physical compatibility
• MSCP specification of the substitute (0.004) is higher than the original (0.002), indicating increased luminous intensity within the same form factor

Availability and Product Status:

• The substitute part is active with confirmed inventory (911 pcs), providing long-term procurement reliability
• The original part is obsolete, making the substitute the appropriate selection for ongoing applications

The JKL Components 1869 lamp is suitable for direct replacement in applications currently using the VCC 1869 without modification to circuit design, mechanical mounting, or electrical connections.

Frequently Asked Questions (FAQ)

Q: Can the JKL Components 1869 be used as a direct replacement for the VCC 1869?

A: Yes. Both parts share identical voltage rating (10V), lamp type (incandescent), color (clear), lens configuration (round domed top, RT-1 3/4), lead style (wire terminal), and regulatory compliance (ROHS3, REACH unaffected). Direct substitution is supported without circuit or mechanical modification.

Q: What is the difference in MSCP between the two parts?

A: The VCC 1869 has an MSCP of 0.002, while the JKL Components 1869 has an MSCP of 0.004. This indicates the substitute produces twice the luminous intensity. Applications requiring the original lower intensity specification should evaluate whether increased brightness is acceptable for the intended use.

Q: Why is the VCC 1869 listed as obsolete?

A: Obsolete status indicates the part is no longer manufactured by the original supplier. The JKL Components equivalent ensures continued availability for systems requiring this lamp specification.

Q: Are there packaging differences between the two parts?

A: The VCC 1869 packaging is listed as unspecified, while the JKL Components 1869 is packaged in boxes. Both parts maintain identical electrical and mechanical specifications. Packaging differences do not affect functional compatibility.

Q: What certifications apply to both parts?

A: Both parts are ROHS3 compliant, REACH unaffected, classified under ECCN EAR99, and share the same HTSUS code (8539.29.3060). Regulatory and trade compliance are equivalent.

Q: Is the wire terminal lead style identical on both parts?

A: Yes. Both the VCC 1869 and JKL Components 1869 use wire terminal lead style, ensuring electrical connection compatibility without adapter requirements.
