TE Connectivity 1-86177-2 Rectangular Connector Housing – Equivalent & Substitute Parts

Part Overview

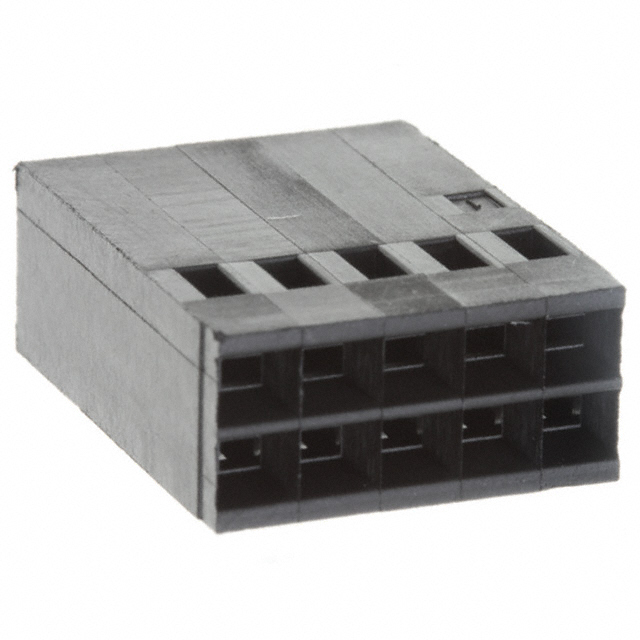

The TE Connectivity 1-86177-2 is a 10-position rectangular connector receptacle housing designed for 0.100" (2.54mm) pitch applications. This component is part of the AMPMODU Mod IV series and serves as the housing structure for female socket contacts in free-hanging, in-line configurations. The part is Active in product status with 980 units currently in stock.

Substitute parts are identified when equivalent electrical and mechanical parameters are required for design flexibility, supply chain optimization, or when the primary part becomes unavailable. Substitution is determined by matching critical parameters including connector type, contact type, number of positions, pitch, row configuration, mounting type, contact termination method, operating temperature range, and compliance certifications.

Key Parameters

Parameter	Value
Manufacturer Part Number	1-86177-2
Manufacturer	TE Connectivity AMP Connectors
Category	Rectangular Connectors
Series	AMPMODU Mod IV
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	10
Pitch	0.100" (2.54mm)
Number of Rows	2
Row Spacing	0.100" (2.54mm)
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Color	Black
Operating Temperature Range	-65°C ~ 105°C
RoHS Status	RoHS Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Product Status	Active

Substitute Part Grouping Explanation

Substitute parts for the 1-86177-2 are grouped based on strict parametric equivalence across the following critical criteria:

Mandatory Matching Parameters:

Connector Type: Receptacle
Contact Type: Female Socket
Number of Positions: 10
Pitch: 0.100" (2.54mm)
Number of Rows: 2
Row Spacing: 0.100" (2.54mm)
Mounting Type: Free Hanging (In-Line)
Contact Termination: Crimp
RoHS Compliance: RoHS Compliant
MSL Rating: 1 (Unlimited)

Variable Parameters Allowing Substitution:

Insulation Material (Thermoplastic, Polyamide/Nylon Glass Filled, Polyphenylene, Polyphenylene Oxide)
Operating Temperature Range (within or exceeding -65°C ~ 105°C)
Color (Black or Blue)
Manufacturer (TE Connectivity, Amphenol ICC/FCI, Molex)
Series designation

All identified substitute parts maintain electrical and mechanical compatibility with the primary part while offering alternatives in material composition, temperature performance, or supply availability.

Parameter Comparison

Parameter	1-86177-2	87456-5	87456-6	87977-3	69176-010LF	0901430010	65239-005LF
Manufacturer	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity	Amphenol ICC (FCI)	Molex	Amphenol ICC (FCI)
Series	AMPMODU Mod IV	AMPMODU Mod IV	AMPMODU Mod IV	AMPMODU Mod IV	Mini-PV™, Basics+	C-Grid III 90143	DUBOX™, MezzSelect™, Basics+
Connector Type	Receptacle	Receptacle	Receptacle	Receptacle	Receptacle	Receptacle	Receptacle
Contact Type	Female Socket	Female Socket	Female Socket	Female Socket	Female Socket	Female Socket	Female Socket
Number of Positions	10	10	10	10	10	10	10
Pitch	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Number of Rows	2	2	2	2	2	2	2
Row Spacing	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)
Contact Termination	Crimp	Crimp	Crimp	Crimp	Crimp	Crimp	Crimp
Color	Black	Black	Black	Black	Black	Black	Blue
Insulation Material	Thermoplastic	Polyamide (PA), Nylon, Glass Filled	Polyamide (PA), Nylon, Glass Filled	Thermoplastic	Polyphenylene, Modified	Polyphenylene Oxide (PPO)	Thermoplastic, Glass Filled
Operating Temperature Range	-65°C ~ 105°C	-65°C ~ 105°C	-65°C ~ 105°C	-65°C ~ 105°C	-40°C ~ 105°C	-55°C ~ 105°C	-65°C ~ 125°C
RoHS Status	RoHS Compliant	RoHS Compliant	RoHS Compliant	RoHS Compliant	RoHS Compliant	ROHS3 Compliant	RoHS Compliant
MSL Rating	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)
Product Status	Active	Active	Active	Active	Active	Active	Active
Current Inventory	980 Pcs	2305 Pcs	846 Pcs	4479 Pcs	530899 Pcs	11894 Pcs	3118 Pcs

Engineering Selection Recommendations

TE Connectivity AMPMODU Mod IV Series (87456-5, 87456-6, 87977-3): These parts maintain identical electrical and mechanical specifications to the primary 1-86177-2 part while offering increased inventory availability. Parts 87456-5 and 87456-6 utilize polyamide nylon glass-filled insulation material, providing enhanced mechanical strength compared to the thermoplastic material of 1-86177-2 and 87977-3. All three parts are RoHS Compliant and maintain the same operating temperature range. Selection among these three is determined by material preference and inventory requirements.

Amphenol ICC (FCI) Mini-PV™ Series (69176-010LF): This part meets all critical parametric requirements with the addition of a polarizing key feature. The operating temperature minimum is -40°C, which is within the application range of -65°C ~ 105°C for most industrial applications. Inventory availability is significantly higher at 530,899 units. REACH Status is listed as REACH Affected, requiring compliance verification for applications subject to REACH regulations.

Molex C-Grid III 90143 Series (0901430010): This part utilizes polyphenylene oxide (PPO) insulation material and operates across -55°C ~ 105°C, meeting the temperature requirements of the primary part. ROHS3 Compliant status indicates compliance with the latest RoHS directive. Inventory availability is 11,894 units. HTSUS classification differs from other parts (8536.69.8000 versus 8538.90.6000), which may affect tariff and import considerations.

Amphenol ICC DUBOX™ Series (65239-005LF): This part offers the widest operating temperature range at -65°C ~ 125°C and utilizes thermoplastic glass-filled insulation. The housing color is blue rather than black, which may affect visual identification in applications requiring color-coded connectors. REACH Status is listed as REACH Affected. This part is suitable for applications requiring extended high-temperature performance.

All substitute parts are Active in product status and maintain RoHS compliance with MSL Rating 1 (Unlimited), ensuring compatibility with standard manufacturing and storage conditions.

Frequently Asked Questions (FAQ)

Q: Can I substitute 87456-5 or 87456-6 for the 1-86177-2 without design changes?

A: Yes. Parts 87456-5 and 87456-6 are parametrically equivalent to 1-86177-2 across all critical electrical and mechanical specifications. The primary difference is insulation material composition (polyamide nylon glass-filled versus thermoplastic), which does not affect electrical performance or mechanical fit. Both parts are RoHS Compliant and operate across the same temperature range.

Q: What is the significance of the polarizing key feature in the 69176-010LF?

A: The polarizing key is a mechanical feature that prevents incorrect mating orientation. If the original 1-86177-2 design does not include a polarizing key, the 69176-010LF cannot be used as a direct substitute without mechanical redesign of the mating connector. Verify the presence or absence of polarizing features in the original design before substitution.

Q: Why does the 65239-005LF have a blue housing instead of black?

A: Housing color is a cosmetic and identification feature. The blue color does not affect electrical or mechanical performance. However, if the application requires black connectors for visual identification, assembly traceability, or design specification compliance, the 65239-005LF is not suitable without design approval.

Q: Are there temperature performance differences between the substitute parts?

A: Yes. The 1-86177-2 operates from -65°C ~ 105°C. The 69176-010LF operates from -40°C ~ 105°C (reduced low-temperature performance), the 0901430010 operates from -55°C ~ 105°C (reduced low-temperature performance), and the 65239-005LF operates from -65°C ~ 125°C (extended high-temperature performance). Select based on the actual operating temperature requirements of the application.

Q: What is the difference between RoHS Compliant and ROHS3 Compliant?

A: ROHS3 Compliant indicates compliance with the latest RoHS directive (Directive 2011/65/EU as amended by Directive 2015/863/EU), which includes restrictions on additional substances beyond the original RoHS directive. Both certifications indicate lead-free and hazardous substance compliance. ROHS3 is the current standard; RoHS Compliant may refer to earlier directive versions. Verify specific regulatory requirements for your application.

Q: What does REACH Affected versus REACH Unaffected mean?

A: REACH Affected indicates the part contains substances subject to REACH (Registration, Evaluation, Authorization and Restriction of Chemicals) regulations and may require additional compliance documentation. REACH Unaffected indicates the part does not contain regulated substances under REACH. Vendor Undefined indicates the manufacturer has not provided REACH status information. Verify REACH compliance requirements for your specific application and supply chain.

Q: Can I use the Molex 0901430010 as a direct replacement for the TE Connectivity 1-86177-2?

A: Yes, from an electrical and mechanical standpoint. The 0901430010 meets all critical parametric requirements. However, verify compatibility with your specific mating connector design, as different manufacturers may have slight dimensional variations. The different HTSUS classification (8536.69.8000 versus 8538.90.6000) may affect import duties and tariff treatment.

Q: Which substitute part has the highest inventory availability?

A: The Amphenol ICC 69176-010LF has the highest inventory at 530,899 units. If supply chain continuity is a primary concern, this part offers the greatest availability. However, verify the polarizing key feature compatibility before selection.

Q: Are contacts included with these connector housings?

A: No. All parts listed, including the primary 1-86177-2 and all substitutes, are housings only. Contacts are not included and must be ordered separately. Ensure the selected contact part number is compatible with the housing series.
