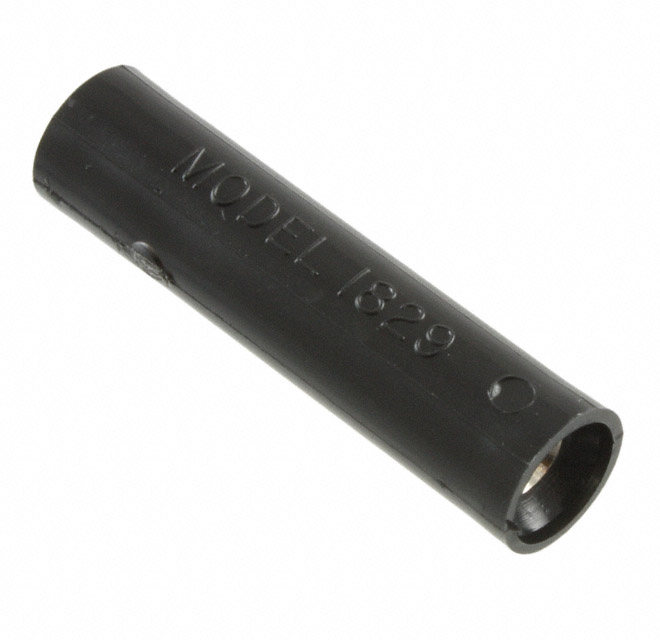

Pomona Electronics 1829-02 Adapter Splice to Banana Plug

Part Overview

The Pomona Electronics 1829-02 is an adapter connector that converts splice terminations to banana plug connections. This component is classified as obsolete, making equivalent substitute parts necessary for ongoing applications and maintenance requirements. The adapter supports 15 A current rating and operates within a 55°C temperature range, suitable for laboratory and test equipment applications.

Substiute Parts

1829-02

Pomona ElectronicsIn Stock: 10971829-02 Datasheet

Current PartRFQ

1829-0

Pomona ElectronicsIn Stock: 31961829-0 Datasheet

SimilarRFQ

1829-2

Pomona ElectronicsIn Stock: 17551829-2 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the 1829-02 are determined by the following critical parameters that must remain constant across all equivalent components:

• Connector type conversion: Splice to Banana Plug
• Current rating: 15 A
• Overall length: 1.500" (38.10 mm)
• Operating temperature: 55°C
• Electrical and mechanical compatibility: All parts maintain identical connector interface specifications
• Regulatory compliance: ROHS3 Compliant and REACH Unaffected status

The 1829-02 combines both black and red color variants in a single part number. Substitute parts 1829-0 and 1829-2 provide color-specific alternatives while maintaining all electrical and mechanical parameters. Both substitutes are manufactured by Pomona Electronics and carry active product status.

Parameter Comparison

Engineering Selection Recommendations

The 1829-02 is obsolete; however, direct functional equivalents exist in the active product line. Selection between 1829-0 and 1829-2 depends on color requirement:

• 1829-0: Black adapter connector. Recommended for applications requiring black termination identification or standard laboratory configurations.

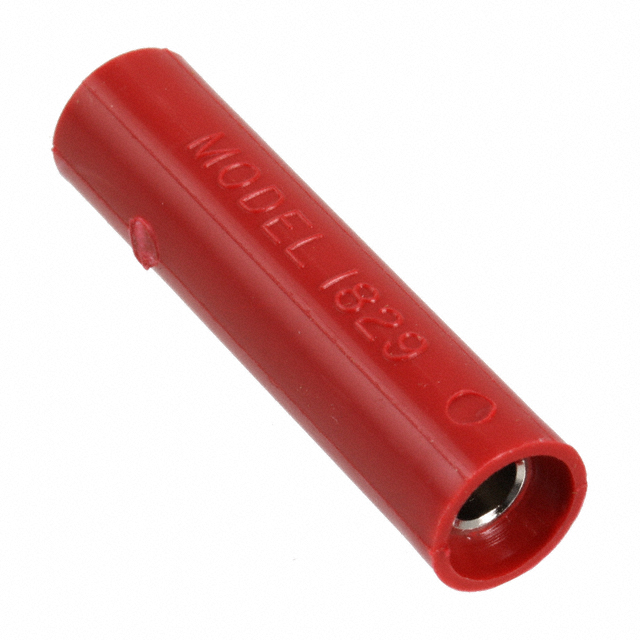

• 1829-2: Red adapter connector. Recommended for applications requiring red termination identification or standard laboratory configurations.

Both substitute parts maintain identical electrical specifications, mechanical dimensions, and regulatory compliance status. The transition from obsolete 1829-02 to either active substitute part presents no technical risk when color requirements are matched to application needs.

Frequently Asked Questions (FAQ)

Q: Can 1829-0 and 1829-2 be used interchangeably with 1829-02?

A: Yes, both parts are electrically and mechanically equivalent to 1829-02. Selection depends on color requirement. The 1829-02 includes both black and red variants; individual color selection requires choosing either 1829-0 (black) or 1829-2 (red).

Q: What is the difference between 1829-0 and 1829-2?

A: The only difference is connector color. 1829-0 is black; 1829-2 is red. All electrical parameters, mechanical dimensions, current ratings, and operating temperatures are identical.

Q: Are the substitute parts ROHS3 compliant?

A: Yes, both 1829-0 and 1829-2 are ROHS3 Compliant and REACH Unaffected, matching the compliance status of 1829-02.

Q: What is the current rating for these adapters?

A: All three part numbers (1829-02, 1829-0, 1829-2) are rated for 15 A continuous current.

Q: Does packaging differ between the main part and substitutes?

A: The 1829-02 packaging is unspecified in the provided data. Both 1829-0 and 1829-2 are supplied in bulk packaging.

Q: Can I use both colors in the same application?

A: Yes. Color selection is application-dependent. Use 1829-0 (black) and 1829-2 (red) according to your circuit identification or polarity marking requirements.
