TE Connectivity 1-828588-4 Equivalent & Substitute Parts

Part Overview

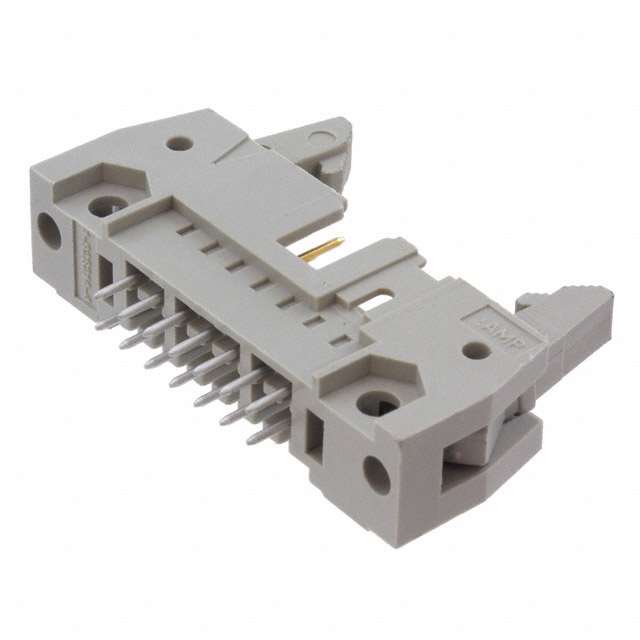

The TE Connectivity 1-828588-4 is a rectangular connector header designed for through-hole mounting applications. This connector features a vertical orientation with 14 positions arranged in 2 rows at 0.100" (2.54mm) pitch, utilizing shrouded 4-wall construction with latch lock/eject hook fastening. The part is classified as obsolete, necessitating identification of active equivalent and substitute components that maintain functional compatibility for board-to-cable/wire interconnection applications.

Key Parameters

Parameter	Value
Connector Type	Header
Contact Type	Male Pin
Number of Positions	14
Number of Rows	2
Pitch - Mating	0.100" (2.54mm)
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Through Hole
Termination	Solder
Shrouding	Shrouded - 4 Wall
Fastening Type	Latch Lock/Eject Hooks
Style	Board to Cable/Wire
Contact Shape	Circular
Insulation Material	Polyester, Glass Filled
Moisture Sensitivity Level	1 (Unlimited)

Substitute Part Grouping Explanation

Substitution of the TE Connectivity 1-828588-4 is determined by strict equivalence across the following critical parameters:

Primary Matching Criteria:

Connector type: Header
Contact type: Male Pin
Number of positions: 14
Number of rows: 2
Pitch - mating: 0.100" (2.54mm)
Row spacing - mating: 0.100" (2.54mm)
Mounting type: Through Hole
Termination: Solder
Shrouding: Shrouded - 4 Wall
Style: Board to Cable/Wire

Secondary Compatibility Factors:

Fastening type: Latch Lock/Eject Hooks (variations in hook length permitted)
Contact shape: Circular or Square (both acceptable for mechanical compatibility)
Insulation material: Polyester, Glass Filled or equivalent thermoplastic materials
Moisture Sensitivity Level: 1 (Unlimited)

Substitute parts identified in this reference maintain these core parameters while offering active product status and improved compliance certifications. Variations in contact length, insulation height, contact finish specifications, and operating temperature ranges do not preclude substitution when primary parameters align.

Parameter Comparison

Parameter	1-828588-4	5499160-2	301-LS-141	53611-S14-4LF	71980-114LF	D3314-6302-AR	N3314-6302RB	N3314-6303RB
Manufacturer	TE Connectivity AMP	TE Connectivity AMP	On Shore Technology	Amphenol ICC (FCI)	Amphenol ICC (FCI)	3M	3M	3M
Product Status	Obsolete	Active	Active	Active	Active	Active	Active	Active
Number of Positions	14	14	14	14	14	14	14	14
Number of Rows	2	2	2	2	2	2	2	2
Pitch - Mating	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Row Spacing - Mating	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Connector Type	Header	Header	Header	Header	Header	Header	Header	Header
Contact Type	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Termination	Solder	Solder	Solder	Solder	Kinked Pin, Solder	Solder	Solder	Solder
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall
Fastening Type	Latch Lock/Eject Hooks	Latch Lock/Eject Hooks, Short	Latch Lock/Eject Hooks, Long	Latch Lock/Eject Hooks	Latch Lock/Eject Hooks	Latch Lock/Eject Hooks, Long	Latch Lock/Eject Hooks, Long	Latch Lock/Eject Hooks, Long
Style	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire
Contact Shape	Circular	Square	Square	Square	Square	Square	Square	Square
Contact Length - Mating	0.246" (6.25mm)	0.240" (6.10mm)	0.228" (5.80mm)	0.230" (5.84mm)	0.228" (5.80mm)	0.240" (6.10mm)	0.240" (6.10mm)	0.240" (6.10mm)
Contact Length - Post	0.118" (3.00mm)	0.110" (2.79mm)	0.122" (3.10mm)	0.120" (3.05mm)	0.114" (2.90mm)	0.112" (2.84mm)	0.112" (2.84mm)	0.155" (3.94mm)
Overall Contact Length	0.652" (16.56mm)	0.639" (16.23mm)	0.630" (16.00mm)	Not Provided	Not Provided	0.652" (16.56mm)	0.652" (16.56mm)	0.695" (17.65mm)
Insulation Height	0.543" (13.80mm)	0.549" (13.94mm)	0.660" (16.76mm)	0.640" (16.26mm)	0.685" (17.40mm)	0.680" (17.27mm)	0.680" (17.27mm)	0.680" (17.27mm)
Contact Material	Brass	Not Provided	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Brass	Copper Alloy	Copper Alloy
Contact Finish - Mating	Gold or Gold-Palladium	Gold or Gold-Palladium	Gold	Gold or Gold, GXT™	Gold, GXT™	Gold	Gold	Gold
Contact Finish - Post	Tin	Tin	Not Provided	Tin	Tin	Tin	Tin	Tin
Insulation Material	Polyester, Glass Filled	Not Provided	Polybutylene Terephthalate (PBT)	Thermoplastic	Thermoplastic, Glass Filled	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Insulation Color	Gray	Black	Black	Black	Blue	Black	Black	Black
Operating Temperature	Not Provided	-55°C ~ 105°C	-55°C ~ 120°C	Not Provided	Not Provided	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C
Current Rating (Amps)	Not Provided	1A	2A	Not Provided	Not Provided	1.75A	1.75A	1.75A
Material Flammability Rating	Not Provided	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
RoHS Status	Not Applicable	ROHS3 Compliant	ROHS3 Compliant	RoHS Compliant	RoHS Compliant	RoHS Compliant	RoHS Compliant	RoHS Compliant
Moisture Sensitivity Level	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)
REACH Status	Vendor Undefined	REACH Unaffected	REACH Unaffected	REACH Affected	Not Provided	Not Provided	REACH Unaffected	REACH Unaffected

Engineering Selection Recommendations

All identified substitute parts maintain functional equivalence to the TE Connectivity 1-828588-4 across primary connector parameters. Selection among active alternatives is determined by compliance requirements and product availability:

TE Connectivity 5499160-2: Active status with ROHS3 compliance and REACH Unaffected designation. Operates within -55°C to 105°C temperature range with 1A current rating. Suitable for applications requiring TE Connectivity product continuity.

On Shore Technology 301-LS-141: Active status with ROHS3 compliance and REACH Unaffected designation. Operates within -55°C to 120°C temperature range with 2A current rating. Phosphor Bronze contact material with PBT insulation provides enhanced thermal performance.

Amphenol ICC 53611-S14-4LF: Active status with RoHS compliance and REACH Affected designation. Quickie™ series construction with phosphor bronze contacts and thermoplastic insulation. Suitable for applications where Amphenol ICC product qualification exists.

Amphenol ICC 71980-114LF: Active status with RoHS compliance. Quickie™ series with kinked pin termination and thermoplastic glass-filled insulation. Mounting flange feature provides mechanical stability. Suitable for applications requiring enhanced board retention.

3M D3314-6302-AR: Active status with RoHS compliance. D3000 series with 1.75A current rating and -55°C to 105°C operating range. Keying slot and mounting flange features. Suitable for applications requiring 3M product qualification.

3M N3314-6302RB: Active status with RoHS compliance and REACH Unaffected designation. 3000 series with 1.75A current rating and -55°C to 105°C operating range. Highest inventory availability (9191 units). Copper alloy contacts with enhanced post finish thickness (200.0µin). Suitable for high-volume applications.

3M N3314-6303RB: Active status with RoHS compliance and REACH Unaffected designation. 3000 series with extended contact post length (0.155" / 3.94mm) and 1.75A current rating. Suitable for applications requiring deeper board penetration or extended solder joint engagement.

Frequently Asked Questions (FAQ)

Q: What are the critical parameters that determine if a part can substitute for the TE Connectivity 1-828588-4?

A: The following parameters must match exactly: 14-position header connector, 2-row configuration, 0.100" (2.54mm) mating pitch, 0.100" (2.54mm) row spacing, through-hole mounting, solder termination, shrouded 4-wall construction, and board-to-cable/wire style. Variations in contact shape (circular to square), contact length, insulation height, and fastening hook length do not preclude substitution when these primary parameters align.

Q: Can I use a substitute part with a different contact shape?

A: Yes. The original part features circular contacts, while most active substitutes feature square contacts. Both contact shapes are mechanically compatible within the shrouded 4-wall connector envelope and maintain electrical performance for standard mating applications.

Q: Are there differences in operating temperature ranges among the substitutes?

A: Yes. The original part does not specify an operating temperature range. Active substitutes operate within -55°C to 105°C (TE Connectivity 5499160-2, 3M D3314-6302-AR, 3M N3314-6302RB, 3M N3314-6303RB) or -55°C to 120°C (On Shore Technology 301-LS-141). Applications requiring extended high-temperature performance should select the On Shore Technology 301-LS-141.

Q: What is the difference between the 3M N3314-6302RB and N3314-6303RB parts?

A: Both parts are functionally equivalent with identical connector parameters. The primary difference is contact post length: N3314-6302RB features 0.112" (2.84mm) post length, while N3314-6303RB features 0.155" (3.94mm) post length. The extended post length in N3314-6303RB provides deeper board penetration and increased solder joint engagement for applications requiring enhanced mechanical retention.

Q: How do packaging options affect part selection?

A: Packaging does not affect electrical or mechanical compatibility. Available packaging includes Tray (5499160-2, 53611-S14-4LF, D3314-6302-AR), Bulk (301-LS-141, N3314-6302RB, N3314-6303RB), and Tube (71980-114LF). Packaging selection is determined by manufacturing process requirements, inventory management, and supply chain logistics rather than connector functionality.

Q: What is the significance of RoHS and REACH compliance for these parts?

A: All active substitute parts are RoHS compliant, meeting restrictions on hazardous substances. REACH status varies: N3314-6302RB, N3314-6303RB, 5499160-2, and 301-LS-141 are REACH Unaffected; 53611-S14-4LF is REACH Affected. Applications subject to REACH regulations should select parts with REACH Unaffected designation.

Q: Which substitute part has the highest current rating?

A: On Shore Technology 301-LS-141 features the highest current rating at 2A. TE Connectivity 5499160-2 is rated at 1A. The 3M parts (D3314-6302-AR, N3314-6302RB, N3314-6303RB) are rated at 1.75A. Applications requiring maximum current capacity should select the On Shore Technology 301-LS-141.

Q: Are there inventory considerations for part selection?

A: Yes. Current inventory levels vary significantly: 3M N3314-6302RB has the highest availability at 9191 units, followed by TE Connectivity 5499160-2 at 1235 units. On Shore Technology 301-LS-141 has 906 units, Amphenol ICC 71980-114LF has 1063 units, 3M D3314-6302-AR has 1112 units, and 3M N3314-6303RB has 1552 units. High-volume applications should prioritize parts with greater inventory availability.

Q: What is the difference between standard latch hooks and short/long latch hook variants?

A: Latch hook length variations affect the mechanical engagement depth with mating connectors. Standard hooks provide baseline engagement, short hooks reduce engagement depth, and long hooks increase engagement depth. All variants maintain functional compatibility within the connector system. Hook length selection depends on specific mating connector design and mechanical retention requirements.
