TE Connectivity AMP Connectors 1828028-2 Equivalent & Substitute Parts

Part Overview

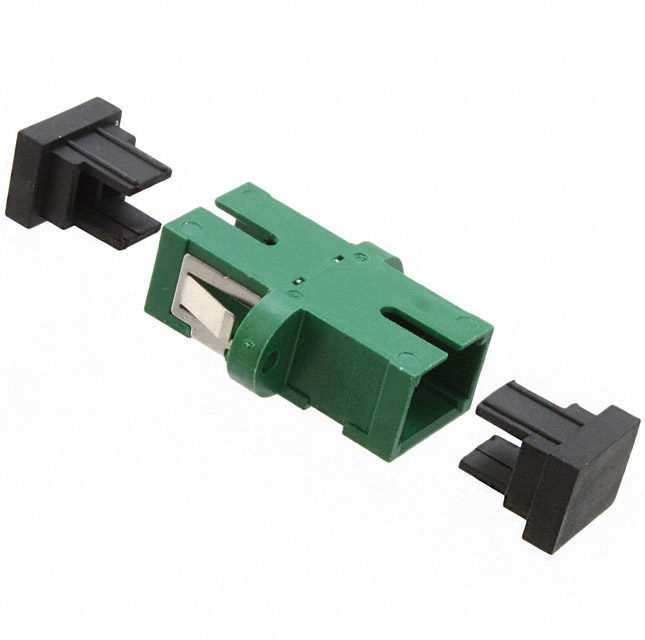

The TE Connectivity AMP Connectors 1828028-2 is a fiber optic coupler connector designed for SC receptacle-to-SC receptacle simplex applications. This component functions as a panel-mount, flange-mounted adapter with snap-in capability, featuring ceramic ferrules and angle-polished ends with dust cap protection.

The 1828028-2 carries an obsolete product status. Identifying equivalent substitute parts is necessary to maintain system compatibility and ensure continued availability for maintenance, repair, and new installations where this connector type is specified.

Substiute Parts

1828028-2

TE Connectivity AMP ConnectorsIn Stock: 10271828028-2 Datasheet

Current PartRFQ

1061613600

MolexIn Stock: 12931061613600 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the TE Connectivity 1828028-2 is determined by strict equivalence across the following critical parameters:

Mandatory Matching Parameters:

• Connector type: Coupler
• Interface configuration: SC Receptacle to SC Receptacle
• Simplex/Duplex mode: Simplex
• Mounting type: Panel Mount, Flange; Snap-In
• Ferrule material: Ceramic
• Angle polished finish: Required

Compliance Parameters:

• RoHS3 compliance status
• ECCN classification (EAR99)
• Moisture Sensitivity Level (MSL 1)

The Molex 1061613600 meets all mandatory matching parameters and maintains equivalent compliance certifications, establishing it as a direct functional substitute for the obsolete TE Connectivity part.

Parameter Comparison

Engineering Selection Recommendations

Primary Substitute: Molex 1061613600

The Molex 1061613600 is the direct equivalent substitute for the obsolete TE Connectivity 1828028-2. Both components share identical functional specifications across all critical parameters: SC receptacle-to-receptacle simplex coupler configuration, panel-mount flange design with snap-in capability, ceramic ferrule construction, and angle-polished finish.

The Molex part carries active product status, ensuring ongoing availability and supply chain continuity. Both components maintain ROHS3 compliance and EAR99 ECCN classification, satisfying regulatory requirements for equivalent substitution.

The primary distinction between the two parts is the protective feature: the TE Connectivity part includes a dust cap, while the Molex part includes a shutter mechanism. Both features provide equivalent protection for the ferrule interface during storage and non-use conditions.

Frequently Asked Questions (FAQ)

Q: Can the Molex 1061613600 directly replace the TE Connectivity 1828028-2 in existing installations?

A: Yes. Both components are SC receptacle-to-receptacle simplex couplers with identical mounting configurations (panel mount, flange, snap-in), ferrule materials (ceramic), and finish specifications (angle polished). The functional interface and mechanical mounting are equivalent.

Q: What is the difference between the dust cap on the TE Connectivity part and the shutter on the Molex part?

A: Both are protective mechanisms for the ferrule interface. The dust cap is a removable cover, while the shutter is an integrated protective feature. Both serve the same functional purpose of protecting the connector interface from contamination during storage and handling.

Q: Are there any compliance differences between these two parts?

A: No. Both the TE Connectivity 1828028-2 and Molex 1061613600 are ROHS3 compliant, carry EAR99 ECCN classification, and share identical MSL ratings (1 - Unlimited). Both are classified under the same HTSUS code (8536.69.4030).

Q: Why is the TE Connectivity part listed as obsolete?

A: Product obsolescence is determined by the manufacturer and typically reflects end-of-life status for that specific model. The Molex 1061613600 maintains active status, providing a current-generation alternative with equivalent specifications.

Q: What does "Simplex" mean in the context of these couplers?

A: Simplex indicates single-channel operation. The coupler accommodates one fiber connection path, as opposed to duplex configurations which support two simultaneous connections.

Q: Are the housing materials equivalent between the two parts?

A: The TE Connectivity part specifies polybutylene terephthalate (PBT) glass-filled housing, while the Molex part specifies polymer housing. Both materials meet the same functional and compliance requirements for this connector category and are suitable for equivalent applications.
