Phoenix Contact 1827350 Terminal Block Header - Equivalent & Substitute Parts

Part Overview

The Phoenix Contact 1827350 is a 10-position terminal block header with male pins, shrouded on four sides, featuring a 0.150" (3.81mm) pitch and 45° through-hole mounting. This component is classified as Active product status and is ROHS3 compliant. Alternative models may be required due to application-specific orientation requirements, inventory constraints, or design modifications necessitating different mounting angles or electrical ratings.

Substiute Parts

1827350

Phoenix ContactIn Stock: 10251827350 Datasheet

Current PartRFQ

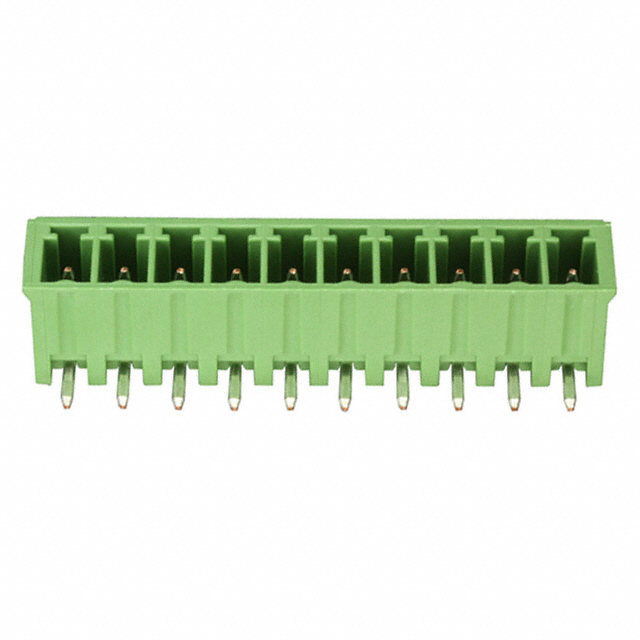

1-284513-0

TE Connectivity AMP ConnectorsIn Stock: 11821-284513-0 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

The substitute part TE Connectivity AMP Connectors 1-284513-0 qualifies as an equivalent based on the following critical parameters:

Matching Parameters:

• Number of Positions: 10
• Pitch: 0.150" (3.81mm)
• Type: Header, Male Pins, Shrouded (4 Side)
• Termination Style: Solder
• Mounting Type: Through Hole
• Contact Mating Finish: Tin
• Material Flammability Rating: UL94 V-0
• Contact Tail Length: 0.134" (3.40mm)
• RoHS Status: ROHS3 Compliant
• Moisture Sensitivity Level: 1 (Unlimited)
• Product Status: Active

Differing Parameters:

• Header Orientation: 45° (main part) vs. 90°, Right Angle (substitute)
• Current - UL: 8 A (main part) vs. 11 A (substitute)
• Voltage - IEC: 320 V (main part) vs. not specified (substitute)
• Insulation Height: 0.433" (11.00mm) (main part) vs. 0.287" (7.30mm) (substitute)
• Housing Material: Polyamide (PA), Nylon (main part) vs. Polyamide (PA66), Nylon 6/6 (substitute)
• Operating Temperature: Not specified (main part) vs. -40°C ~ 110°C (substitute)

Parameter Comparison

Engineering Selection Recommendations

Both the Phoenix Contact 1827350 and TE Connectivity 1-284513-0 maintain Active product status and satisfy ROHS3 compliance requirements. The primary distinction is header orientation: the Phoenix Contact part features 45° mounting, while the TE Connectivity substitute provides 90° right-angle configuration. Selection between these parts depends on PCB layout constraints and connector accessibility requirements. The TE Connectivity part offers higher UL current rating (11 A vs. 8 A), providing additional margin in applications approaching the 8 A specification. Both parts carry identical contact tail length and maintain UL94 V-0 flammability certification, ensuring compatibility in safety-critical applications.

Frequently Asked Questions (FAQ)

Q: Can the TE Connectivity 1-284513-0 directly replace the Phoenix Contact 1827350?

A: Direct replacement is possible only if the 90° right-angle orientation accommodates the PCB layout. The 45° orientation of the Phoenix Contact part differs fundamentally from the 90° configuration of the TE Connectivity substitute. Verify mounting angle compatibility before substitution.

Q: Are the electrical ratings equivalent between these parts?

A: Both parts meet 300 V UL voltage specification. The TE Connectivity part provides 11 A UL current capacity versus 8 A for the Phoenix Contact part. The Phoenix Contact part specifies 320 V IEC voltage rating, which is not provided for the TE Connectivity substitute. Confirm voltage and current requirements against application specifications.

Q: Do both parts meet the same compliance standards?

A: Both parts are ROHS3 compliant, carry UL94 V-0 flammability rating, and maintain MSL 1 (Unlimited) moisture sensitivity classification. Both are Active product status components suitable for current design implementations.

Q: What is the significance of the different insulation heights?

A: The Phoenix Contact part specifies 0.433" (11.00mm) insulation height, while the TE Connectivity substitute provides 0.287" (7.30mm). This dimensional difference may affect clearance requirements and component spacing on the PCB. Verify mechanical fit within the application enclosure.

Q: Are the housing materials functionally equivalent?

A: The Phoenix Contact part uses Polyamide (PA) Nylon, while the TE Connectivity substitute specifies Polyamide (PA66) Nylon 6/6. Both materials provide UL94 V-0 flammability performance. PA66 offers enhanced thermal and mechanical properties compared to standard PA, providing additional design margin in demanding environments.
