Phoenix Contact 1824750 Terminal Block - Equivalent & Substitute Parts

Part Overview

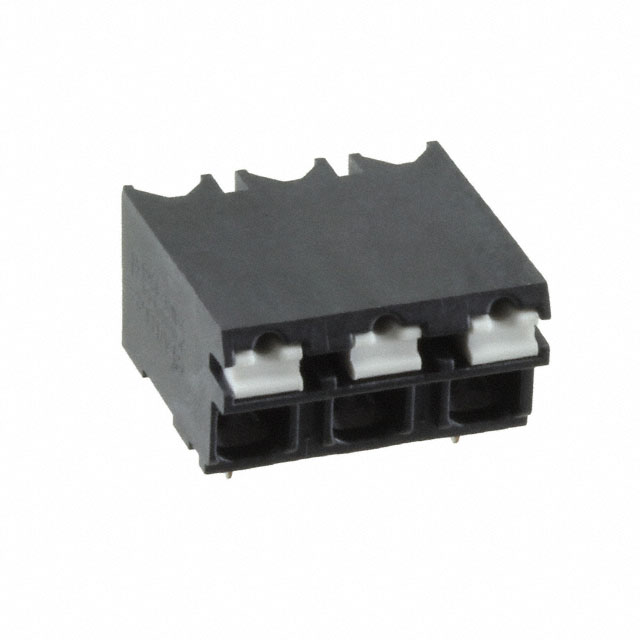

The Phoenix Contact 1824750 is a 3-position wire-to-board terminal block designed for surface mount applications with 5.00mm pitch and horizontal board orientation. This component is classified as Active product status and is RoHS Compliant. Alternative equivalent parts may be required due to supply chain considerations, design flexibility, or specific application requirements where substitute components meet identical electrical and mechanical specifications.

Substiute Parts

1824750

Phoenix ContactIn Stock: 12611824750 Datasheet

Current PartRFQ

2086-3203/700-000/997-605

WAGO CorporationIn Stock: 23672086-3203/700-000/997-605 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

The WAGO Corporation 2086-3203/700-000/997-605 qualifies as a direct substitute for the Phoenix Contact 1824750 based on the following critical parameters:

• Electrical Compatibility: Both components maintain identical current (10 A) and voltage (300 V) ratings, ensuring equivalent electrical performance in circuit applications.
• Mechanical Compatibility: Both feature 3 positions per level with 0.197" (5.00mm) pitch spacing and horizontal board mating orientation, enabling direct footprint compatibility on PCB layouts.
• Wire Termination Compatibility: Both accept 16-24 AWG wire gauges through screwless termination methods, supporting equivalent wire connection standards.
• Surface Mount Compatibility: Both are surface mount components with identical mounting type classification.
• Regulatory Compliance: Both maintain RoHS compliance status and MSL 1 rating, meeting equivalent environmental and moisture sensitivity requirements.

Parameter Comparison

Engineering Selection Recommendations

Both the Phoenix Contact 1824750 and WAGO 2086-3203/700-000/997-605 maintain Active product status, confirming ongoing manufacturer support and availability. Both components satisfy RoHS compliance requirements, with the WAGO part meeting the more recent ROHS3 standard. Selection between these components should be based on design requirements specific to wire termination method preference, housing material thermal characteristics, and contact plating specifications. Both components are suitable for equivalent electrical and mechanical applications within the specified parameter ranges.

Frequently Asked Questions (FAQ)

Q: Can the WAGO 2086-3203/700-000/997-605 be used as a direct replacement for the Phoenix Contact 1824750 on existing PCB designs?

A: Yes. Both components share identical pitch (5.00mm), position count (3), mating orientation (horizontal with board), and mounting type (surface mount). PCB footprints designed for the Phoenix Contact 1824750 are compatible with the WAGO substitute.

Q: Are the electrical ratings equivalent between these two components?

A: Yes. Both components are rated for 10 A current and 300 V voltage, supporting identical electrical performance in circuit applications.

Q: What is the difference in wire termination between these components?

A: The Phoenix Contact 1824750 uses leg spring and push-in spring termination, while the WAGO 2086-3203/700-000/997-605 uses push button clamp termination. Both are screwless methods and accept 16-24 AWG wire gauges.

Q: Do both components meet the same moisture sensitivity requirements?

A: Yes. Both components carry MSL 1 (Unlimited) rating, indicating equivalent moisture sensitivity classification.

Q: What is the difference in housing material between these components?

A: The Phoenix Contact 1824750 uses Liquid Crystal Polymer (LCP), while the WAGO substitute uses Polyphthalamide (PPA) with glass filling. Both materials are suitable for surface mount terminal block applications.

Q: Are both components RoHS compliant?

A: Yes. The Phoenix Contact 1824750 is RoHS Compliant, and the WAGO 2086-3203/700-000/997-605 is ROHS3 Compliant, meeting equivalent environmental standards.
