Phoenix Contact 1824145 Terminal Block - Equivalent & Substitute Parts

Part Overview

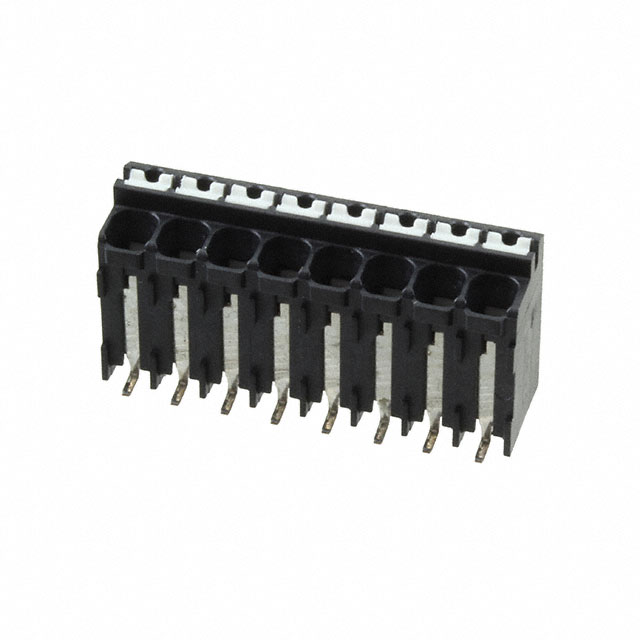

The Phoenix Contact 1824145 is an 8-position wire-to-board terminal block designed for surface mount applications with a 4.6mm pitch. This component provides vertical board entry with screwless push-in spring termination, supporting currents up to 10A at 300V. The part is actively manufactured and RoHS compliant, making it suitable for industrial control, automation, and power distribution applications where reliable wire termination is required. Substitute parts may be necessary due to inventory constraints, lead time considerations, or specific manufacturing requirements.

Substiute Parts

1824145

Phoenix ContactIn Stock: 11931824145 Datasheet

Current PartRFQ

2086-1108/700-000/997-607

WAGO CorporationIn Stock: 13582086-1108/700-000/997-607 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the Phoenix Contact 1824145 is determined by strict alignment with the following critical parameters:

• Electrical Compatibility: Current rating (10A minimum), voltage rating (300V minimum), and wire gauge acceptance (16-24 AWG)
• Mechanical Compatibility: 8 positions per level, 4.6mm pitch, vertical board entry orientation, and surface mount configuration
• Termination Method: Screwless push-in spring technology for tool-free installation
• Environmental Compliance: RoHS compliance and MSL rating of 1 or better

The WAGO Corporation 2086-1108/700-000/997-607 qualifies as a direct substitute because it meets all critical electrical and mechanical parameters. Both parts share identical position count, pitch spacing, current/voltage ratings, wire gauge compatibility, and surface mount configuration. Both employ screwless termination methods and maintain RoHS compliance with unlimited moisture sensitivity ratings.

Parameter Comparison

Engineering Selection Recommendations

Both the Phoenix Contact 1824145 and WAGO 2086-1108/700-000/997-607 are active production components with current inventory availability. Selection between these parts should be based on:

Phoenix Contact 1824145: Preferred when LCP housing material is specified or when leg spring termination is required for specific application constraints. Packaged in Cut Tape format with 1105 units in stock.

WAGO 2086-1108/700-000/997-607: Suitable as a direct substitute with equivalent electrical and mechanical performance. Features polyphthalamide (PPA) glass-filled housing and push button clamp termination. Packaged in Tape & Reel format with 1296 units in stock. Includes specified operating temperature range of -60°C to 105°C and REACH unaffected status.

Both parts maintain RoHS3 compliance and unlimited moisture sensitivity ratings, ensuring compatibility with standard PCB assembly processes and long-term storage requirements.

Frequently Asked Questions (FAQ)

Q: Can the WAGO 2086-1108/700-000/997-607 be used as a direct replacement for the Phoenix Contact 1824145?

A: Yes. Both parts share identical electrical ratings (10A, 300V), mechanical configuration (8 positions, 4.6mm pitch, vertical board entry), wire gauge compatibility (16-24 AWG), and surface mount design. The screwless termination methods are functionally equivalent for wire connection purposes.

Q: What is the difference in housing material between these parts?

A: The Phoenix Contact 1824145 uses Liquid Crystal Polymer (LCP), while the WAGO substitute uses polyphthalamide (PPA) with glass reinforcement. Both materials are suitable for surface mount terminal block applications and maintain equivalent electrical insulation properties.

Q: Are there differences in termination method?

A: The Phoenix Contact uses leg spring and push-in spring termination, while the WAGO part uses push button clamp termination. Both are screwless methods that accept 16-24 AWG wire without tools. The WAGO design includes push button actuation for wire insertion and removal.

Q: What packaging formats are available?

A: The Phoenix Contact 1824145 is supplied in Cut Tape (CT) packaging. The WAGO 2086-1108/700-000/997-607 is supplied in Tape & Reel (TR) format. Selection depends on assembly line requirements and volume needs.

Q: Are both parts RoHS compliant?

A: Yes. The Phoenix Contact 1824145 is RoHS compliant. The WAGO 2086-1108/700-000/997-607 is ROHS3 compliant, which represents the current RoHS standard. Both meet environmental compliance requirements.

Q: What is the operating temperature range for each part?

A: The Phoenix Contact 1824145 does not specify an operating temperature range in the provided data. The WAGO 2086-1108/700-000/997-607 operates from -60°C to 105°C, providing defined thermal performance specifications for temperature-sensitive applications.
