Phoenix Contact 1822833 Equivalent & Substitute Parts

Part Overview

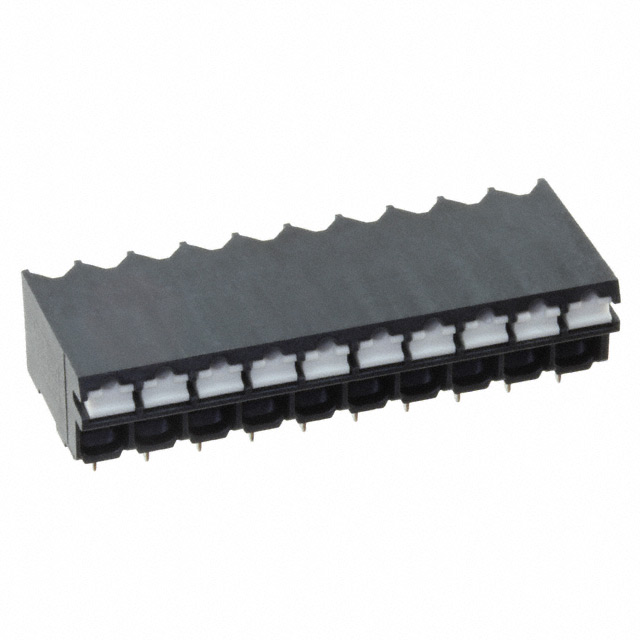

The Phoenix Contact 1822833 is a 10-position wire-to-board terminal block with horizontal mating orientation and 4.6mm pitch, designed for through-hole PCB mounting. This component operates at 10A and 300V, accommodating wire gauges from 16-24 AWG with screwless push-in spring termination. The part is active in production status and ROHS3 compliant, making it suitable for industrial control, automation, and power distribution applications where reliable wire-to-board connections are required. Equivalent parts are identified to provide procurement flexibility, inventory alternatives, and supply chain continuity.

Substiute Parts

1822833

Phoenix ContactIn Stock: 7891822833 Datasheet

Current PartRFQ

2086-1210

WAGO CorporationIn Stock: 12292086-1210 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the Phoenix Contact 1822833 is determined by strict equivalence across the following critical parameters: 10-position configuration, 4.6mm pitch spacing, horizontal board-mounted orientation, through-hole installation method, 10A current capacity, 300V voltage rating, and 16-24 AWG wire gauge compatibility. The WAGO 2086-1210 qualifies as a direct substitute because it matches all mandatory electrical and mechanical specifications. Both parts employ screwless termination mechanisms (push-in spring versus push-button clamp), maintain identical pitch and position count, support the same wire gauge range, and deliver equivalent electrical performance. Packaging differences (bulk versus tray) and housing material variations (LCP versus glass-filled PPA) do not affect functional interchangeability in circuit applications. Both parts maintain ROHS3 compliance and unlimited moisture sensitivity ratings.

Parameter Comparison

Engineering Selection Recommendations

Both the Phoenix Contact 1822833 and WAGO 2086-1210 are active production components with ROHS3 compliance and unlimited moisture sensitivity ratings, qualifying them for equivalent use in applications requiring 10-position, 4.6mm-pitch terminal blocks. Selection between these parts should be based on availability, packaging requirements (bulk versus tray), and termination mechanism preference (leg spring push-in versus push-button clamp actuation). The WAGO 2086-1210 provides an operating temperature range of -60°C to 105°C, whereas the Phoenix Contact 1822833 does not specify operating temperature limits in the provided data. For applications with defined temperature requirements, this specification should be verified against system operating conditions. Both parts maintain identical electrical ratings and wire gauge compatibility, ensuring functional interchangeability in standard wire-to-board connection applications.

Frequently Asked Questions (FAQ)

Q: Can the WAGO 2086-1210 be used as a direct replacement for the Phoenix Contact 1822833?

A: Yes. Both parts share identical position count (10), pitch spacing (4.6mm), current rating (10A), voltage rating (300V), wire gauge range (16-24 AWG), mounting method (through-hole), and mating orientation (horizontal with board). Functional interchangeability is confirmed across all critical electrical and mechanical parameters.

Q: What is the difference in wire termination between these two parts?

A: The Phoenix Contact 1822833 uses leg spring push-in spring termination, while the WAGO 2086-1210 employs push-button clamp termination. Both are screwless mechanisms that accept the same wire gauge range and deliver equivalent electrical performance. Termination method selection depends on operator preference and assembly process requirements.

Q: Are there packaging differences between these substitutes?

A: Yes. The Phoenix Contact 1822833 is supplied in bulk packaging, while the WAGO 2086-1210 is supplied in tray packaging. Packaging format does not affect component functionality or electrical performance; selection should be based on inventory management and handling requirements.

Q: Do both parts meet the same compliance standards?

A: Yes. Both the Phoenix Contact 1822833 and WAGO 2086-1210 are ROHS3 compliant, REACH unaffected, and carry MSL rating 1 (unlimited moisture sensitivity). Both parts are classified under ECCN EAR99 and HTSUS 8536.90.4000.

Q: What housing materials are used in each part?

A: The Phoenix Contact 1822833 uses Liquid Crystal Polymer (LCP), while the WAGO 2086-1210 uses glass-filled Polyphthalamide (PPA). Both materials provide adequate mechanical strength and electrical insulation for standard industrial applications. Material selection does not affect electrical interchangeability.

Q: Is operating temperature specified for both parts?

A: The WAGO 2086-1210 specifies an operating temperature range of -60°C to 105°C. Operating temperature is not specified in the provided data for the Phoenix Contact 1822833. For applications with defined temperature requirements, this parameter should be verified with the manufacturer.
