TE Connectivity AMP Connectors 1-822473-6 PLCC Socket Equivalent & Substitute Parts

Part Overview

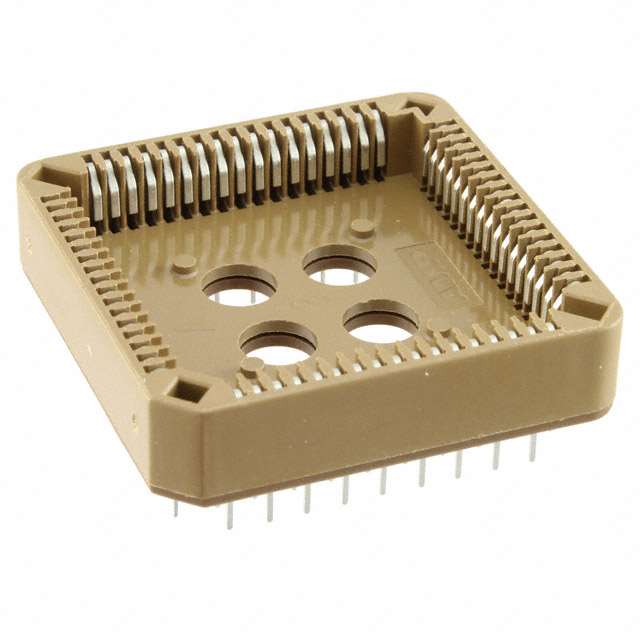

The TE Connectivity AMP Connectors 1-822473-6 is a 68-position PLCC socket designed for through-hole mounting applications. This component features tin-plated phosphor bronze contacts with a closed frame configuration and solder termination. The part is classified as obsolete, making equivalent and substitute components necessary for ongoing production, maintenance, and design continuity. Active alternative products from multiple manufacturers provide functional equivalence while maintaining compliance with current industry standards.

Key Parameters

Parameter	Value
Type	PLCC Socket
Number of Positions	68 (4 x 17)
Pitch - Mating	0.050" (1.27mm)
Pitch - Post	0.100" (2.54mm)
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material - Mating	Phosphor Bronze
Contact Material - Post	Phosphor Bronze
Mounting Type	Through Hole
Features	Closed Frame
Termination	Solder
Housing Material	Thermoplastic
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant
Moisture Sensitivity Level	1 (Unlimited)
Product Status	Obsolete

Substitute Part Grouping Explanation

Substitution of the TE Connectivity 1-822473-6 is determined by strict adherence to the following critical parameters:

Primary Substitution Criteria:

Type: PLCC Socket
Number of Positions: 68 (4 x 17)
Pitch - Mating: 0.050" (1.27mm)
Pitch - Post: 0.100" (2.54mm)
Mounting Type: Through Hole
Features: Closed Frame
Termination: Solder
Material Flammability Rating: UL94 V-0
RoHS Status: ROHS3 Compliant
Moisture Sensitivity Level: 1 (Unlimited)

All substitute parts listed meet these core electrical and mechanical parameters. Variations in contact material composition, housing material formulation, operating temperature range, and contact resistance are secondary parameters that do not preclude substitution when primary criteria are satisfied. All substitute parts maintain compliance with ROHS3, REACH, and EAR99 classifications identical to the main part.

Parameter Comparison

Parameter	1-822473-6 (TE Connectivity)	A-CCS 068-Z-T (Assmann WSW)	8468-11B1-RK-TP (3M)	940-44-068-24-000000 (Mill-Max)	PLCC-68-AT (Adam Tech)
Type	PLCC	PLCC	PLCC	PLCC	PLCC
Number of Positions	68 (4 x 17)	68 (4 x 17)	68 (4 x 17)	68 (4 x 17)	68 (4 x 17)
Pitch - Mating	0.050" (1.27mm)	0.050" (1.27mm)	0.050" (1.27mm)	0.100" (2.54mm)	0.050" (1.27mm)
Pitch - Post	0.100" (2.54mm)	0.100" (2.54mm)	0.050" (1.27mm)	0.100" (2.54mm)	0.100" (2.54mm)
Contact Finish - Mating	Tin	Tin	Tin	Tin	Tin
Contact Finish - Post	Tin	Tin	Tin	Tin	Tin
Contact Material - Mating	Phosphor Bronze	Phosphor Bronze	Copper Alloy	Beryllium Copper	Phosphor Bronze
Contact Material - Post	Phosphor Bronze	Phosphor Bronze	Copper Alloy	Brass Alloy	Phosphor Bronze
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Features	Closed Frame	Closed Frame	Closed Frame	Closed Frame	Closed Frame
Termination	Solder	Solder	Solder	Solder	Solder
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
RoHS Status	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant
Moisture Sensitivity Level	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)
Product Status	Obsolete	Active	Active	Active	Active

Engineering Selection Recommendations

Direct Substitutes (Highest Compatibility):

The Assmann WSW Components A-CCS 068-Z-T and Adam Tech PLCC-68-AT are direct functional equivalents to the TE Connectivity 1-822473-6. Both parts maintain identical mating pitch (0.050" / 1.27mm), post pitch (0.100" / 2.54mm), and contact material specifications (phosphor bronze). Both are active products with current manufacturing status, ensuring long-term availability and supply chain continuity. Both maintain ROHS3 compliance and UL94 V-0 flammability ratings.

Alternative Substitutes (Secondary Selection):

The 3M 8468-11B1-RK-TP (Series 8400) provides functional substitution with active product status and ROHS3 compliance. This part differs in post pitch specification (0.050" / 1.27mm versus 0.100" / 2.54mm on the main part) and employs copper alloy contact materials rather than phosphor bronze. PCB layout modifications are required for this substitution due to post pitch variance.

The Mill-Max Manufacturing Corp. 940-44-068-24-000000 (Series 940) offers substitution with extended operating temperature range (-55°C to 125°C) and active product status. This part differs in mating pitch specification (0.100" / 2.54mm versus 0.050" / 1.27mm on the main part) and employs beryllium copper and brass alloy contact materials. PCB layout modifications are required for this substitution due to mating pitch variance.

Compliance and Certification:

All substitute parts maintain ROHS3 compliance, REACH unaffected status, and EAR99 export classification identical to the main part. All parts carry UL94 V-0 flammability ratings and MSL 1 (Unlimited) moisture sensitivity levels. All parts are suitable for solder termination applications.

Frequently Asked Questions (FAQ)

Q: Can the Assmann WSW A-CCS 068-Z-T directly replace the TE Connectivity 1-822473-6 without PCB modifications?

A: Yes. The A-CCS 068-Z-T maintains identical mating pitch (0.050" / 1.27mm) and post pitch (0.100" / 2.54mm) specifications. No PCB layout modifications are required. Both parts employ phosphor bronze contact materials and closed frame configurations.

Q: What is the primary difference between the 3M 8468-11B1-RK-TP and the main part?

A: The 3M part specifies a post pitch of 0.050" (1.27mm) compared to the main part's 0.100" (2.54mm) post pitch. This difference requires PCB footprint modification. The 3M part also employs copper alloy contact materials rather than phosphor bronze.

Q: Does the Mill-Max 940-44-068-24-000000 require PCB modifications?

A: Yes. The Mill-Max part specifies a mating pitch of 0.100" (2.54mm) compared to the main part's 0.050" (1.27mm) mating pitch. PCB layout modifications are required for this substitution.

Q: Are all substitute parts ROHS3 compliant?

A: Yes. All listed substitute parts maintain ROHS3 compliance identical to the main part. All parts are also REACH unaffected and classified as EAR99 for export purposes.

Q: What is the inventory status of substitute parts?

A: All substitute parts are active products with current manufacturing status. Assmann WSW A-CCS 068-Z-T: 2058 pcs in stock. 3M 8468-11B1-RK-TP: 2120 pcs in stock. Mill-Max 940-44-068-24-000000: 3683 pcs in stock. Adam Tech PLCC-68-AT: 1841 pcs in stock.

Q: Can substitute parts be used in applications requiring extended temperature operation?

A: The Mill-Max 940-44-068-24-000000 operates across -55°C to 125°C. The Assmann WSW A-CCS 068-Z-T and Adam Tech PLCC-68-AT operate across -40°C to 105°C. The main part does not specify an operating temperature range. Selection depends on application requirements.

Q: Are all substitute parts packaged in tubes?

A: The main part packaging is not specified. All substitute parts are supplied in tube packaging: Assmann WSW A-CCS 068-Z-T, 3M 8468-11B1-RK-TP, Mill-Max 940-44-068-24-000000, and Adam Tech PLCC-68-AT.

Q: What contact resistance values are specified for substitute parts?

A: Assmann WSW A-CCS 068-Z-T: 15mOhm. Mill-Max 940-44-068-24-000000: 30mOhm. Adam Tech PLCC-68-AT: 30mOhm. The main part does not specify contact resistance. The 3M 8468-11B1-RK-TP does not specify contact resistance.
