Phoenix Contact 1796115 Terminal Block Plug - Equivalent & Substitute Parts

Part Overview

The Phoenix Contact 1796115 is a 3-position terminal block plug with female sockets, 0.200" (5.08mm) pitch, designed for 180° free-hanging in-line applications. This component features screwless spring cage termination, rated for 12A at 630V, and accommodates wire gauges from 12-24 AWG (0.2-2.5mm²). The part is currently classified as obsolete, making identification of active equivalent models essential for ongoing procurement and system maintenance.

Key Parameters

Parameter	Value
Manufacturer	Phoenix Contact
Series	COMBICON FKC
Type	Plug, Female Sockets
Number of Positions	3
Pitch	0.200" (5.08mm)
Plug Wire Entry	180°
Termination Style	Screwless - Spring Cage, Tension Clamp
Mounting Type	Free Hanging (In-Line)
Current Rating (IEC)	12A
Voltage Rating (IEC)	630V
Wire Gauge (AWG)	12-24 AWG
Wire Gauge (mm²)	0.2-2.5mm²
Housing Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Contact Mating Finish	Tin
Wire Strip Length	10mm
Insulation Height	0.591" (15.00mm)
RoHS Status	RoHS Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)

Substitute Part Grouping Explanation

Substitution of the Phoenix Contact 1796115 is determined by strict equivalence across the following critical parameters:

Electrical Compatibility: Current rating (12A IEC), voltage rating (630V IEC), and wire gauge range (12-24 AWG / 0.2-2.5mm²) must remain identical.

Mechanical Compatibility: Number of positions (3), pitch (0.200" / 5.08mm), plug wire entry orientation (180°), termination style (screwless spring cage), and mounting type (free hanging in-line) must be unchanged.

Material & Safety Compliance: Housing material (polyamide/nylon), flammability rating (UL94 V-0), contact mating finish (tin), and wire strip length (10mm) must match.

Environmental & Regulatory: RoHS compliance status and MSL rating (1 - Unlimited) must be maintained.

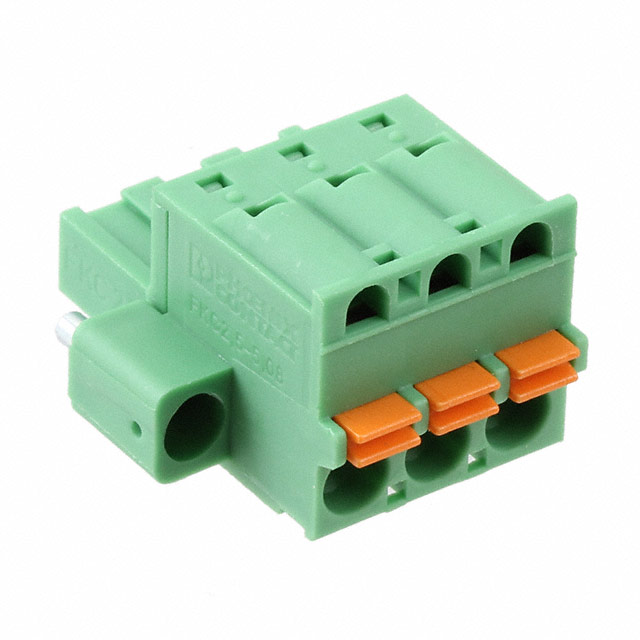

The Phoenix Contact 1796005 meets all these criteria and is classified as an active product, making it a direct functional equivalent to the obsolete 1796115.

Parameter Comparison

Parameter	1796115 (Main Part)	1796005 (Substitute)
Manufacturer	Phoenix Contact	Phoenix Contact
Series	COMBICON FKC	COMBICON FKC
Type	Plug, Female Sockets	Plug, Female Sockets
Number of Positions	3	3
Pitch	0.200" (5.08mm)	0.200" (5.08mm)
Plug Wire Entry	180°	180°
Termination Style	Screwless - Spring Cage, Tension Clamp	Screwless - Spring Cage, Tension Clamp
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Current Rating (IEC)	12A	12A
Voltage Rating (IEC)	630V	630V
Wire Gauge (AWG)	12-24 AWG	12-24 AWG
Wire Gauge (mm²)	0.2-2.5mm²	0.2-2.5mm²
Housing Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0	UL94 V-0
Contact Mating Finish	Tin	Tin
Wire Strip Length	10mm	10mm
Insulation Height	0.591" (15.00mm)	0.591" (15.00mm)
RoHS Status	RoHS Compliant	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)	1 (Unlimited)
Product Status	Obsolete	Active

Engineering Selection Recommendations

The Phoenix Contact 1796005 is the direct substitute for the obsolete 1796115. Both components are manufactured by Phoenix Contact within the COMBICON FKC series and share identical electrical, mechanical, and material specifications. The 1796005 maintains full compatibility across all critical parameters: 3-position configuration, 0.200" pitch, 12A/630V ratings, screwless spring cage termination, and UL94 V-0 flammability compliance.

The primary distinction is product status: the 1796115 is obsolete while the 1796005 is active. The 1796005 carries ROHS3 compliance, representing an updated regulatory certification compared to the RoHS compliance of the 1796115. Both components maintain MSL 1 (Unlimited) moisture sensitivity ratings.

For new designs and ongoing procurement, the Phoenix Contact 1796005 is the appropriate selection. Existing systems using the 1796115 can transition to the 1796005 without modification to connector interfaces, termination procedures, or electrical performance.

Frequently Asked Questions (FAQ)

Q: Can the Phoenix Contact 1796005 directly replace the 1796115 in existing applications?

A: Yes. The 1796005 is electrically and mechanically equivalent to the 1796115. Both components feature identical pitch (0.200" / 5.08mm), current rating (12A), voltage rating (630V), wire gauge range (12-24 AWG / 0.2-2.5mm²), termination style (screwless spring cage), and mounting configuration (free hanging in-line). No design modifications are required.

Q: What is the difference between RoHS and ROHS3 compliance?

A: Both designations indicate compliance with Restriction of Hazardous Substances regulations. ROHS3 represents a more recent certification iteration. The 1796005 carries ROHS3 compliance, while the 1796115 carries RoHS compliance. Both meet the same hazardous substance restrictions for this component category.

Q: Are there packaging differences between the 1796115 and 1796005?

A: The 1796115 is supplied in unspecified packaging, while the 1796005 is supplied in bulk packaging. This distinction affects procurement and inventory management but does not impact component functionality or performance.

Q: What does MSL 1 (Unlimited) mean for these terminal blocks?

A: MSL 1 (Unlimited) indicates that the component has no moisture sensitivity limitations. These terminal blocks can be stored and handled without special moisture control measures, and shelf life is not restricted by moisture exposure.

Q: Are the 1796115 and 1796005 suitable for explosion-proof applications?

A: The 1796115 is specified with explosion-proof features. The 1796005 includes a mating flange feature. Both components are manufactured from UL94 V-0 rated polyamide housing material. Specific application requirements should be evaluated against the complete feature set of each component.
