TE Connectivity 1-794680-4 Equivalent & Substitute Parts

Part Overview

The TE Connectivity 1-794680-4 is a rectangular connector header from the Micro MATE-N-LOK series, designed for through-hole mounting in board-to-cable/wire applications. This connector features 14 positions arranged in 2 rows with 0.118" (3.00mm) pitch, shrouded 4-wall construction, and solder termination with locking ramp fastening.

The 1-794680-4 carries an obsolete product status. Identifying equivalent substitute parts is necessary to ensure continued availability for new designs, maintenance applications, and production continuity where this connector type is specified.

Substiute Parts

1-794680-4

TE Connectivity AMP ConnectorsIn Stock: 10991-794680-4 Datasheet

Current PartRFQ

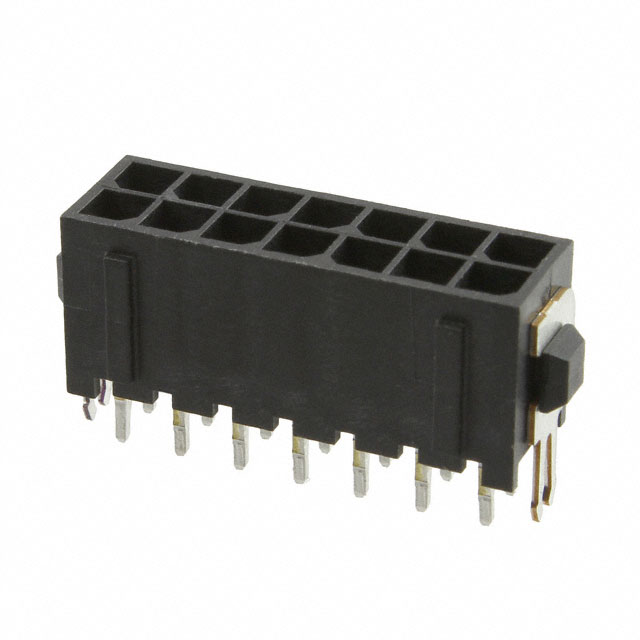

4-794680-4

TE Connectivity AMP ConnectorsIn Stock: 18704-794680-4 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the 1-794680-4 are identified based on electrical and mechanical parameter equivalence within the Micro MATE-N-LOK connector series. The following parameters determine substitution eligibility:

Critical Matching Parameters:

• Connector type (Header)
• Contact type (Male Pin)
• Number of positions (14)
• Number of rows (2)
• Pitch spacing (0.118" / 3.00mm)
• Row spacing (0.118" / 3.00mm)
• Mounting method (Through Hole)
• Shrouding configuration (Shrouded - 4 Wall)
• Termination method (Solder)
• Fastening type (Locking Ramp)
• Operating temperature range (-40°C ~ 105°C)
• Voltage rating (250V)

The substitute part 4-794680-4 maintains full electrical and mechanical compatibility with the original 1-794680-4 specification. Differences in contact finish material (Tin versus Tin-Lead) and RoHS compliance status do not affect functional interchangeability in the specified application category.

Parameter Comparison

Engineering Selection Recommendations

The 4-794680-4 is the direct substitute for the obsolete 1-794680-4. Both parts share identical electrical and mechanical specifications within the Micro MATE-N-LOK series, ensuring full functional compatibility in board-to-cable/wire applications requiring 14-position, 3.00mm pitch headers with through-hole solder termination.

The 4-794680-4 carries active product status, providing assured long-term availability and supply chain continuity. This part is RoHS compliant, meeting current environmental and regulatory requirements for new product designs and manufacturing operations. The contact finish material change from Tin-Lead to Tin does not affect electrical performance or mechanical interchangeability.

Selection of the 4-794680-4 is appropriate for applications where the original 1-794680-4 was specified, particularly where RoHS compliance and active product support are required.

Frequently Asked Questions (FAQ)

Q: Can the 4-794680-4 be used as a direct replacement for the 1-794680-4?

A: Yes. The 4-794680-4 is electrically and mechanically equivalent to the 1-794680-4. Both connectors share identical pitch spacing (0.118" / 3.00mm), position count (14), row configuration (2 rows), mounting method (through-hole), shrouding design (4-wall), and operating specifications (-40°C ~ 105°C, 250V rating).

Q: What is the difference between the contact finishes?

A: The 1-794680-4 uses Tin-Lead contact finish, while the 4-794680-4 uses Tin contact finish. Both finishes provide equivalent electrical conductivity and corrosion resistance at the specified 100.0µin (2.54µm) thickness. The Tin finish in the 4-794680-4 reflects current RoHS compliance standards.

Q: Why is the 1-794680-4 marked as obsolete?

A: The 1-794680-4 has been superseded by the 4-794680-4 in the manufacturer's product line. The 4-794680-4 maintains full compatibility while offering active product status and RoHS compliance.

Q: Are there packaging differences between these parts?

A: The 1-794680-4 packaging specification is not provided in the available data. The 4-794680-4 is supplied in Tray packaging. Confirm packaging requirements for your specific procurement and assembly processes.

Q: What applications are these connectors suitable for?

A: Both the 1-794680-4 and 4-794680-4 are classified for general-purpose applications. The 14-position, 3.00mm pitch configuration with board lock features and locking ramp fastening supports board-to-cable/wire interconnection in industrial control, instrumentation, and general electronic equipment.

Q: Is the 4-794680-4 available in stock?

A: The 4-794680-4 is listed as active product status with 1807 pieces in new original stock inventory.
