Phoenix Contact 1792045 Terminal Block Plug - Equivalent & Substitute Parts

Part Overview

The Phoenix Contact 1792045 is a 5-position terminal block plug with female sockets, 0.197" (5.00mm) pitch, and 90° free-hanging (in-line) configuration. This component features screw-rising cage clamp termination, rated for 12A (IEC) / 15A (UL) at 630V (IEC) / 300V (UL), and accommodates wire gauges from 12-30 AWG (0.2-2.5mm²). The part is actively produced and ROHS3 compliant. Equivalent and substitute parts are identified for applications requiring alternative sourcing, inventory availability, or specific mechanical or electrical parameter variations within acceptable tolerance ranges.

Key Parameters

Parameter	Value
Manufacturer Part Number	1792045
Manufacturer	Phoenix Contact
Category	Terminal Blocks
Type	Plug, Female Sockets
Number of Positions	5
Pitch	0.197" (5.00mm)
Plug Wire Entry	90°
Mounting Type	Free Hanging (In-Line)
Termination Style	Screw - Rising Cage Clamp
Current Rating (IEC)	12A
Voltage Rating (IEC)	630V
Wire Gauge Range	12-30 AWG (0.2-2.5mm²)
Screw Size	M3
Torque Specification	0.5-0.6 Nm (4.4-5.3 Lb-In)
Housing Material	Polyamide (PA), Nylon
Color	Green
RoHS Status	ROHS3 Compliant
Product Status	Active

Substitute Part Grouping Explanation

Substitute parts for the Phoenix Contact 1792045 are identified based on the following critical parameters that determine functional compatibility:

Primary Substitution Criteria:

Number of positions: 5 positions (fixed requirement)
Termination method: Screw-based cage clamp technology
Mounting configuration: Free-hanging (in-line) plug with female sockets
Pitch tolerance: 0.197" (5.00mm) or 0.200" (5.08mm) pitch (minor pitch variation acceptable within connector mating standards)
Wire gauge compatibility: 12-30 AWG range or subset thereof
Voltage rating: Minimum 300V (UL) or 630V (IEC)
Current rating: Minimum 12A (IEC) or 15A (UL)
Flammability: UL94 V-0 rated
RoHS compliance: ROHS3 compliant

Substitute Parts Identified:

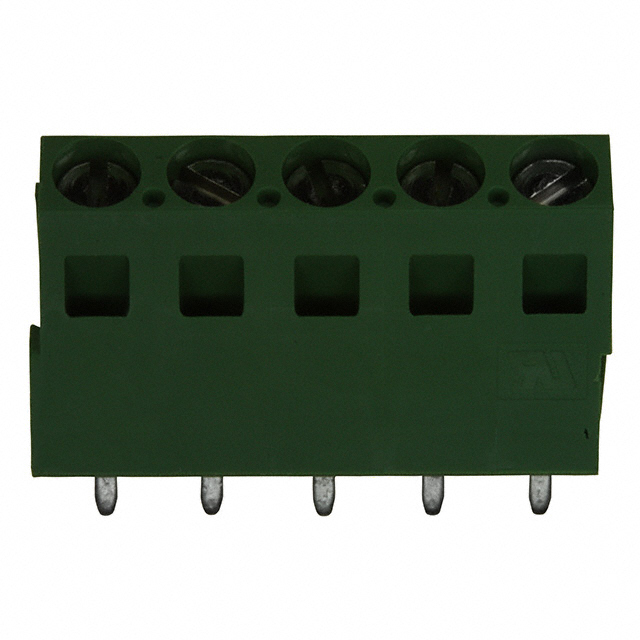

TE Connectivity 282847-5 – Wire-to-board configuration with 35° angle; pitch 0.200" (5.08mm); through-hole mounting. Substitution limited to applications where board-mounted receptacle is acceptable.
On Shore Technology OSTTS05515A – Free-hanging plug configuration; pitch 0.200" (5.08mm); screw termination. Direct form-factor alternative with minor pitch variation.
Amphenol Anytek TS05715A0000G – Free-hanging plug configuration; pitch 0.197" (5.00mm); 90° wire entry; screw-rising cage clamp. Closest electrical and mechanical equivalent.

Parameter Comparison

Parameter	Phoenix Contact 1792045	TE Connectivity 282847-5	On Shore Technology OSTTS05515A	Amphenol Anytek TS05715A0000G
Positions	5	5	5	5
Pitch	0.197" (5.00mm)	0.200" (5.08mm)	0.200" (5.08mm)	0.197" (5.00mm)
Type	Plug, Female Sockets	Wire to Board	Plug, Female Sockets	Plug, Female Sockets
Mounting	Free Hanging (In-Line)	Through Hole (PCB)	Free Hanging (In-Line)	Free Hanging (In-Line)
Wire Entry Angle	90°	35° (145° with board)	Not specified	90°
Termination	Screw - Rising Cage Clamp	Screw - Rising Cage Clamp	Screw	Screw - Rising Cage Clamp
Current Rating (IEC/UL)	12A / 15A	17.5A / —	— / —	— / 12A
Voltage Rating (IEC/UL)	630V / 300V	— / 300V	— / 300V	— / 300V
Wire Gauge Range	12-30 AWG (0.2-2.5mm²)	12-30 AWG	12-24 AWG (0.34-2.5mm²)	12-24 AWG (1-2.5mm²)
Screw Size	M3	M3	Not specified	M3
Torque Specification	0.5-0.6 Nm (4.4-5.3 Lb-In)	0.79 Nm (7.0 Lb-In)	0.4 Nm (4.6 Lb-In)	0.4 Nm (4.6 Lb-In)
Housing Material	Polyamide (PA), Nylon	Polyamide (PA66), Nylon 6/6	Brass	Thermoplastic Resin
Flammability Rating	UL94 V-0	Not specified	UL94 V-0	UL94 V-0
RoHS Status	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant
Product Status	Active	Active	Active	Active

Engineering Selection Recommendations

Amphenol Anytek TS05715A0000G is the primary substitute for the Phoenix Contact 1792045. Both components share identical pitch (0.197" / 5.00mm), mounting configuration (free-hanging in-line plug), wire entry angle (90°), termination method (screw-rising cage clamp), and flammability rating (UL94 V-0). Both are ROHS3 compliant and actively produced. The TS05715A0000G accommodates wire gauges 12-24 AWG, which overlaps the 1792045 range, and maintains M3 screw specifications. This substitute is suitable for direct replacement in applications where the wire gauge requirement does not exceed 24 AWG.

On Shore Technology OSTTS05515A is a secondary substitute suitable for applications where minor pitch variation (0.200" vs. 0.197") is acceptable. The OSTTS05515A maintains free-hanging plug configuration, female socket type, and screw termination. Wire gauge compatibility (12-24 AWG) and UL94 V-0 flammability rating align with the primary application requirements. ROHS3 compliance and active product status confirm suitability for new designs.

TE Connectivity 282847-5 is applicable only in applications where the mounting configuration can be changed from free-hanging (in-line) to through-hole PCB mounting. The 282847-5 is a wire-to-board connector with 35° angle orientation, not a plug configuration. This part is suitable for redesigned assemblies incorporating PCB-mounted receptacles rather than free-hanging connectors.

Frequently Asked Questions (FAQ)

Q: Can the Amphenol Anytek TS05715A0000G directly replace the Phoenix Contact 1792045 in all applications?

A: The TS05715A0000G is a direct mechanical and electrical substitute for applications using wire gauges within the 12-24 AWG range. If your application requires wire gauges larger than 24 AWG (up to 30 AWG supported by the 1792045), the TS05715A0000G is not suitable. Both components share identical pitch, mounting type, wire entry angle, and termination method.

Q: What is the significance of the pitch difference between the 1792045 (5.00mm) and the OSTTS05515A (5.08mm)?

A: The pitch difference of 0.08mm (0.003") is within standard connector mating tolerances and does not prevent physical mating between plug and receptacle. However, connector pairs must be from the same manufacturer series to ensure proper alignment and contact engagement. Mixing pitch standards across different manufacturer series is not recommended.

Q: Is the TE Connectivity 282847-5 a suitable substitute for the Phoenix Contact 1792045?

A: The 282847-5 is not a direct substitute. It is a wire-to-board terminal block designed for through-hole PCB mounting with a 35° angle orientation, whereas the 1792045 is a free-hanging in-line plug. The 282847-5 is applicable only if your application design can accommodate a board-mounted receptacle instead of a free-hanging connector.

Q: What are the critical parameters that determine substitutability?

A: Substitutability is determined by: (1) number of positions (5 required), (2) pitch specification (5.00mm or 5.08mm acceptable), (3) mounting type (free-hanging in-line preferred), (4) termination method (screw-based cage clamp), (5) wire gauge compatibility, (6) voltage and current ratings, and (7) flammability certification (UL94 V-0). Deviations from these parameters require application-specific engineering evaluation.

Q: Are all substitute parts ROHS3 compliant?

A: Yes. The Phoenix Contact 1792045, Amphenol Anytek TS05715A0000G, On Shore Technology OSTTS05515A, and TE Connectivity 282847-5 are all ROHS3 compliant and suitable for applications with RoHS regulatory requirements.

Q: What torque specification should be used when installing the Amphenol Anytek TS05715A0000G?

A: The TS05715A0000G specifies 0.4 Nm (4.6 Lb-In) screw torque, which differs from the Phoenix Contact 1792045 specification of 0.5-0.6 Nm (4.4-5.3 Lb-In). Adhere to the TS05715A0000G torque specification when using this substitute to prevent over-tightening or under-tightening of the M3 screw.
