TE Connectivity AMP Connectors 177983-3 Equivalent & Substitute Parts

Part Overview

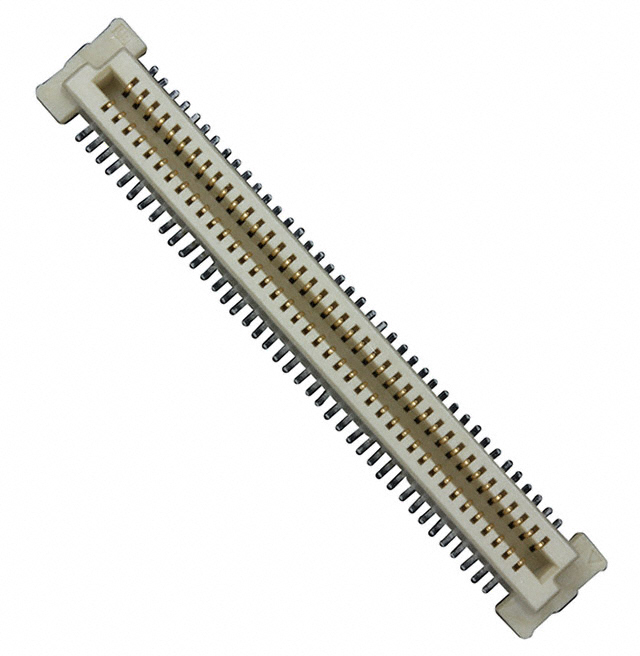

The TE Connectivity AMP Connectors 177983-3 is an 80 position rectangular connector receptacle with outer shroud contacts designed for surface mount applications. This connector features a 0.031" (0.80mm) pitch, dual-row configuration, and gold-plated contacts with board guide features. The part is classified as obsolete, which necessitates identification of active equivalent alternatives to ensure continued design support and procurement availability.

Substiute Parts

177983-3

TE Connectivity AMP ConnectorsIn Stock: 1053177983-3 Datasheet

Current PartRFQ

5177983-3

TE Connectivity AMP ConnectorsIn Stock: 75445177983-3 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of rectangular connectors is determined by strict equivalence across electrical and mechanical parameters. The following criteria establish substitutability for the 177983-3:

Critical Matching Parameters:

• Connector type (Receptacle, Outer Shroud Contacts)
• Number of positions (80)
• Pitch specification (0.031" / 0.80mm)
• Number of rows (2)
• Mounting technology (Surface Mount)
• Contact finish material and thickness (Gold, 8.00µin)
• Height above board (0.148" / 3.75mm)
• Mated stacking height range (5mm, 6mm, 7mm, 8mm)
• Board guide feature presence

The substitute part 5177983-3 maintains complete electrical and mechanical compatibility with the original 177983-3 across all specified parameters. The primary distinction is product status and regulatory compliance, not functional or dimensional characteristics.

Parameter Comparison

Engineering Selection Recommendations

The 5177983-3 serves as the direct active equivalent to the obsolete 177983-3. Both parts are manufactured by TE Connectivity AMP Connectors and maintain identical electrical and mechanical specifications across all functional parameters.

Product Status Consideration: The 177983-3 is classified as obsolete, while the 5177983-3 is active. Active product status ensures ongoing manufacturer support, availability, and compliance with current industry standards.

Regulatory Compliance: The 5177983-3 is ROHS3 compliant, whereas the 177983-3 is RoHS non-compliant. This distinction is significant for applications subject to RoHS regulations and environmental compliance requirements. Both parts share identical ECCN (EAR99) and HTSUS (8536.69.4040) classifications.

Packaging and Inventory: The 5177983-3 is supplied in tube packaging with 7500 pieces available in stock, compared to the 177983-3 supplied with 967 pieces in stock. The substitute part offers superior procurement availability.

For new designs or component refresh cycles, the 5177983-3 is the appropriate selection. For existing applications currently using the 177983-3, direct substitution is electrically and mechanically valid without design modification.

Frequently Asked Questions (FAQ)

Q: Are the 177983-3 and 5177983-3 electrically interchangeable?

A: Yes. Both parts are 80 position rectangular connectors with identical pitch (0.031" / 0.80mm), contact finish (gold, 8.00µin thickness), and electrical specifications. No circuit design changes are required for substitution.

Q: What are the mechanical compatibility requirements for substitution?

A: The substitute part 5177983-3 maintains identical mechanical specifications including mounting type (surface mount), height above board (0.148" / 3.75mm), mated stacking heights (5mm, 6mm, 7mm, 8mm), and board guide features. PCB footprints and mating interface designs remain unchanged.

Q: Why is the 177983-3 listed as obsolete?

A: The 177983-3 is classified as obsolete by TE Connectivity. The 5177983-3 represents the active product line continuation with identical functional specifications and improved regulatory compliance.

Q: Does the RoHS compliance difference affect compatibility?

A: RoHS compliance status does not affect electrical or mechanical compatibility. The difference reflects manufacturing process compliance with environmental regulations. The 5177983-3 ROHS3 compliance is advantageous for applications subject to RoHS requirements.

Q: What is the difference in packaging between these parts?

A: The 177983-3 is supplied in standard packaging, while the 5177983-3 is supplied in tube packaging. Both contain the same connector component; packaging format differs only for handling and storage purposes.

Q: Can I use the 5177983-3 in existing designs currently specified for the 177983-3?

A: Yes. The 5177983-3 is a direct substitute with identical electrical and mechanical parameters. No design modifications, PCB layout changes, or firmware updates are required.

Q: Are there any performance differences between these parts?

A: No performance differences exist. Both parts are manufactured to identical specifications for contact resistance, signal integrity, mating cycles, and environmental performance within the Free Height (FH) series.

Q: What is the moisture sensitivity level for both parts?

A: Both the 177983-3 and 5177983-3 are classified as MSL 1 (Unlimited), indicating no moisture sensitivity restrictions for storage, handling, or assembly processes.
