TE Connectivity AMP Connectors 1776139-5 Equivalent & Substitute Parts

Part Overview

The TE Connectivity AMP Connectors 1776139-5 is a 5 Position Terminal Block Header with male pins, shrouded on 2 sides, designed for vertical through-hole mounting with 0.200" (5.08mm) pitch spacing. This component operates at 15 A (UL) and 300 V (UL) with an operating temperature range of -40°C to 110°C. The part is Active in product status and RoHS Compliant. Equivalent and substitute parts are identified to support procurement flexibility, inventory management, and design alternatives when the primary part is unavailable or when design specifications permit functional alternatives.

Substiute Parts

1776139-5

TE Connectivity AMP ConnectorsIn Stock: 9861776139-5 Datasheet

Current PartRFQ

0395310005

MolexIn Stock: 55930395310005 Datasheet

SimilarRFQ

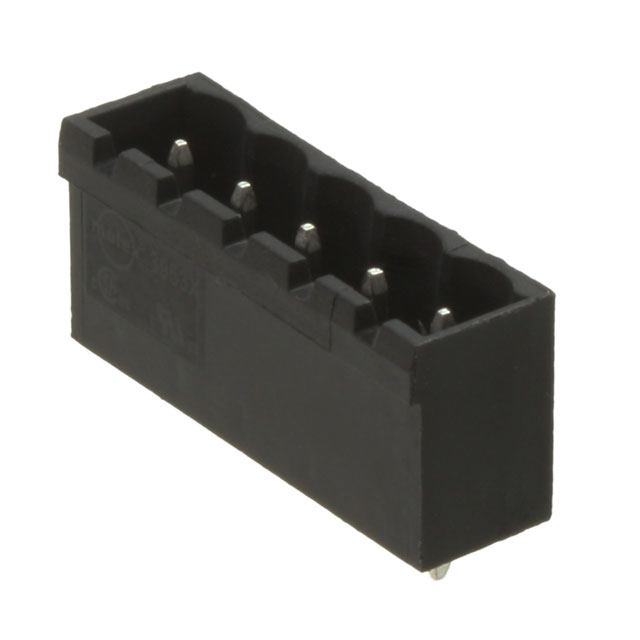

0395311005

MolexIn Stock: 11830395311005 Datasheet

SimilarRFQ

1753495

Phoenix ContactIn Stock: 11881753495 Datasheet

SimilarRFQ

ELFH05250

Amphenol PCDIn Stock: 1924ELFH05250 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the 1776139-5 terminal block header are grouped based on electrical and mechanical compatibility within the following criteria:

Primary Substitution Criteria:

• Number of Positions: 5
• Pitch: 0.200" (5.08mm) or 0.197" (5.00mm)
• Header Orientation: Vertical
• Mounting Type: Through Hole
• Termination Style: Solder
• Current Rating: 12 A minimum (UL)
• Voltage Rating: 300 V minimum (UL)
• Material Flammability Rating: UL94 V-0
• Contact Mating Finish: Tin

Substitution Variations Permitted:

• Shrouding configuration (2-side or 4-side shrouded)
• Contact material (Copper Alloy or Brass)
• Housing material (Polyamide PA, Nylon, PA66, Nylon 6/6, or Polybutylene Terephthalate PBT)
• Contact tail length variations
• Insulation height variations
• Operating temperature range (minimum -40°C to maximum 105°C or higher)

Non-Substitutable Parameters:

• Number of positions must remain 5
• Pitch tolerance must be within 5.08mm ±0.03mm or 5.00mm ±0.03mm
• Vertical orientation is required
• Through-hole mounting is required
• Solder termination is required

Parameter Comparison

Engineering Selection Recommendations

Direct Equivalent (Highest Compatibility):

The Molex 0395310005 terminal block header is the closest direct equivalent to the 1776139-5. Both components share identical electrical specifications (15 A UL, 300 V UL), pitch (5.08mm), position count (5), orientation (vertical), and shrouding configuration (2-side). Both are Active products with RoHS3 compliance. The primary difference is the operating temperature range, where the 1776139-5 extends to 110°C while the 0395310005 operates to 105°C. For applications within the -40°C to 105°C range, this substitute is fully compatible.

Alternative with Enhanced Shrouding:

The Molex 0395311005 and Amphenol PCD ELFH05250 provide 4-side shrouding compared to the 2-side shrouding of the 1776139-5. Both maintain the same electrical ratings (15 A UL, 300 V UL) and 5.08mm pitch. The 4-side shrouding offers increased mechanical protection and isolation. These alternatives are suitable when enhanced EMI shielding or physical protection is required. Both are Active products with RoHS3 compliance.

Pitch Variant:

The Phoenix Contact 1753495 operates at a slightly different pitch (5.00mm versus 5.08mm) and reduced current rating (12 A UL versus 15 A UL). This part is suitable only for applications where the 5.00mm pitch is compatible with the mating connector and where the 12 A current rating is sufficient. The part is Active and ROHS3 compliant.

Selection Criteria:

• Use 0395310005 (Molex) for direct replacement with identical shrouding and electrical performance within -40°C to 105°C operating range
• Use 0395311005 (Molex) or ELFH05250 (Amphenol PCD) when 4-side shrouding is required
• Use 1753495 (Phoenix Contact) only when 5.00mm pitch compatibility is confirmed and 12 A current rating is acceptable
• All substitutes maintain UL94 V-0 flammability rating and tin contact mating finish
• All substitutes are Active products with current RoHS compliance

Frequently Asked Questions (FAQ)

Q: Can the Molex 0395310005 be used as a direct replacement for the TE Connectivity 1776139-5?

A: Yes, the Molex 0395310005 is a direct functional equivalent. Both components have identical electrical ratings (15 A UL, 300 V UL), pitch (5.08mm), position count (5), vertical orientation, through-hole mounting, solder termination, and 2-side shrouding. The operating temperature range of the 0395310005 extends to 105°C, which covers most applications. If your application requires operation above 105°C up to 110°C, the 1776139-5 is required.

Q: What is the difference between 2-side and 4-side shrouding?

A: 2-side shrouding provides insulation protection on two opposing sides of the terminal block header. 4-side shrouding provides protection on all four sides, offering enhanced mechanical protection, improved EMI isolation, and reduced risk of accidental contact. The 1776139-5 has 2-side shrouding, while the Molex 0395311005 and Amphenol PCD ELFH05250 have 4-side shrouding. Selection depends on application requirements for physical protection and electromagnetic compatibility.

Q: Is the Phoenix Contact 1753495 compatible with the 1776139-5?

A: The Phoenix Contact 1753495 is compatible with caution. It maintains the same 5-position vertical through-hole configuration and electrical safety ratings (300 V UL). However, it operates at a different pitch (5.00mm versus 5.08mm) and has a reduced current rating (12 A UL versus 15 A UL). Compatibility depends on whether your mating connector accepts the 5.00mm pitch and whether your application current does not exceed 12 A. Verify connector compatibility before substitution.

Q: What does RoHS3 compliance mean compared to RoHS Compliant?

A: Both designations indicate compliance with Restriction of Hazardous Substances regulations. RoHS3 refers to the third iteration of the RoHS directive (2011/65/EU as amended by 2015/863/EU), which includes additional restricted substances beyond the original RoHS standard. All substitute parts listed are RoHS3 compliant, meeting current regulatory requirements. The 1776139-5 is listed as RoHS Compliant, which is also acceptable for most applications.

Q: Can I use the Amphenol PCD ELFH05250 in place of the 1776139-5?

A: The Amphenol PCD ELFH05250 is functionally compatible for most applications. It maintains the same electrical ratings (15 A UL, 300 V UL), pitch (5.08mm), position count (5), and vertical through-hole configuration. The primary difference is 4-side shrouding versus 2-side shrouding on the 1776139-5. The ELFH05250 has a different insulation height (0.319" versus 0.472"), which may affect PCB layout and connector mating. Verify mechanical fit and shrouding requirements before substitution.

Q: Are all substitute parts currently in production?

A: Yes, all substitute parts listed are Active products in current production status. This ensures ongoing availability and support from manufacturers. Inventory levels vary by part and distributor.

Q: What is the significance of the contact material difference (Copper Alloy versus Brass)?

A: Both Copper Alloy and Brass are acceptable contact materials for terminal block headers. Brass (used in Molex and Amphenol parts) offers good electrical conductivity and corrosion resistance. Copper Alloy (used in the 1776139-5) provides similar performance characteristics. Both materials are tin-plated for enhanced contact reliability. The choice between these materials does not affect functional compatibility for standard applications.

Q: Do all substitute parts have the same moisture sensitivity level?

A: Most substitute parts have MSL 1 (Unlimited), indicating no moisture sensitivity concerns. The Amphenol PCD ELFH05250 is listed as Not Applicable for MSL, which indicates it does not require moisture-sensitive device handling. This is not a compatibility concern and does not affect substitution suitability.
