Phoenix Contact 1775680 Heavy Duty Connector Hood - Equivalent & Substitute Parts

Part Overview

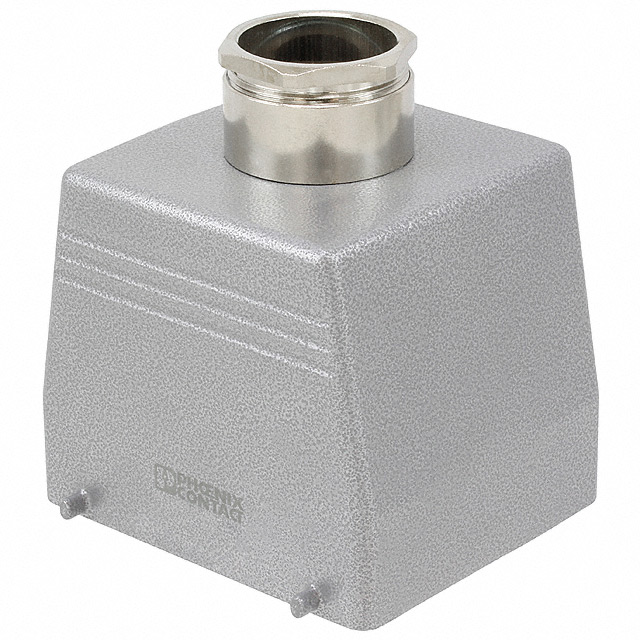

The Phoenix Contact 1775680 is a Heavy Duty Connector Hood designed for top entry applications with PG29 thread size and B32 form factor. This connector provides IP65 ingress protection (dust tight, water resistant) and operates across -40°C to 125°C. The product is currently obsolete, making identification of suitable substitute components essential for system maintenance, repair, and new design implementations where equivalent functionality is required.

Substiute Parts

1775680

Phoenix ContactIn Stock: 8201775680 Datasheet

Current PartRFQ

1424827

Phoenix ContactIn Stock: 6531424827 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the Phoenix Contact 1775680 is determined by strict alignment of the following critical parameters:

• Connector Type & Style: Must be Hood connector with Top Entry configuration
• Size Designation: Must be B32 form factor
• Thread Size: Must be PG29 for mechanical compatibility
• Series Compatibility: HEAVYCON® B series maintains design consistency
• Ingress Protection: Minimum IP65; higher ratings (IP66/IP67) provide enhanced environmental protection and are acceptable substitutes
• Operating Temperature Range: Must support -40°C to 125°C minimum
• Housing Material & Construction: Aluminum die cast with appropriate finish
• Regulatory Compliance: RoHS Compliant status required

The substitute part 1424827 meets all critical substitution criteria while providing enhanced ingress protection (IP66/IP67) and salt water resistance features.

Parameter Comparison

Engineering Selection Recommendations

The Phoenix Contact 1424827 is the qualified substitute for the obsolete 1775680 based on the following engineering criteria:

Functional Equivalence: Both components share identical connector type, style, size, thread size, and locking mechanism within the HEAVYCON® B series. The B32 form factor and PG29 thread ensure mechanical interchangeability.

Enhanced Environmental Protection: The substitute provides IP66/IP67 ingress protection compared to the original IP65 rating. This represents an upgrade in dust and water resistance capability, with IP67 providing temporary immersion protection. This enhancement is suitable for applications requiring higher environmental durability.

Regulatory Compliance: Both parts maintain RoHS Compliant status, ensuring regulatory alignment for new designs and replacements.

Thermal Performance: Identical operating temperature range (-40°C to 125°C) confirms thermal compatibility across all application scenarios.

Production Status: The substitute is in active production with confirmed inventory availability (608 pcs), whereas the original part is obsolete. This ensures long-term supply chain reliability for ongoing maintenance and new implementations.

Material & Construction: Identical aluminum die cast housing construction maintains structural and thermal characteristics of the original design.

Frequently Asked Questions (FAQ)

Q: Can the 1424827 directly replace the 1775680 in existing installations?

A: Yes. Both components share identical connector type, style, size (B32), thread size (PG29), and locking mechanism. The substitute provides enhanced IP66/IP67 ingress protection compared to the original IP65 rating. Minor dimensional variations (94.00 x 82.50 x 94.00 mm vs. 94.60 x 79.00 x 80.00 mm) require verification of mounting clearance in confined spaces.

Q: What is the significance of the IP66/IP67 upgrade in the substitute part?

A: IP66 provides protection against powerful water jets from any direction. IP67 adds temporary immersion protection (up to 1 meter for 30 minutes). These ratings exceed the original IP65 specification (dust tight, water resistant) and are suitable for applications with higher environmental exposure requirements.

Q: Are there any compatibility concerns with the dimensional differences?

A: The substitute is slightly larger (94.00 x 82.50 x 94.00 mm vs. 94.60 x 79.00 x 80.00 mm). Verify that mounting locations, cable routing, and panel cutouts accommodate the increased dimensions. The PG29 thread size remains identical, ensuring threaded connection compatibility.

Q: Does the substitute include salt water resistance?

A: Yes. The 1424827 includes salt water resistant features, providing additional corrosion protection compared to the original part. This is beneficial for marine and coastal applications.

Q: What is the inventory status of the substitute part?

A: The 1424827 is in active production with 608 pcs currently in stock. The original 1775680 is obsolete with limited remaining inventory (799 pcs). For new designs and long-term supply assurance, the substitute is the recommended choice.

Q: Are both parts RoHS Compliant?

A: Yes. Both the 1775680 and 1424827 are RoHS Compliant, ensuring regulatory alignment for applications subject to RoHS requirements.

Q: What is the operating temperature range for the substitute?

A: The 1424827 operates across -40°C to 125°C, identical to the original part. This ensures thermal compatibility across all application scenarios.
