Phoenix Contact 1773093 Female Insert 3 Position Screw Connector - Equivalent & Substitute Parts

Part Overview

The Phoenix Contact 1773093 is a female insert connector with 3 screw termination positions, part of the HEAVYCON® A3 series for heavy-duty applications. This component is classified as obsolete, making identification of suitable substitute parts essential for ongoing system maintenance and new design implementations. The part operates within industrial voltage and current specifications suitable for control and power distribution applications.

Substiute Parts

1773093

Phoenix ContactIn Stock: 8101773093 Datasheet

Current PartRFQ

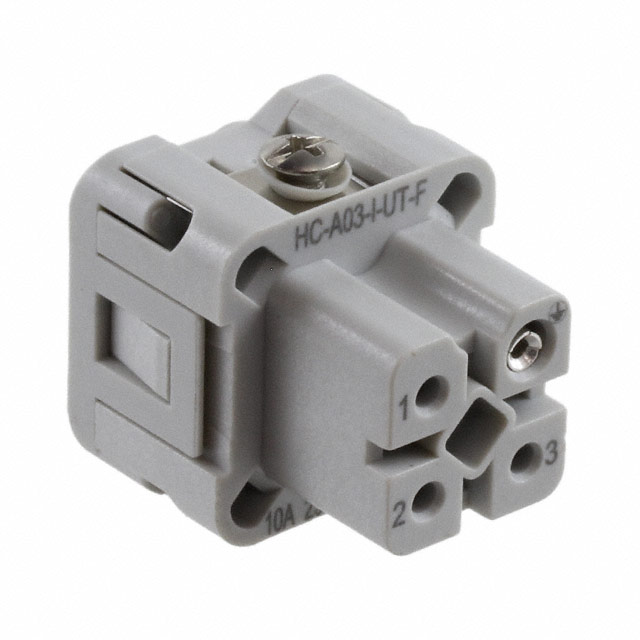

1585223

Phoenix ContactIn Stock: 9511585223 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 1773093 is determined by the following critical parameters:

• Series compatibility: HEAVYCON® A3
• Connector type: Insert
• Gender: Female
• Size: D7
• Termination style: Screw
• Voltage rating: Minimum 600V
• Operating temperature range: -40°C to 125°C or broader
• Contact material and finish: Copper Alloy with Silver finish
• Flammability rating: UL94 V-0

The Phoenix Contact 1585223 qualifies as a substitute based on these core compatibility criteria. While the 1585223 offers enhanced specifications (24A current rating versus 10A, and includes a ground position), it maintains full compatibility with the mechanical and electrical envelope of the original part within the HEAVYCON® A3 series.

Parameter Comparison

Engineering Selection Recommendations

The Phoenix Contact 1585223 is the designated substitute for the obsolete 1773093. Selection of the 1585223 is supported by the following factors:

• Active product status ensures ongoing availability and supply chain continuity
• ROHS3 compliance exceeds the RoHS compliance of the original part, meeting current regulatory requirements
• Identical mechanical interface (D7 size, HEAVYCON® A3 series) ensures direct physical compatibility
• Equivalent voltage and temperature ratings maintain operational envelope compatibility
• Enhanced current rating (24A versus 10A) provides increased capacity without compromising the original application requirements
• Polycarbonate housing material offers improved durability compared to polyamide

The addition of a ground position in the 1585223 does not preclude its use in applications requiring only three positions; the ground contact can remain unused in such configurations.

Frequently Asked Questions (FAQ)

Q: Can the 1585223 directly replace the 1773093 in existing assemblies?

A: Yes. Both parts share identical mechanical dimensions (D7 size), series designation (HEAVYCON® A3), and core electrical specifications (600V, -40°C to 125°C). The 1585223 maintains full physical and electrical compatibility.

Q: What is the significance of the additional ground position in the 1585223?

A: The 1585223 includes a dedicated ground position, increasing total positions from 3 to 3+Ground. In applications requiring only three signal or power connections, the ground contact remains available but unused, presenting no functional impact.

Q: How do the current ratings differ, and does this affect substitution?

A: The 1773093 is rated for 10A, while the 1585223 is rated for 24A. The higher current rating of the substitute part does not restrict its use in lower-current applications. The 1585223 remains fully compatible with circuits designed for 10A operation.

Q: What is the difference between RoHS and ROHS3 compliance?

A: ROHS3 represents the current regulatory standard for Restriction of Hazardous Substances, incorporating updated substance restrictions. The 1585223 meets ROHS3 requirements, ensuring compliance with current and future regulatory frameworks.

Q: Are there packaging differences between these parts?

A: The 1773093 is supplied in standard packaging, while the 1585223 is supplied in bulk packaging. Bulk packaging does not affect component functionality or electrical characteristics.

Q: Why is the 1773093 classified as obsolete?

A: Obsolescence indicates that Phoenix Contact has discontinued production of this part number. The 1585223 represents the active product line continuation within the HEAVYCON® A3 series, ensuring long-term availability for new designs and maintenance applications.
