Phoenix Contact 1772230 Equivalent & Substitute Parts

Part Overview

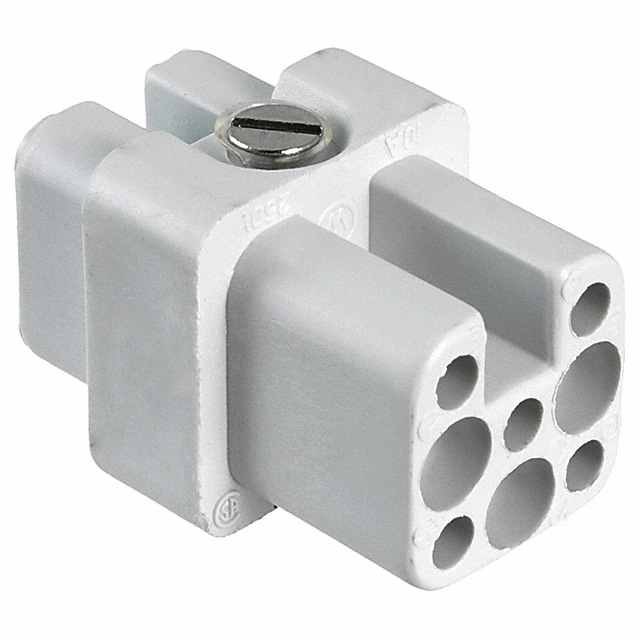

The Phoenix Contact 1772230 is a female insert connector without contacts for the HEAVYCON® D7 heavy duty connector series. This component is designed for 7-position crimp termination applications with a 600V voltage rating and 10A current capacity. The part is currently listed as obsolete, making identification of suitable substitute components essential for ongoing system maintenance and new design implementations. The HEAVYCON® D7 series provides robust connectivity solutions for industrial applications requiring reliable heavy duty connections.

Substiute Parts

1772230

Phoenix ContactIn Stock: 10321772230 Datasheet

Current PartRFQ

1584347

Phoenix ContactIn Stock: 8601584347 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the Phoenix Contact 1772230 is determined by the following critical parameters:

Primary Compatibility Criteria:

• Series: HEAVYCON® D7 (maintains mechanical and electrical compatibility)
• Connector Type: Insert without Contacts (functional equivalence)
• Gender: Female (electrical interface requirement)
• Size: D7 (physical form factor)
• Termination Style: Crimp (assembly method compatibility)
• Contact Type: CK 1.6-ED (electrical contact specification)
• Operating Temperature Range: -40°C to 125°C (environmental tolerance)
• Housing Material: Polyamide (PA), Nylon (material specification)
• Material Flammability Rating: UL94 V-0 (safety compliance)

Secondary Compatibility Criteria:

• Voltage Rating: Substitute must meet or exceed 600V
• Current Rating: Substitute must meet or exceed 10A
• RoHS Compliance: Substitute must maintain RoHS compliance status
• Moisture Sensitivity Level: MSL 1 (Unlimited)

The Phoenix Contact 1584347 qualifies as a substitute based on these parameters. While it features a 7+Ground position configuration and a reduced voltage rating of 250V, it maintains all primary compatibility criteria and meets the secondary electrical requirements for applications not requiring the full 600V specification.

Parameter Comparison

Engineering Selection Recommendations

The Phoenix Contact 1584347 is the designated substitute for the obsolete 1772230. Selection of this substitute is supported by the following engineering factors:

Product Status Consideration: The 1772230 is obsolete, while the 1584347 maintains active product status with current manufacturing and inventory availability (771 pcs in stock).

Compliance and Certification: Both parts maintain UL94 V-0 flammability rating and comply with RoHS requirements. The 1584347 carries ROHS3 compliance, representing current regulatory alignment.

Electrical Specification Alignment: The 1584347 maintains the 10A current rating and -40°C to 125°C operating temperature range. The voltage rating reduction from 600V to 250V requires application-level verification to confirm compatibility with system voltage requirements.

Mechanical and Functional Compatibility: Both parts share identical series designation (HEAVYCON® D7), connector type (Insert without Contacts), gender (Female), size (D7), termination style (Crimp), and contact type (CK 1.6-ED), ensuring mechanical interchangeability within the D7 connector system.

Position Configuration Difference: The 1584347 incorporates a dedicated ground position (7+Ground) compared to the standard 7-position configuration of the 1772230. This addition provides enhanced grounding capability for applications requiring dedicated ground connectivity.

Frequently Asked Questions (FAQ)

Q: Can the Phoenix Contact 1584347 directly replace the 1772230 in existing applications?

A: Direct replacement is possible for applications operating at 250V or below. The 1584347 maintains mechanical compatibility through identical D7 series, size, gender, and crimp termination specifications. The additional ground position in the 1584347 does not prevent physical installation in D7 connector systems. However, applications requiring the full 600V rating of the original 1772230 require voltage specification verification before substitution.

Q: What is the significance of the 7+Ground position configuration in the 1584347?

A: The 7+Ground designation indicates seven standard signal positions plus one dedicated ground position. This configuration provides explicit grounding capability within the connector insert, which may offer advantages for noise reduction and safety grounding in industrial applications. The additional ground position does not affect mechanical compatibility with D7 connector housings.

Q: Are there any compliance differences between the 1772230 and 1584347?

A: Both parts maintain UL94 V-0 flammability certification and RoHS compliance. The 1584347 carries ROHS3 designation, representing alignment with current regulatory requirements. Both parts feature MSL 1 (Unlimited) moisture sensitivity level, indicating no moisture sensitivity restrictions for storage and handling.

Q: What is the inventory status for the substitute part?

A: The Phoenix Contact 1584347 is currently in active production with 771 pieces available in new original stock. The original 1772230 is obsolete with 1010 pieces remaining in inventory. For new designs and ongoing procurement, the 1584347 is the recommended selection.

Q: How do the operating temperature ranges compare?

A: Both the 1772230 and 1584347 operate across the identical temperature range of -40°C to 125°C, ensuring thermal compatibility for industrial applications across standard operating environments.

Q: Are the contact types identical between the two parts?

A: Yes, both parts utilize the CK 1.6-ED contact type, ensuring electrical contact compatibility and interchangeability within the HEAVYCON® D7 connector system.
