Phoenix Contact 1767717 Terminal Block Plug - Equivalent & Substitute Parts

Part Overview

The Phoenix Contact 1767717 is a 6-position terminal block plug with female sockets, 0.150" (3.81mm) pitch, designed for 180° free-hanging in-line applications. This component features screw-rising cage clamp termination and supports 8A at 320V per IEC standards. The part is classified as obsolete, making identification of active equivalent models essential for procurement and system continuity.

Substiute Parts

1767717

Phoenix ContactIn Stock: 11701767717 Datasheet

Current PartRFQ

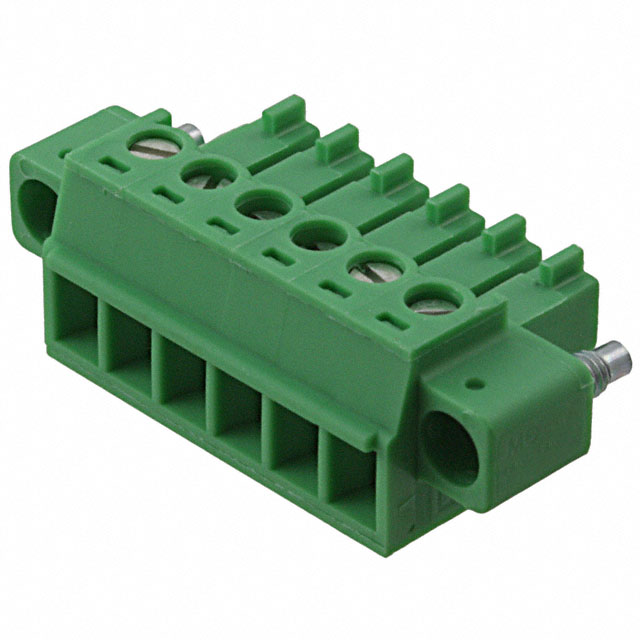

1827745

Phoenix ContactIn Stock: 36051827745 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the Phoenix Contact 1767717 is determined by strict equivalence across the following critical parameters:

• Manufacturer and Series: Phoenix Contact COMBICON MC
• Connector Type: 6-position plug with female sockets
• Pitch and Spacing: 0.150" (3.81mm)
• Electrical Performance: 8A at 320V (IEC)
• Termination Method: Screw-rising cage clamp
• Mounting Configuration: Free hanging in-line with 180° wire entry
• Housing Material: Polyamide (PA), Nylon with UL94 V-0 rating
• Wire Compatibility: 0.14-1.5mm² wire gauge range

The substitute part Phoenix Contact 1827745 maintains full equivalence across all critical mechanical and electrical parameters. The primary distinction is product status: 1767717 is obsolete while 1827745 is active, with enhanced documentation including UL compliance ratings and REACH status confirmation.

Parameter Comparison

Engineering Selection Recommendations

Phoenix Contact 1827745 is the direct active equivalent for obsolete part 1767717. Both components are identical in mechanical form factor, electrical performance, and termination methodology within the COMBICON MC series.

Selection of 1827745 is supported by:

• Active product status with current manufacturing support
• Enhanced regulatory documentation including explicit UL compliance ratings (8A at 300V)
• ROHS3 compliance confirmation, superseding the RoHS Compliant designation of the obsolete part
• REACH status explicitly confirmed as unaffected
• Identical electrical performance under IEC standards (8A at 320V)
• Full mechanical and dimensional compatibility
• Equivalent wire gauge acceptance (0.14-1.5mm²)

No functional or performance degradation occurs with this substitution. The parts are mechanically and electrically interchangeable for all applications previously served by 1767717.

Frequently Asked Questions (FAQ)

Q: Are parts 1767717 and 1827745 mechanically interchangeable?

A: Yes. Both components share identical pitch (0.150" / 3.81mm), position count (6), mounting type (free hanging in-line), wire entry angle (180°), and housing material (Polyamide PA/Nylon). Physical installation and mating are identical.

Q: What is the primary reason for substitution?

A: Part 1767717 is classified as obsolete. Part 1827745 is the active equivalent from Phoenix Contact, ensuring continued procurement availability and manufacturer support.

Q: Are the electrical ratings identical?

A: Both parts meet 8A at 320V per IEC standards. Part 1827745 additionally specifies UL compliance at 8A and 300V, providing expanded regulatory documentation.

Q: Can 1827745 accept the same wire gauges as 1767717?

A: Yes. Both parts accept wire gauges from 0.14-1.5mm². Part 1827745 additionally specifies the equivalent AWG range (14-30 AWG) for reference.

Q: What is the packaging difference?

A: Part 1767717 packaging is not specified. Part 1827745 is supplied in bulk packaging. Confirm packaging requirements with your procurement specification.

Q: Are there compliance differences?

A: Part 1827745 provides explicit ROHS3 compliance and REACH unaffected status. Part 1767717 is listed as RoHS Compliant without version specification. Both meet UL94 V-0 flammability requirements.

Q: Is torque specification the same?

A: Yes. Both parts specify identical screw torque of 0.22-0.25 Nm (1.9-2.2 Lb-In) for M2 fasteners.
