TE Connectivity AMP Connectors 1-767007-1 Equivalent & Substitute Parts

Part Overview

The TE Connectivity AMP Connectors 1-767007-1 is a 152 Position Connector Plug with outer shroud contacts designed for surface mount applications. This rectangular connector features a MICTOR series configuration with gold-plated contacts and is rated for dual-row, 0.025" pitch interconnections. The part is classified as obsolete, necessitating identification of active equivalent alternatives to maintain design continuity and ensure procurement availability for new production and legacy system support.

Substiute Parts

1-767007-1

TE Connectivity AMP ConnectorsIn Stock: 7991-767007-1 Datasheet

Current PartRFQ

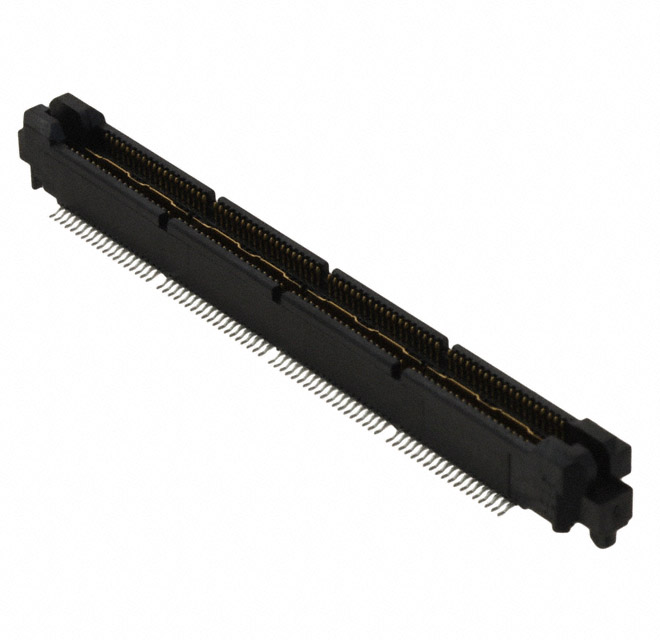

1-5767007-1

TE Connectivity AMP ConnectorsIn Stock: 10701-5767007-1 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the 1-767007-1 is determined by strict equivalence across all critical electrical and mechanical parameters. The substitute part must maintain identical specifications for connector type, position count, pitch, row configuration, mounting methodology, contact material and thickness, and physical dimensions including height above board and mated stacking heights. The MICTOR series designation and board guide with ground bus plane features are mandatory for functional compatibility.

The substitute part 1-5767007-1 satisfies all substitution criteria through complete parameter alignment with the main part. The primary distinction between these parts is product status and compliance certification, with the substitute representing an active, RoHS-compliant alternative to the obsolete original part.

Parameter Comparison

Engineering Selection Recommendations

The substitute part 1-5767007-1 is the direct equivalent for the obsolete 1-767007-1. Selection of the substitute is based on the following engineering criteria:

Product Status: The substitute part maintains active product status with TE Connectivity, ensuring ongoing availability and manufacturing support. The main part is classified as obsolete, creating procurement risk for new designs and production continuity.

Compliance Certification: The substitute part is RoHS Compliant, meeting current regulatory requirements for electronic components in most jurisdictions. The main part carries "Not applicable" RoHS status, reflecting its obsolete classification prior to widespread RoHS mandate implementation.

Electrical and Mechanical Equivalence: All critical parameters including connector type, position count, pitch, mounting configuration, contact material and thickness, and physical dimensions are identical between the main part and substitute. This ensures direct functional compatibility without design modification.

Export Classification: Both parts share identical ECCN (EAR99) and HTSUS (8536.69.4040) classifications, maintaining consistent regulatory treatment for international trade and logistics.

For new designs and production applications, the 1-5767007-1 substitute is the appropriate selection. For legacy system maintenance where the original 1-767007-1 is specified, the 1-5767007-1 provides full functional equivalence with enhanced compliance status.

Frequently Asked Questions (FAQ)

Q: Can the 1-5767007-1 substitute be used as a direct replacement for the 1-767007-1 in existing designs?

A: Yes. The substitute part is electrically and mechanically equivalent across all specified parameters. No design modifications are required for substitution. The connector type, position count, pitch, mounting type, contact finish, and physical dimensions are identical.

Q: What is the primary reason for substituting the 1-767007-1?

A: The 1-767007-1 is classified as obsolete. The 1-5767007-1 is an active product with current manufacturing support from TE Connectivity, ensuring reliable procurement for new production and ongoing system support.

Q: Are there differences in packaging between these parts?

A: The main part 1-767007-1 packaging is not specified in the available data. The substitute part 1-5767007-1 is packaged in Tube format. Packaging differences do not affect electrical or mechanical compatibility.

Q: Does the substitute part meet current regulatory requirements?

A: Yes. The 1-5767007-1 is RoHS Compliant, meeting current environmental and regulatory standards for electronic components. The original part carries "Not applicable" RoHS status due to its obsolete classification.

Q: Are the mated stacking heights identical between the two parts?

A: Yes. Both parts specify identical mated stacking heights of 6.6mm and 15.62mm, ensuring compatibility with existing connector interfaces and PCB layouts.

Q: What is the contact finish specification for both parts?

A: Both parts feature gold contact finish with a thickness of 30.0µin (0.76µm), providing identical electrical conductivity and corrosion resistance characteristics.

Q: Are there any differences in export classification between these parts?

A: No. Both parts share identical ECCN (EAR99) and HTSUS (8536.69.4040) classifications, maintaining consistent regulatory treatment for international trade.
