Phoenix Contact 1766796 Terminal Block Header - Equivalent & Substitute Parts

Part Overview

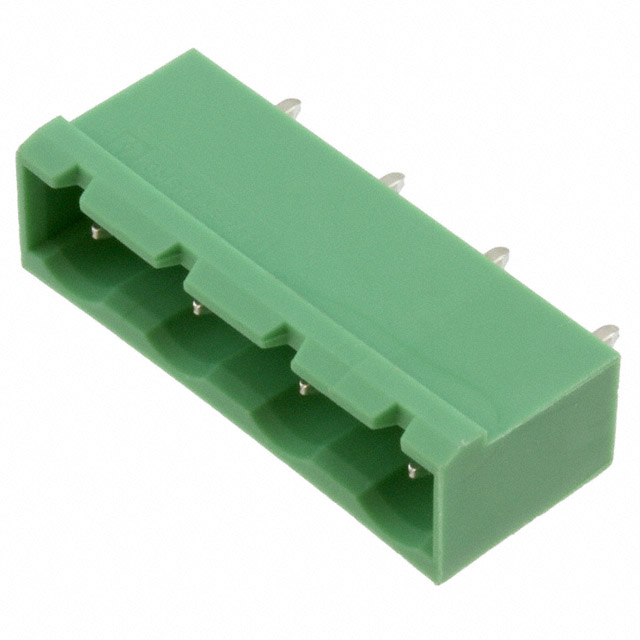

The Phoenix Contact 1766796 is a 4-position vertical terminal block header with 7.62mm pitch spacing, designed for solder termination and through-hole mounting. This component is part of the COMBICON GMSTBVA series and maintains active product status. Substitute parts are identified based on matching electrical ratings, mechanical compatibility, and form factor requirements for applications requiring equivalent connectivity solutions.

Substiute Parts

1766796

Phoenix ContactIn Stock: 8771766796 Datasheet

Current PartRFQ

1147200000

WeidmüllerIn Stock: 10971147200000 Datasheet

SimilarRFQ

1625270000

WeidmüllerIn Stock: 11761625270000 Datasheet

SimilarRFQ

1629150000

WeidmüllerIn Stock: 9371629150000 Datasheet

SimilarRFQ

691311400104

Würth ElektronikIn Stock: 2823691311400104 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the Phoenix Contact 1766796 are grouped based on the following critical parameters that determine functional equivalence:

Primary Matching Criteria:

• Number of positions: 4
• Header orientation: Vertical
• Type: Male pins, shrouded (4 side)
• Termination style: Solder
• Mounting type: Through hole
• Material flammability rating: UL94 V-0

Secondary Compatibility Factors:

• Pitch spacing (7.62mm primary; 5.08mm and 7.50mm as alternatives)
• Electrical ratings (current and voltage per IEC and UL standards)
• Contact tail length and insulation height
• RoHS and REACH compliance status

Substitutes are identified within the Weidmüller Omnimate SL series and Würth Elektronik WR-TBL Series 3114, which share the core mechanical and electrical architecture required for direct replacement or application-specific alternatives.

Parameter Comparison

Engineering Selection Recommendations

Direct Pitch-Matched Substitutes (7.62mm):

Weidmüller 1625270000 and Würth Elektronik 691311400104 are pitch-identical alternatives to the Phoenix Contact 1766796. Both maintain 0.300" (7.62mm) spacing, vertical orientation, and UL94 V-0 flammability compliance. The Weidmüller 1625270000 offers higher IEC voltage rating (800V vs. 630V) and equivalent UL ratings. The Würth Elektronik 691311400104 provides higher UL current capacity (20A vs. 15A) and ROHS3 compliance matching the original part.

Pitch-Variant Substitutes:

Weidmüller 1629150000 operates at 0.295" (7.50mm) pitch, introducing minimal spacing deviation while maintaining electrical equivalence and UL94 V-0 compliance. This part is suitable for applications where slight pitch tolerance is acceptable.

Weidmüller 1147200000 operates at 0.200" (5.08mm) pitch with higher current capacity (24A IEC, 18.5A UL). This substitute is applicable only when board layout accommodates reduced pitch spacing and higher current handling is required.

Compliance Considerations:

All substitute parts maintain UL94 V-0 flammability rating and active product status. The Phoenix Contact 1766796 and Würth Elektronik 691311400104 are both ROHS3 compliant. Weidmüller parts carry standard RoHS compliance. REACH status varies: Phoenix Contact and Würth Elektronik are unaffected; Weidmüller parts are unaffected except where noted.
