TE Connectivity 176292-9 Rectangular Connector Housing Equivalent & Substitute Parts

Part Overview

The TE Connectivity 176292-9 is a 2-position rectangular connector receptacle housing designed for the Universal Power series. This component functions as a panel-mount, snap-in receptacle housing with crimp-type tab contacts and latch lock fastening. The housing accommodates a 0.156" (3.96mm) pitch configuration and operates across a temperature range of -30°C to 105°C.

The 176292-9 is classified as an active product with ROHS3 compliance and unlimited moisture sensitivity rating (MSL 1). Substitute parts are identified to provide alternative sourcing options when the primary part number is unavailable or when specific packaging or color requirements necessitate component alternatives.

Substiute Parts

176292-9

TE Connectivity AMP ConnectorsIn Stock: 1024176292-9 Datasheet

Current PartRFQ

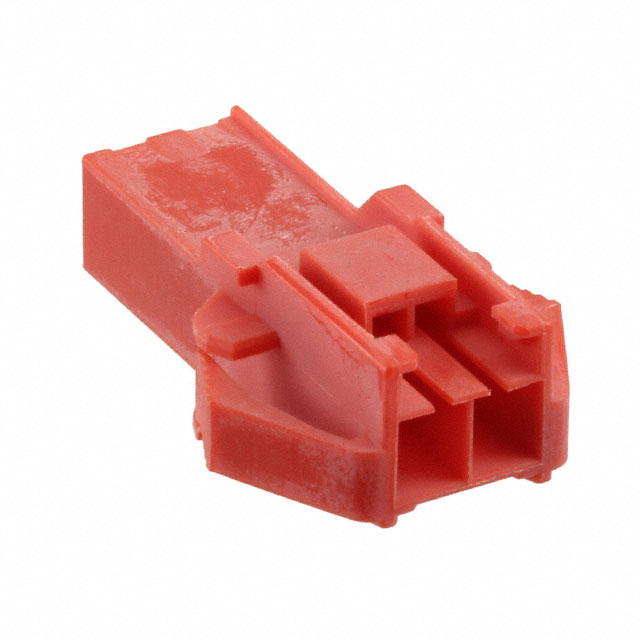

176292-2

TE Connectivity AMP ConnectorsIn Stock: 4287176292-2 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the TE Connectivity 176292-9 is determined by strict parametric equivalence across the following critical specifications:

Mandatory Matching Parameters:

• Connector type (Receptacle)
• Number of positions (2)
• Pitch specification (0.156" / 3.96mm)
• Contact type (Tab)
• Mounting configuration (Panel Mount, Snap-In)
• Contact termination method (Crimp)
• Fastening mechanism (Latch Lock)
• Insulation material (Polyamide PA66, Nylon 6/6)
• Operating temperature range (-30°C to 105°C)
• Series classification (Universal Power)

Non-Restrictive Parameters:

• Housing color
• Packaging format
• Inventory availability

The substitute part 176292-9 and 176292-2 share identical electrical and mechanical specifications. Differences exist only in housing color (black versus red) and packaging configuration (standard versus bulk), which do not affect functional compatibility or performance characteristics.

Parameter Comparison

Engineering Selection Recommendations

Both the 176292-9 and 176292-2 are active products with full ROHS3 compliance and identical electrical and mechanical specifications. Selection between these parts should be based on the following criteria:

176292-9 (Black Housing): Select this part number when black housing color is specified in the design documentation or when standard packaging quantities are required.

176292-2 (Red Housing): Select this part number when red housing color is required for circuit identification, color-coding protocols, or visual assembly guidance. This part is available in bulk packaging, which may be advantageous for high-volume production runs.

Both parts operate within the identical temperature range (-30°C to 105°C) and maintain full compliance with ROHS3 and MSL 1 specifications. The choice between these substitutes does not impact electrical performance, mechanical reliability, or regulatory compliance.

Frequently Asked Questions (FAQ)

Q: Can 176292-2 be used as a direct replacement for 176292-9?

A: Yes. The 176292-2 is a parametric equivalent to the 176292-9. Both parts share identical electrical and mechanical specifications, including connector type, position count, pitch, mounting configuration, termination method, and operating temperature range. The only differences are housing color (red versus black) and packaging format (bulk versus standard).

Q: What is the significance of the color difference between these parts?

A: Housing color does not affect electrical or mechanical function. Color selection is typically driven by design requirements for circuit identification, assembly guidance, or visual organization. The choice between black and red housing is a design preference rather than a functional requirement.

Q: Are both parts suitable for the same operating temperature applications?

A: Yes. Both the 176292-9 and 176292-2 operate across the identical temperature range of -30°C to 105°C. Temperature performance is not a differentiating factor between these substitutes.

Q: What does the packaging difference mean for procurement?

A: The 176292-9 is supplied in standard packaging, while the 176292-2 is supplied in bulk packaging. Bulk packaging typically accommodates larger quantities per unit and may offer cost advantages for high-volume applications. Standard packaging is suitable for lower-volume or mixed-component orders.

Q: Do both parts meet the same compliance standards?

A: Yes. Both the 176292-9 and 176292-2 are ROHS3 compliant and carry an MSL rating of 1 (Unlimited). Regulatory compliance is identical between these parts.

Q: Can these parts be intermixed in the same assembly?

A: Yes. Since both parts are parametrically equivalent with identical electrical and mechanical specifications, they can be used interchangeably within the same assembly. Color differences do not affect compatibility or performance.
