TE Connectivity AMP Connectors 176287-9 Equivalent & Substitute Parts

Part Overview

The TE Connectivity AMP Connectors 176287-9 is a 9-position rectangular connector housing designed for receptacle applications with a 0.156" (3.96mm) pitch configuration. This component is classified as Obsolete, indicating that direct procurement from original manufacturing sources may be limited or unavailable. The housing accommodates tab-type contacts with crimp termination and features a latch lock fastening mechanism suitable for free-hanging in-line mounting applications. Identification of equivalent substitute parts is necessary to ensure continued availability and maintain design compatibility in applications requiring this connector housing specification.

Substiute Parts

176287-9

TE Connectivity AMP ConnectorsIn Stock: 1001176287-9 Datasheet

Current PartRFQ

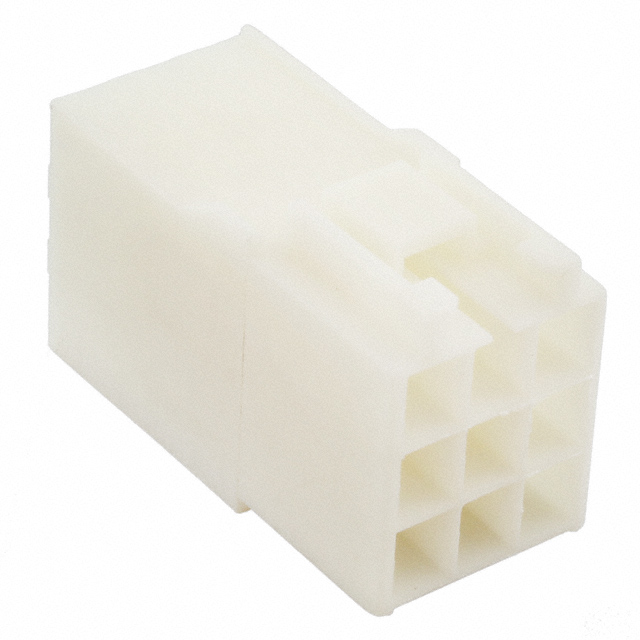

176287-1

TE Connectivity AMP ConnectorsIn Stock: 13332176287-1 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the 176287-9 are identified based on strict parametric equivalence within the Universal Power series. The substitution criteria are established by the following key parameters that must remain constant across all equivalent parts:

• Connector Type: Receptacle housing configuration
• Number of Positions: 9-position contact arrangement
• Pitch Specification: 0.156" (3.96mm) center-to-center spacing
• Number of Rows: 3-row matrix configuration
• Row Spacing: 0.181" (4.60mm) between rows
• Contact Type: Tab contact interface
• Contact Termination: Crimp attachment method
• Fastening Type: Latch lock retention mechanism
• Mounting Type: Free Hanging (In-Line) orientation
• Series Classification: Universal Power connector family

The substitute part 176287-1 maintains identical electrical and mechanical specifications across all critical parameters. Variations in color (Natural versus Black) and product status (Active versus Obsolete) do not affect functional interchangeability when the above parameters are matched.

Parameter Comparison

Engineering Selection Recommendations

The 176287-1 serves as the direct parametric equivalent to the obsolete 176287-9. Both parts maintain identical electrical and mechanical specifications across all critical connector parameters, including position count, pitch, row configuration, contact type, and fastening mechanism.

The 176287-1 is classified as Active product status, ensuring ongoing availability and manufacturing support. Both parts achieve ROHS3 compliance and carry identical moisture sensitivity and export classification designations, confirming regulatory equivalence.

The primary distinction between these parts is color specification: the 176287-9 features Black insulation material, while the 176287-1 features Natural (Nylon 6/6) insulation material. This color variation does not affect electrical performance or mechanical compatibility. Selection between these parts should be based on application-specific color requirements and availability constraints.

For applications currently utilizing the 176287-9, transition to the 176287-1 is supported by complete parametric equivalence and active manufacturing status.

Frequently Asked Questions (FAQ)

Q: Are the 176287-9 and 176287-1 electrically interchangeable?

A: Yes. Both parts are 9-position receptacle housings with identical pitch (0.156"), row configuration (3 rows with 0.181" spacing), contact type (tab), termination method (crimp), and fastening mechanism (latch lock). Electrical performance and contact interface specifications are identical.

Q: What is the difference between the Black and Natural color variants?

A: The 176287-9 features Black insulation material, while the 176287-1 features Natural (Nylon 6/6) insulation material. Color selection is determined by application requirements and does not affect electrical or mechanical function.

Q: Why is the 176287-9 listed as Obsolete?

A: Obsolete status indicates that the part is no longer in active production. The 176287-1 provides equivalent functionality with active manufacturing support and improved availability.

Q: Can the 176287-1 be used as a direct replacement for the 176287-9?

A: Yes, provided that the Natural color specification is compatible with application requirements. All electrical and mechanical parameters are identical, and both parts maintain ROHS3 compliance and equivalent regulatory classifications.

Q: What is the inventory status of these parts?

A: The 176287-9 has 905 pieces in stock (Obsolete status). The 176287-1 has 13,294 pieces in stock (Active status), providing significantly greater availability for new applications and replenishment requirements.

Q: Are both parts supplied with contacts included?

A: No. Both the 176287-9 and 176287-1 are supplied as housings only. Contacts must be sourced separately and installed through the crimp termination process.

Q: What is the operating temperature range for these connector housings?

A: The 176287-1 specifies an operating temperature range of -30°C to 105°C. This specification applies to the insulation material (Polyamide PA66, Nylon 6/6) and represents the thermal operating envelope for the housing component.
