TE Connectivity 176282-9 Rectangular Connector Housing Equivalent & Substitute Parts

Part Overview

The TE Connectivity 176282-9 is a 2-position rectangular connector receptacle housing with 0.156" (3.96mm) pitch, designed for the Universal Power series. This component is classified as a receptacle housing for tab-type contacts with crimp termination and latch lock fastening. The part is currently active in production status with 888 pieces available in inventory.

Substitute parts are necessary when specific color requirements, compliance certifications, or inventory availability differ from the primary part number while maintaining identical electrical and mechanical specifications.

Key Parameters

Parameter	Value
Connector Type	Receptacle
Number of Positions	2
Pitch	0.156" (3.96mm)
Contact Type	Tab
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Fastening Type	Latch Lock
Insulation Material	Polyamide (PA66), Nylon 6/6
Operating Temperature Range	-30°C ~ 105°C
Number of Rows	1
Moisture Sensitivity Level (MSL)	1 (Unlimited)

Substitute Part Grouping Explanation

All substitute parts for the TE Connectivity 176282-9 maintain identical electrical and mechanical specifications across the following critical parameters:

Connector type (Receptacle)
Number of positions (2)
Pitch specification (0.156" / 3.96mm)
Contact type (Tab)
Mounting configuration (Free Hanging In-Line)
Termination method (Crimp)
Fastening mechanism (Latch Lock)
Insulation material (Polyamide PA66, Nylon 6/6)
Operating temperature range (-30°C ~ 105°C)
Moisture sensitivity level (MSL 1)
Series designation (Universal Power)
Base product number (176282)

The substitute parts differ only in housing color and associated compliance certifications. Color variations do not affect electrical performance or mechanical compatibility. All parts are manufactured by TE Connectivity AMP Connectors and are supplied in bulk packaging.

Parameter Comparison

Part Number	Color	Connector Type	Positions	Pitch	Contact Type	Termination	Fastening	Insulation Material	Operating Temperature	MSL	Inventory (Pcs)	RoHS Status
176282-9	Black	Receptacle	2	0.156" (3.96mm)	Tab	Crimp	Latch Lock	Polyamide (PA66), Nylon 6/6	-30°C ~ 105°C	1	888	RoHS Compliant
176282-1	Natural	Receptacle	2	0.156" (3.96mm)	Tab	Crimp	Latch Lock	Polyamide (PA66), Nylon 6/6	-30°C ~ 105°C	1	2200	ROHS3 Compliant
176282-2	Red	Receptacle	2	0.156" (3.96mm)	Tab	Crimp	Latch Lock	Polyamide (PA66), Nylon 6/6	-30°C ~ 105°C	1	6787	ROHS3 Compliant
176282-4	Yellow	Receptacle	2	0.156" (3.96mm)	Tab	Crimp	Latch Lock	Polyamide (PA66), Nylon 6/6	-30°C ~ 105°C	1	6578	ROHS3 Compliant
176282-6	Blue	Receptacle	2	0.156" (3.96mm)	Tab	Crimp	Latch Lock	Polyamide (PA66), Nylon 6/6	-30°C ~ 105°C	1	740	RoHS Compliant

Engineering Selection Recommendations

All substitute parts listed are active products manufactured by TE Connectivity AMP Connectors and are fully interchangeable with the 176282-9 from an electrical and mechanical standpoint.

176282-1 (Natural) offers the highest inventory availability at 2200 pieces and carries ROHS3 compliance certification with REACH Unaffected status, providing enhanced regulatory documentation.

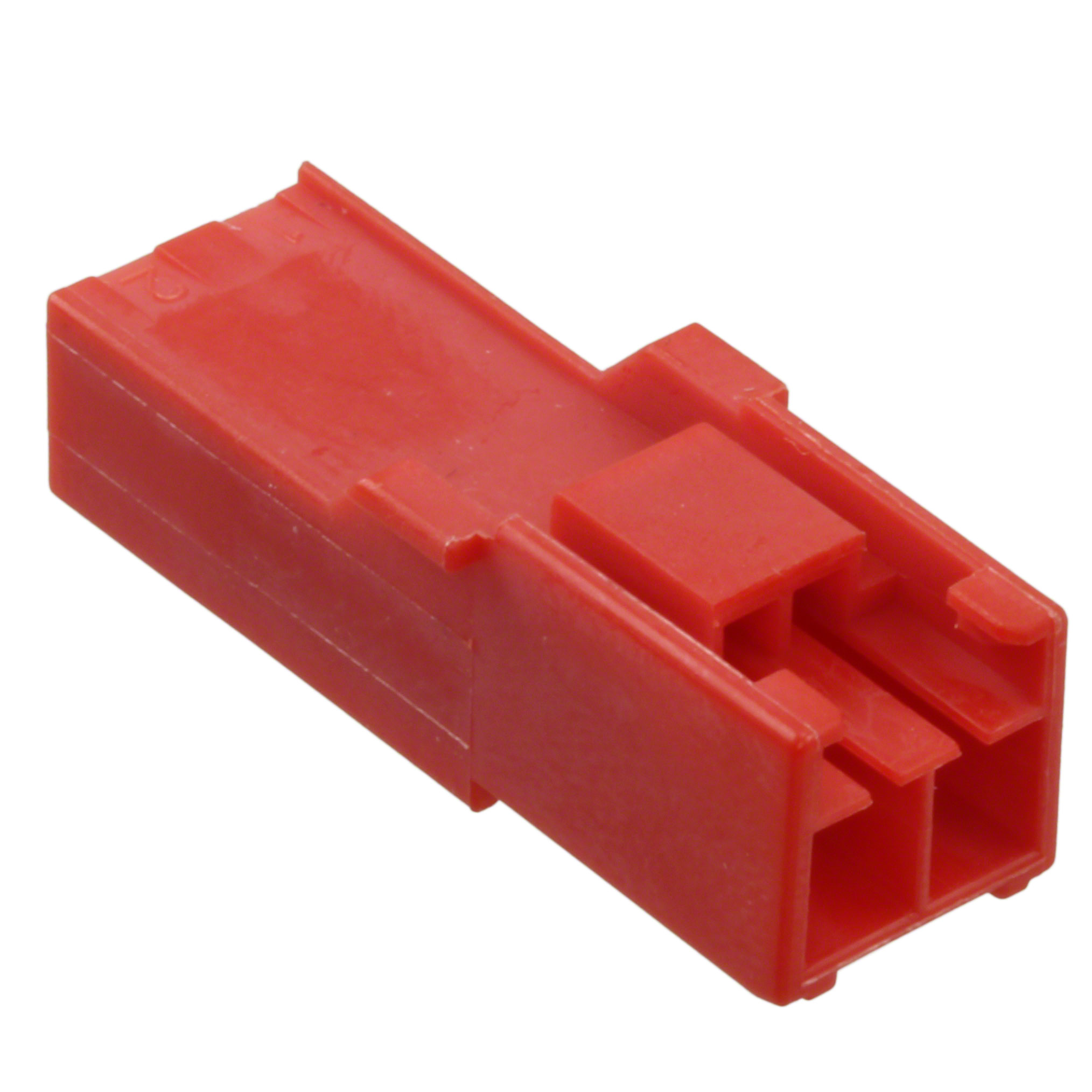

176282-2 (Red) and 176282-4 (Yellow) both provide substantial inventory levels (6787 and 6578 pieces respectively) and carry ROHS3 compliance certification, suitable for applications requiring color-coded circuit identification.

176282-6 (Blue) carries RoHS compliance certification and provides 740 pieces in inventory, appropriate for applications with specific color requirements and standard RoHS compliance needs.

Selection between these parts should be based on color requirements for circuit identification, inventory availability for production scheduling, and specific regulatory compliance documentation required by the end application.

Frequently Asked Questions (FAQ)

Q: Are all substitute parts electrically identical to the 176282-9?

A: Yes. All substitute parts maintain identical electrical specifications including connector type, position count, pitch, contact type, termination method, and operating temperature range. Electrical performance is not affected by housing color.

Q: What is the only difference between the 176282-9 and its substitutes?

A: Housing color and associated RoHS/REACH compliance certifications. The 176282-9 is black, while substitutes are available in natural, red, yellow, and blue. All other mechanical and electrical parameters are identical.

Q: Can I use a different color housing in my assembly?

A: Yes, provided your application does not require specific color coding for circuit identification or traceability. The substitute parts are mechanically and electrically interchangeable.

Q: Do all parts require the same contact specifications?

A: Yes. All parts are receptacle housings for tab-type contacts with crimp termination. Contacts are not included with any of these housings and must be sourced separately.

Q: What is the difference between RoHS Compliant and ROHS3 Compliant?

A: Both certifications indicate compliance with Restriction of Hazardous Substances directives. ROHS3 represents the current version of the directive. Both are acceptable for RoHS-regulated applications.

Q: Which part should I select if inventory is critical?

A: The 176282-2 (Red) offers the highest inventory level at 6787 pieces, followed by 176282-4 (Yellow) at 6578 pieces.

Q: Are these parts suitable for high-temperature applications?

A: All parts operate within the -30°C to 105°C temperature range. Applications requiring operation outside this range require alternative component selection.

Q: What does MSL 1 (Unlimited) mean?

A: Moisture Sensitivity Level 1 indicates the component has unlimited shelf life and does not require special moisture-controlled storage conditions.
