TE Connectivity 176274-4 Rectangular Connector Plug Housing Equivalent & Substitute Parts
Part Overview
The TE Connectivity 176274-4 is a 6-position rectangular connector plug housing with 0.156" (3.96mm) pitch, designed for the Universal Power series. This component is an active product manufactured by TE Connectivity AMP Connectors and is ROHS3 compliant. The housing accommodates female socket contacts via crimp termination and features a latch lock fastening mechanism. Substitute parts are identified when equivalent electrical and mechanical parameters are maintained across the connector interface, allowing for functional interchangeability in applications where the core specifications remain constant.
Substiute Parts
Key Parameters
| Parameter | Value |
|---|---|
| Manufacturer Part Number | 176274-4 |
| Manufacturer | TE Connectivity AMP Connectors |
| Category | Rectangular Connectors |
| Connector Type | Plug |
| Contact Type | Female Socket |
| Number of Positions | 6 |
| Pitch | 0.156" (3.96mm) |
| Number of Rows | 2 |
| Row Spacing | 0.181" (4.60mm) |
| Mounting Type | Free Hanging (In-Line) |
| Contact Termination | Crimp |
| Fastening Type | Latch Lock |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Operating Temperature | -30°C ~ 105°C |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| RoHS Status | ROHS3 Compliant |
Substitute Part Grouping Explanation
Substitute parts for the 176274-4 are identified based on strict equivalence of the following critical parameters:
Core Electrical and Mechanical Equivalence Criteria:
- Number of Positions: 6
- Pitch: 0.156" (3.96mm)
- Number of Rows: 2
- Row Spacing: 0.181" (4.60mm)
- Connector Type: Plug
- Contact Type: Female Socket
- Mounting Type: Free Hanging (In-Line)
- Contact Termination: Crimp
- Fastening Type: Latch Lock
Allowable Variations:
- Color: Yellow, Red, Blue, or Natural (does not affect electrical function)
- Series designation: Universal Power or Power Double Lock (both accommodate the same contact interface)
- Operating Temperature range: Variations permitted when minimum operating temperature does not exceed -30°C and maximum does not fall below 105°C, or when operating temperature is not specified
- RoHS Status: ROHS3 Compliant or RoHS Compliant (both meet regulatory requirements)
Substitutes are grouped by these equivalence criteria. Parts that maintain identical pitch, position count, row configuration, and contact interface specifications are considered functionally interchangeable.
Parameter Comparison
| Parameter | 176274-4 | 176274-6 | 176274-2 | 177901-1 | 177901-6 | 3-177901-6 | 368576-1 |
|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Connector Type | Plug | Plug | Plug | Plug | Plug | Plug | Plug |
| Contact Type | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket |
| Number of Positions | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
| Pitch | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) |
| Number of Rows | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Row Spacing | 0.181" (4.60mm) | 0.181" (4.60mm) | 0.181" (4.60mm) | 0.181" (4.60mm) | 0.181" (4.60mm) | 0.181" (4.60mm) | 0.181" (4.60mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Contact Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Fastening Type | Latch Lock | Latch Lock | Latch Lock | Latch Lock | Latch Lock | Latch Lock | Latch Lock |
| Color | Yellow | Blue | Red | Natural | Blue | Blue | Natural |
| Insulation Material | Polyamide (PA66), Nylon 6/6 | Polyamide (PA66), Nylon 6/6 | Polyamide (PA66), Nylon 6/6 | Polyamide (PA66), Nylon 6/6 | Polyamide (PA66), Nylon 6/6 | Not Specified | Polyamide (PA66), Nylon 6/6 |
| Operating Temperature | -30°C ~ 105°C | -30°C ~ 105°C | -30°C ~ 105°C | Not Specified | Not Specified | Not Specified | -30°C ~ 65°C |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
Engineering Selection Recommendations
All substitute parts listed maintain functional equivalence with the 176274-4 based on critical connector interface parameters: 6-position configuration, 0.156" pitch, 2-row layout with 0.181" row spacing, female socket contact type, crimp termination, and latch lock fastening.
Universal Power Series (176274 Base Number):
- 176274-4 (Yellow): ROHS3 Compliant, -30°C ~ 105°C operating range
- 176274-6 (Blue): ROHS3 Compliant, -30°C ~ 105°C operating range
- 176274-2 (Red): RoHS Compliant, -30°C ~ 105°C operating range
These three parts share identical electrical and mechanical specifications with only color differentiation. All maintain the full -30°C ~ 105°C operating temperature range and ROHS3 or RoHS compliance.
Power Double Lock Series (177901 and 368576 Base Numbers):

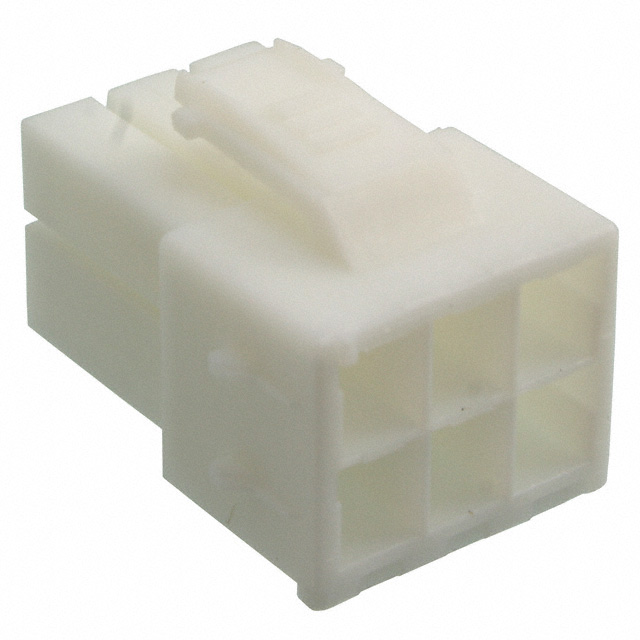

- 177901-1 (Natural): RoHS Compliant, operating temperature not specified
- 177901-6 (Blue): RoHS Compliant, operating temperature not specified
- 3-177901-6 (Blue): RoHS Compliant, operating temperature not specified, insulation material not specified
- 368576-1 (Natural): RoHS Compliant, -30°C ~ 65°C operating range
These parts maintain identical connector interface specifications. Operating temperature specifications differ: 368576-1 specifies -30°C ~ 65°C, while 177901 series does not specify operating temperature. Selection between Universal Power and Power Double Lock series depends on application requirements for operating temperature range and series-specific design features.
All parts are active products from TE Connectivity AMP Connectors with MSL rating of 1 (Unlimited) and are suitable for direct substitution based on connector interface compatibility.
Frequently Asked Questions (FAQ)
Q: What determines if a part can substitute for the 176274-4?
A: Substitution is determined by equivalence in the following parameters: 6-position configuration, 0.156" (3.96mm) pitch, 2-row layout, 0.181" (4.60mm) row spacing, plug connector type, female socket contact type, free hanging in-line mounting, crimp termination, and latch lock fastening. Color and series designation do not affect substitution eligibility.
Q: Can I use 176274-2 (Red) instead of 176274-4 (Yellow)?
A: Yes. Both parts are from the Universal Power series with identical electrical and mechanical specifications. The only difference is housing color. Both maintain -30°C ~ 105°C operating temperature and ROHS3 or RoHS compliance. Color selection is application-dependent and does not affect connector function.
Q: What is the difference between Universal Power series (176274) and Power Double Lock series (177901, 368576)?
A: Both series maintain identical connector interface specifications for the 6-position, 3.96mm pitch configuration. The series designation indicates different product lines within TE Connectivity's connector portfolio. Universal Power series parts specify -30°C ~ 105°C operating temperature. Power Double Lock series parts either do not specify operating temperature (177901 series) or specify -30°C ~ 65°C (368576-1). Selection depends on application operating temperature requirements.
Q: Is 3-177901-6 equivalent to 177901-6?
A: Both parts share identical connector interface specifications: 6-position, 0.156" pitch, 2-row configuration, female socket contacts, crimp termination, and latch lock fastening. The primary difference is that 3-177901-6 does not specify insulation material or operating temperature, while 177901-6 specifies Polyamide (PA66), Nylon 6/6 insulation material and does not specify operating temperature. Both are RoHS compliant and active products.
Q: Can I use 368576-1 in an application requiring -30°C ~ 105°C operation?
A: No. The 368576-1 specifies an operating temperature range of -30°C ~ 65°C, which does not meet the full -30°C ~ 105°C requirement. For applications requiring the full -30°C ~ 105°C operating range, use 176274-4, 176274-6, or 176274-2 from the Universal Power series.
Q: Are all substitute parts in stock?
A: Inventory status is provided for reference. 176274-4 has 782 units in stock. Substitute parts have varying inventory levels: 176274-6 (799 units), 176274-2 (1063 units), 177901-1 (1204 units), 177901-6 (2427 units), 3-177901-6 (782 units), and 368576-1 (3910 units). Inventory levels are subject to change and should be verified at time of procurement.
Q: What does MSL 1 (Unlimited) mean?
A: Moisture Sensitivity Level 1 (Unlimited) indicates that the component has no moisture sensitivity restrictions. These parts do not require special moisture control handling during storage, transportation, or assembly, and have unlimited shelf life under normal conditions.
Q: Are all substitute parts ROHS compliant?
A: Yes. All listed substitute parts are either ROHS3 Compliant (176274-4, 176274-6) or RoHS Compliant (176274-2, 177901-1, 177901-6, 3-177901-6, 368576-1). Both compliance levels meet regulatory requirements for restricted substances.
