TE Connectivity AMP Connectors 1761840-1 D-Sub HD Plug 15P Equivalent & Substitute Parts

Part Overview

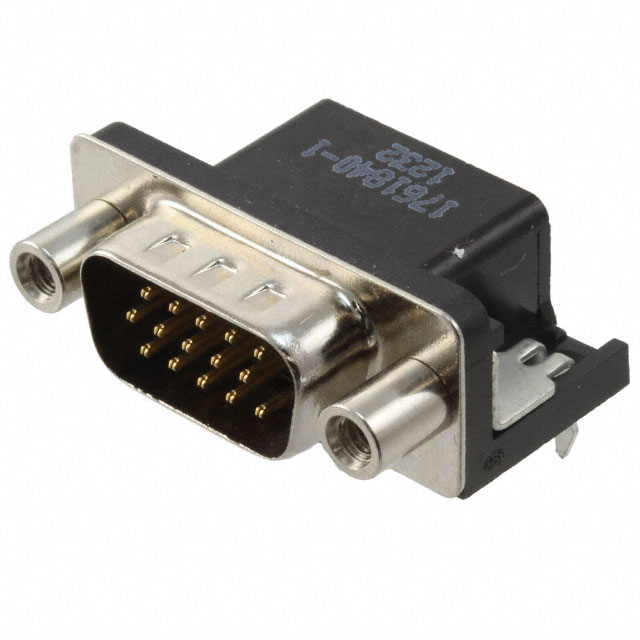

The TE Connectivity AMP Connectors 1761840-1 is a 15 Position D-Sub High Density Plug connector with male pins, right-angle solder termination, and board lock features. This connector is classified as obsolete, making identification of equivalent and substitute parts essential for ongoing system support, maintenance, and new design implementations where legacy compatibility is required.

The AMPLIMITE HD-22 series connector features a steel nickel-plated shell with gold-plated contacts and polyamide dielectric material. As an obsolete product, sourcing alternatives from active product lines ensures continued availability and supply chain reliability.

Substiute Parts

1761840-1

TE Connectivity AMP ConnectorsIn Stock: 10131761840-1 Datasheet

Current PartRFQ

10090926-P154XLF

Amphenol ICC (FCI)In Stock: 519310090926-P154XLF Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the 1761840-1 are identified based on strict electrical and mechanical parameter alignment within the D-Sub High Density connector category. The substitution criteria are:

Primary Matching Parameters:

• Connector Style: D-Sub, High Density
• Connector Type: Plug, Male Pins
• Number of Positions: 15
• Number of Rows: 3
• Shell Size, Connector Layout: 1 (DE, E) High Density
• Termination: Solder
• Shell Material, Finish: Steel, Nickel Plated
• Contact Finish: Gold
• Contact Type: Signal
• Mounting Type: Through Hole, Right Angle

Secondary Compatibility Parameters:

• Flange Feature: Mating Side configuration with 4-40 fastening
• Color: Black
• Moisture Sensitivity Level: 1 (Unlimited)

The substitute part Amphenol ICC (FCI) 10090926-P154XLF meets all primary matching parameters and maintains compatibility with the original connector footprint, pin configuration, and electrical interface requirements.

Parameter Comparison

Engineering Selection Recommendations

The Amphenol ICC (FCI) 10090926-P154XLF serves as a direct substitute for the obsolete TE Connectivity 1761840-1 connector based on matched electrical and mechanical parameters within the D-Sub High Density connector category.

Product Status Consideration: The 1761840-1 is classified as obsolete, while the 10090926-P154XLF is an active product. Selection of the active substitute part ensures long-term supply chain availability and reduces risk of future component discontinuation.

Compliance and Certification: The substitute part 10090926-P154XLF carries RoHS Compliant certification and REACH Unaffected status, providing enhanced environmental and regulatory compliance compared to the original part, which lists RoHS Status as Not Applicable. Both parts share the same ECCN (EAR99) and HTSUS (8536.69.4040) classifications.

Electrical and Mechanical Compatibility: Both connectors maintain identical pin configuration (15 positions, 3 rows), shell size (1 DE/E High Density), termination method (solder), and contact finish (gold). The substitute part provides specified electrical ratings (250V, 2.5A per contact) and operating temperature range (-55°C ~ 105°C) not documented for the original part.

Flange Configuration Difference: The original part features a mating side female screwlock, while the substitute features a board side flange. This difference requires evaluation of the specific application mounting requirements and mating connector configuration.

Frequently Asked Questions (FAQ)

Q: Can the Amphenol ICC 10090926-P154XLF directly replace the TE Connectivity 1761840-1 in existing designs?

A: The 10090926-P154XLF matches all critical electrical and mechanical parameters including connector style, pin count, shell size, termination method, and contact finish. However, the flange feature differs (mating side versus board side), requiring verification that the mounting configuration is compatible with the application's PCB layout and mating connector orientation.

Q: What is the primary reason for substituting the 1761840-1?

A: The 1761840-1 is classified as obsolete. The 10090926-P154XLF is an active product from Amphenol ICC, ensuring continued availability and supply chain reliability for new production and maintenance applications.

Q: Are there packaging differences between these connectors?

A: The 1761840-1 packaging is not specified in the available data. The 10090926-P154XLF is supplied in Tray packaging. Packaging format should be confirmed with the supplier based on production volume and handling requirements.

Q: What are the electrical performance differences?

A: The substitute part specifies 250V voltage rating and 2.5A per contact current rating. The original part does not provide these electrical specifications. Both connectors are rated for signal-level applications with gold-plated contacts and identical shell material (steel, nickel plated).

Q: Does the substitute part meet modern environmental standards?

A: The 10090926-P154XLF is RoHS Compliant and REACH Unaffected, meeting current environmental regulations. The original 1761840-1 lists RoHS Status as Not Applicable, indicating it predates these compliance requirements.

Q: What is the operating temperature range for the substitute part?

A: The 10090926-P154XLF operates across -55°C to 105°C. The original part does not specify an operating temperature range.

Q: Are both connectors suitable for through-hole PCB mounting?

A: Both connectors support through-hole mounting with right-angle orientation. The substitute part additionally supports board edge mounting, providing additional design flexibility.

Q: What is the moisture sensitivity level for both parts?

A: Both the 1761840-1 and 10090926-P154XLF are rated MSL 1 (Unlimited), indicating no moisture sensitivity restrictions for storage or handling.
