Part Overview

The TE Connectivity AMP Connectors 1761687-7 is a rectangular connector header designed for through-hole mounting applications. This connector features a vertical orientation with 20 positions arranged in 2 rows, utilizing a 0.100" (2.54mm) pitch standard. The part operates within the AMP-Latch series and is classified as obsolete, necessitating identification of active equivalent alternatives for ongoing procurement and new design implementations.

The obsolete status of part number 1761687-7 requires substitution with functionally equivalent active components to ensure supply chain continuity and support for maintenance, repair, and new production requirements.

Substiute Parts

1761687-7

TE Connectivity AMP ConnectorsIn Stock: 11821761687-7 Datasheet

Current PartRFQ

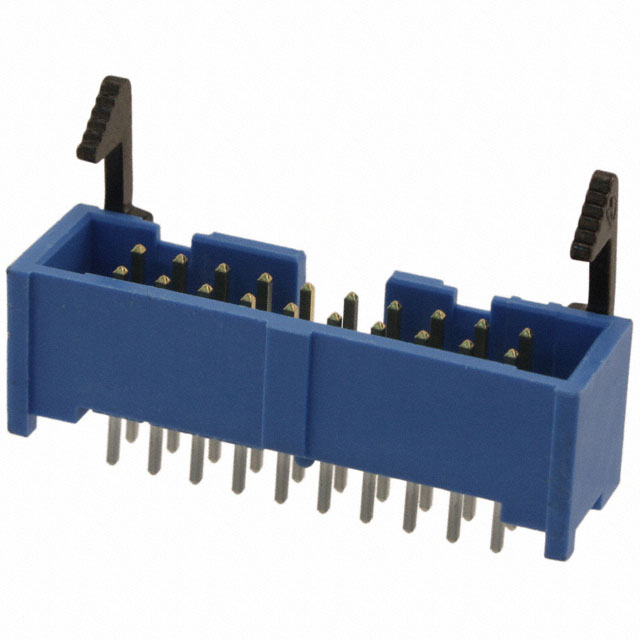

2-1761608-7

TE Connectivity AMP ConnectorsIn Stock: 11922-1761608-7 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the obsolete TE Connectivity 1761687-7 with active equivalent part 2-1761608-7 is based on strict alignment of the following critical parameters:

Electrical Compatibility Parameters:

• Identical pitch spacing: 0.100" (2.54mm) mating pitch and row spacing
• Identical position count: 20 positions in 2-row configuration
• Identical current rating: 1A per contact
• Identical voltage rating: 250VAC
• Identical contact material: Phosphor Bronze
• Identical contact finish on mating surface: Gold (with palladium option on substitute)

Mechanical Compatibility Parameters:

• Identical connector type: Header
• Identical contact type: Male Pin
• Identical mounting type: Through Hole
• Identical shrouding: Shrouded - 4 Wall
• Identical termination method: Solder
• Identical fastening type: Latch Lock/Eject Hooks, Short
• Identical insulation material: Polybutylene Terephthalate (PBT)
• Identical insulation color: Blue
• Identical keying slot feature

Environmental & Compliance Parameters:

• Identical operating temperature range: -65°C ~ 105°C
• Identical flammability rating: UL94 V-0
• Identical RoHS compliance: ROHS3 Compliant
• Identical moisture sensitivity level: MSL 1 (Unlimited)

The substitute part 2-1761608-7 maintains full functional equivalence while offering active product status and improved availability.

Parameter Comparison

Engineering Selection Recommendations

The TE Connectivity 2-1761608-7 serves as the direct active equivalent for the obsolete 1761687-7. Selection of the substitute part is based on the following engineering criteria:

Product Status Alignment: The substitute part 2-1761608-7 maintains active product status within the TE Connectivity AMP-Latch series, ensuring ongoing availability and manufacturer support. The obsolete status of 1761687-7 necessitates transition to this active equivalent for all new designs and ongoing procurement requirements.

Electrical Performance Equivalence: Both parts maintain identical electrical specifications across all critical parameters: 20-position configuration, 0.100" (2.54mm) pitch, 1A per contact current rating, and 250VAC voltage rating. Contact material, finish specifications, and thickness values are identical, ensuring equivalent electrical performance in circuit applications.

Mechanical Compatibility: The substitute part maintains identical mechanical specifications for mounting, shrouding, termination, and fastening. Minor variations in contact length and insulation height (0.237" versus 0.240" mating contact length; 0.404" versus 0.350" insulation height) remain within functional equivalence for through-hole board mounting applications. These dimensional variations do not affect connector mating or board-level integration.

Compliance and Environmental Specifications: Both parts maintain identical compliance certifications: ROHS3 compliance, UL94 V-0 flammability rating, and MSL 1 moisture sensitivity level. Operating temperature range (-65°C ~ 105°C) and environmental performance specifications are identical. The substitute part carries identical export classification (EAR99) and tariff coding (HTSUS 8536.69.4040).

Contact Finish Enhancement: The substitute part 2-1761608-7 offers optional gold-palladium mating contact finish in addition to standard gold, providing enhanced corrosion resistance and contact reliability without compromising electrical performance.

Frequently Asked Questions (FAQ)

Q: Can the 2-1761608-7 substitute directly replace the 1761687-7 in existing designs?

A: Yes. The substitute part maintains identical electrical, mechanical, and environmental specifications. The minor dimensional variations in contact length and insulation height do not affect board-level compatibility or connector mating performance. Direct substitution is supported for both new designs and replacement applications.

Q: What is the primary reason for substituting the 1761687-7?

A: The 1761687-7 is classified as obsolete. The 2-1761608-7 is the active equivalent within the AMP-Latch series, ensuring continued availability, manufacturer support, and supply chain reliability.

Q: Are there differences in packaging between these parts?

A: The main part 1761687-7 does not specify packaging format. The substitute part 2-1761608-7 is supplied in tube packaging. This packaging difference does not affect electrical or mechanical performance and is standard for active production components.

Q: Do both parts meet the same compliance standards?

A: Yes. Both parts are ROHS3 compliant, carry UL94 V-0 flammability rating, and maintain MSL 1 moisture sensitivity level. Environmental and regulatory compliance specifications are identical.

Q: What is the significance of the contact finish options on the substitute part?

A: The substitute part 2-1761608-7 offers gold or gold-palladium mating contact finish, while the main part specifies gold only. Both finishes maintain the identical 30.0µin (0.76µm) thickness specification. The palladium option provides enhanced corrosion resistance in demanding environments without affecting electrical performance or compatibility.

Q: Are the operating temperature ranges identical?

A: Yes. Both parts operate across the identical temperature range of -65°C to 105°C, ensuring equivalent thermal performance in all application environments.

Q: What are the key parameters that determine substitution compatibility?

A: Substitution compatibility is determined by: connector type (header), contact type (male pin), position count (20), row configuration (2 rows), pitch spacing (0.100" / 2.54mm), mounting type (through hole), shrouding (4-wall), termination method (solder), fastening type (latch lock/eject hooks), contact material (phosphor bronze), insulation material (PBT), current rating (1A per contact), voltage rating (250VAC), and operating temperature range (-65°C ~ 105°C).

Q: Is the substitute part available in the same quantities as the obsolete part?

A: The substitute part 2-1761608-7 is currently in active production with 1096 pieces in stock, compared to 1076 pieces of the obsolete 1761687-7. Active production status ensures ongoing availability for future requirements.
