TE Connectivity 1761603-5 Equivalent & Substitute Parts

Part Overview

The TE Connectivity 1761603-5 is a rectangular connector header, vertical orientation, 14-position, 2.54mm pitch, designed for through-hole mounting with solder termination. This connector is classified as obsolete, necessitating identification of active equivalent and substitute parts for ongoing design and procurement requirements. The part features shrouded 4-wall construction, push-pull fastening, and gold-plated mating contacts suitable for board-to-cable/wire applications.

Key Parameters

Parameter	Value
Manufacturer Part Number	1761603-5
Manufacturer	TE Connectivity AMP Connectors
Category	Rectangular Connectors
Series	AMP-Latch
Product Status	Obsolete
Connector Type	Header
Contact Type	Male Pin
Number of Positions	14
Number of Rows	2
Pitch - Mating	0.100" (2.54mm)
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Shrouding	Shrouded - 4 Wall
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-65°C ~ 105°C
Current Rating	1A per Contact
Voltage Rating	250VAC
Material Flammability Rating	UL94 V-0
Moisture Sensitivity Level (MSL)	1 (Unlimited)

Substitute Part Grouping Explanation

Substitution of the 1761603-5 is determined by strict adherence to the following critical parameters:

Mandatory Matching Parameters:

Number of Positions: 14
Number of Rows: 2
Pitch - Mating: 0.100" (2.54mm)
Row Spacing - Mating: 0.100" (2.54mm)
Connector Type: Header
Contact Type: Male Pin
Mounting Type: Through Hole
Termination: Solder
Shrouding: Shrouded - 4 Wall
Style: Board to Cable/Wire
Contact Shape: Square
Features: Keying Slot
Material Flammability Rating: UL94 V-0

Allowable Variations:

Fastening Type: Push-Pull or Latch Holder
Contact Length - Post: 0.102" to 0.177" (2.60mm to 4.50mm)
Insulation Height: 0.350" to 0.388" (8.89mm to 9.86mm)
Contact Material: Phosphor Bronze, Brass, or Copper Alloy
Insulation Material: PBT, PBT Glass Filled, or PCT Glass Filled
Insulation Color: Black, Blue, or Gray
Contact Finish - Mating: Gold or Gold-Palladium
Operating Temperature Range: -65°C to -55°C minimum; 105°C to 125°C maximum
Product Status: Active preferred over Obsolete
RoHS Compliance: ROHS3 Compliant preferred

Parameter Comparison

Part Number	Manufacturer	Series	Product Status	Positions	Rows	Pitch (mm)	Fastening Type	Contact Material	Insulation Material	Operating Temp (°C)	RoHS Status
1761603-5	TE Connectivity	AMP-Latch	Obsolete	14	2	2.54	Push-Pull	Phosphor Bronze	PBT	-65 to 105	Not applicable

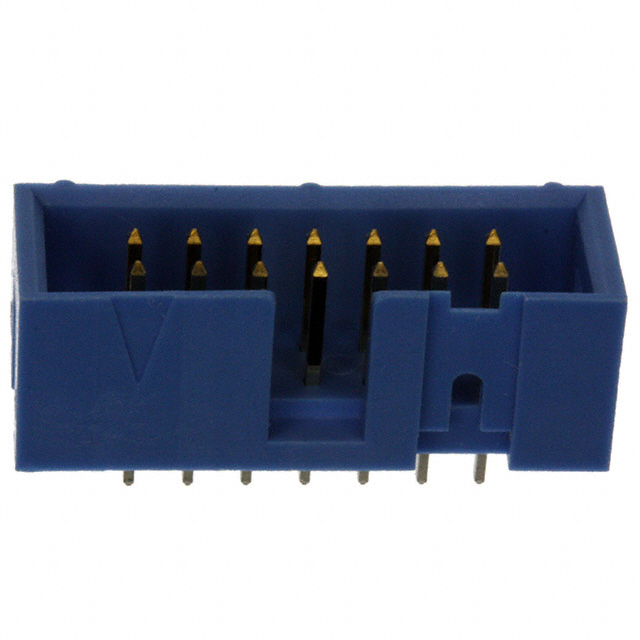

2-1761603-5	TE Connectivity	AMP-Latch	Active	14	2	2.54	Push-Pull	Phosphor Bronze	PBT	-65 to 105	ROHS3 Compliant
5103309-2	TE Connectivity	AMP-Latch	Active	14	2	2.54	Push-Pull	Brass	Not specified	-65 to 105	ROHS3 Compliant
09185145322	HARTING	SEK	Active	14	2	2.54	Latch Holder	Copper Alloy	PBT Glass Filled	-55 to 125	ROHS3 Compliant
09185145324	HARTING	SEK	Active	14	2	2.54	Latch Holder	Copper Alloy	PBT Glass Filled	-55 to 125	ROHS3 Compliant
09185146322	HARTING	SEK	Active	14	2	2.54	Latch Holder	Copper Alloy	PBT Glass Filled	-55 to 125	ROHS3 Compliant
09185146324	HARTING	SEK	Active	14	2	2.54	Latch Holder	Copper Alloy	PBT Glass Filled	-55 to 125	ROHS3 Compliant
09185147322	HARTING	SEK	Active	14	2	2.54	Latch Holder	Copper Alloy	PBT Glass Filled	-55 to 125	ROHS3 Compliant
09185147324	HARTING	SEK	Active	14	2	2.54	Latch Holder	Copper Alloy	PBT Glass Filled	-55 to 125	ROHS3 Compliant
09195145324	HARTING	SEK	Active	14	2	2.54	Latch Holder	Copper Alloy	PCT Glass Filled	-55 to 125	ROHS3 Compliant
09195146324	HARTING	SEK	Active	14	2	2.54	Latch Holder	Copper Alloy	PCT Glass Filled	-55 to 125	ROHS3 Compliant

Engineering Selection Recommendations

Primary Substitute - Direct Replacement:

The part 2-1761603-5 (TE Connectivity) is the direct equivalent to 1761603-5. This part maintains identical electrical and mechanical specifications while offering active product status and ROHS3 compliance. The only difference is packaging format (Bulk versus original specification). This part is the preferred selection for direct substitution in new designs and procurement.

Secondary Substitutes - TE Connectivity Series:

The part 5103309-2 (TE Connectivity, AMP-Latch series) provides functional equivalence with active status and ROHS3 compliance. Contact material differs (Brass versus Phosphor Bronze), and insulation material is not specified. This part maintains identical pitch, position count, and operating temperature range.

Alternative Substitutes - HARTING SEK Series:

The HARTING SEK series parts (09185145322, 09185145324, 09185146322, 09185146324, 09185147322, 09185147324, 09195145324, 09195146324) provide functional equivalence with the following considerations:

All parts are active with ROHS3 compliance
Fastening mechanism differs (Latch Holder versus Push-Pull)
Operating temperature range extends to 125°C maximum (versus 105°C)
Contact material is Copper Alloy (versus Phosphor Bronze)
Insulation material is PBT Glass Filled or PCT Glass Filled (versus standard PBT)
Contact post length varies (0.114" to 0.177")

These parts are suitable for applications where the extended operating temperature range and alternative fastening mechanism are compatible with system requirements.

Frequently Asked Questions (FAQ)

Q: Can 2-1761603-5 be used as a direct replacement for 1761603-5?

A: Yes. The 2-1761603-5 is functionally equivalent to 1761603-5 with identical electrical and mechanical specifications. The primary difference is product status (Active versus Obsolete) and ROHS3 compliance. Packaging format differs (Bulk), but connector specifications remain unchanged.

Q: What is the difference between Push-Pull and Latch Holder fastening types?

A: Push-Pull fastening uses a push-pull mechanism for mating and unmating. Latch Holder fastening uses a latch mechanism. Both are mechanical fastening methods for connector engagement. Selection depends on application requirements for mating force and engagement method.

Q: Are HARTING SEK series parts compatible with TE Connectivity AMP-Latch designs?

A: HARTING SEK series parts maintain identical pitch (2.54mm), position count (14), row configuration (2 rows), and shrouding specifications. However, fastening type differs (Latch Holder versus Push-Pull). Mechanical compatibility with mating connectors must be verified based on specific application requirements.

Q: What is the significance of the extended operating temperature range in HARTING parts?

A: HARTING SEK series parts operate from -55°C to 125°C, compared to -65°C to 105°C for the original part. The extended upper temperature limit (125°C versus 105°C) provides additional thermal margin for high-temperature applications. The lower temperature limit is less stringent (-55°C versus -65°C).

Q: How do contact material differences affect connector performance?

A: The original 1761603-5 uses Phosphor Bronze contacts. Substitute parts use Brass or Copper Alloy contacts. All materials are suitable for the specified current rating (1A per contact) and voltage rating (250VAC). Material selection affects mechanical properties and corrosion resistance. Contact finish (Gold plating) provides the primary corrosion protection in all variants.

Q: What packaging options are available for substitute parts?

A: Substitute parts are available in Bulk, Tube, and Tray packaging formats. Packaging selection does not affect connector electrical or mechanical specifications and is determined by procurement and inventory management requirements.

Q: Is RoHS compliance required for substitute part selection?

A: The original 1761603-5 has RoHS status listed as "Not applicable." All active substitute parts listed are ROHS3 Compliant. For applications subject to RoHS regulations, ROHS3 Compliant parts are required. For applications without RoHS requirements, compliance status does not affect connector functionality.

Q: Can insulation material differences impact connector reliability?

A: The original part uses standard PBT insulation. Substitute parts use PBT Glass Filled or PCT Glass Filled insulation. Glass-filled variants provide enhanced mechanical strength and thermal stability. All materials meet UL94 V-0 flammability requirements. Material selection does not affect electrical performance for the specified voltage and current ratings.
