Phoenix Contact 1759220 Terminal Block - Equivalent & Substitute Parts

Part Overview

The Phoenix Contact 1759220 is a position terminal block designed for modular electrical connections in industrial control and automation applications. This component serves as a connector interface for circuit termination and signal distribution. With 1077 units in current stock inventory, this part maintains active availability for immediate deployment.

The need to identify equivalent and substitute parts arises from supply chain considerations, application-specific requirements, and the availability of compatible alternatives within the COMBICON product family that meet identical electrical and mechanical specifications.

Substiute Parts

1759220

Phoenix ContactIn Stock: 11411759220 Datasheet

Current PartRFQ

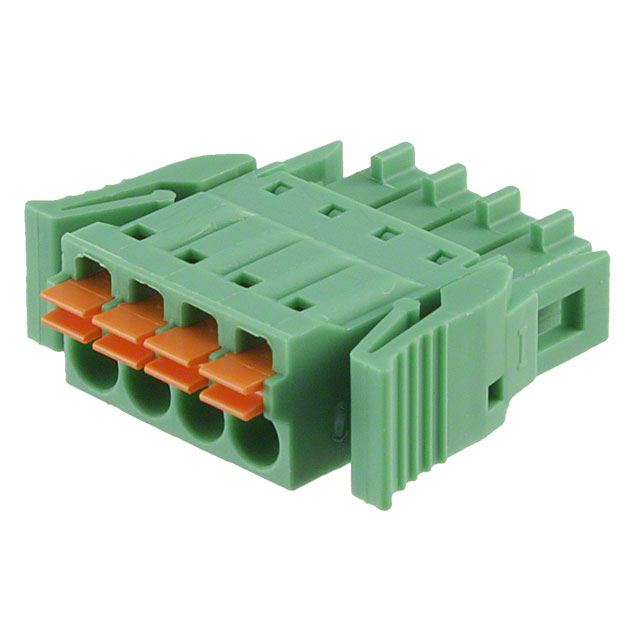

1952047

Phoenix ContactIn Stock: 26051952047 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for terminal block components is determined by the following critical parameters:

• Electrical Specifications: Current rating (IEC and UL), voltage rating (IEC and UL), and wire gauge compatibility
• Mechanical Configuration: Number of positions, pitch spacing, mounting type, and connector orientation
• Termination Method: Connection style (screwless push-in, screw terminal, or spring-loaded)
• Environmental Compliance: RoHS status, REACH compliance, and material flammability ratings
• Physical Dimensions: Insulation height, contact mating finish, and housing material composition

The substitute part 1952047 qualifies as an equivalent based on shared manufacturer origin (Phoenix Contact), identical product category (Terminal Blocks), compatible electrical ratings, and compliance certifications within the COMBICON FMC series.

Parameter Comparison

Engineering Selection Recommendations

Part 1952047 Substitution Criteria:

The Phoenix Contact 1952047 is classified as an active product with full compliance to ROHS3 and REACH Unaffected status, ensuring regulatory alignment with current environmental standards. The component carries UL94 V-0 material flammability rating, meeting stringent safety requirements for industrial applications.

Selection of part 1952047 as a substitute is supported by:

• Active product status with confirmed manufacturing continuity
• Full regulatory compliance (ROHS3, REACH Unaffected)
• Established inventory availability (2544 units in stock)
• Standardized COMBICON FMC series platform
• Moisture Sensitivity Level (MSL) rating of 1 (Unlimited), indicating no special storage or handling requirements

The substitute part maintains compatibility within the Phoenix Contact terminal block ecosystem and is suitable for direct replacement in applications requiring 4-position, 4.6mm pitch connectors with push-in spring termination.

Frequently Asked Questions (FAQ)

Q: What determines if part 1952047 can substitute for 1759220?

A: Substitution is based on matching electrical ratings (current and voltage specifications), mechanical configuration (number of positions and pitch spacing), termination method compatibility, and compliance certifications. Both parts originate from Phoenix Contact and operate within the terminal block category.

Q: Are there any packaging differences between these parts?

A: Part 1759220 packaging is not specified in available documentation. Part 1952047 is supplied in Bulk packaging format. Packaging differences do not affect electrical or mechanical compatibility.

Q: What is the wire gauge compatibility for part 1952047?

A: Part 1952047 accepts wire gauges from 16-24 AWG or 0.2-1.5mm² cross-sectional area. Verify that your application wiring falls within this range before selection.

Q: Does part 1952047 require special handling or storage?

A: No. Part 1952047 carries an MSL rating of 1 (Unlimited), meaning it requires no moisture sensitivity precautions and can be stored under standard industrial conditions.

Q: What is the termination method for part 1952047?

A: Part 1952047 uses screwless push-in spring termination, eliminating the need for screw-based fastening. Wire insertion depth is 10mm.

Q: Are both parts RoHS compliant?

A: Part 1952047 is ROHS3 compliant. RoHS status for part 1759220 is not specified in available documentation.
