Phoenix Contact 1759152 Terminal Block - Equivalent & Substitute Parts

Part Overview

The Phoenix Contact 1759152 is a position terminal block designed for modular connection applications. This component is currently in active inventory with 1,060 units available. Terminal blocks serve as critical interconnection points in electrical assemblies, and identifying compatible substitutes is essential for supply chain continuity, design flexibility, and procurement optimization.

Substiute Parts

1759152

Phoenix ContactIn Stock: 10751759152 Datasheet

Current PartRFQ

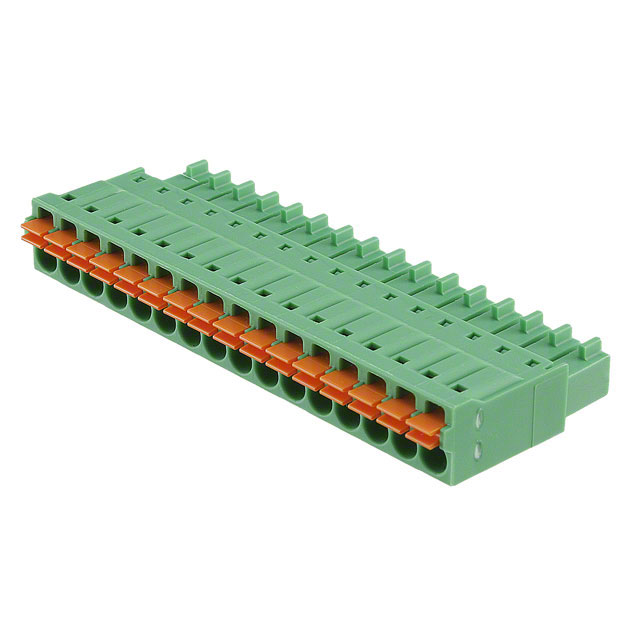

1952403

Phoenix ContactIn Stock: 10421952403 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

The Phoenix Contact 1952403 is identified as a substitute for the 1759152 based on shared manufacturer origin and terminal block category classification. Both components are Phoenix Contact products within the terminal block product family. The 1952403 is a 16-position terminal block plug with female sockets, operating at 4.6mm pitch with 180° free-hanging orientation. Substitution eligibility is determined by matching the core functional parameters: terminal block classification, connector pitch, position count, and electrical ratings within specified voltage and current tolerances.

Parameter Comparison

Engineering Selection Recommendations

The Phoenix Contact 1952403 is an active product with full regulatory compliance documentation. The component carries RoHS3 compliance and REACH unaffected status, meeting current environmental and regulatory requirements. The 1952403 features UL94 V-0 flammability rating, indicating compliance with fire safety standards for electrical components. Both parts are sourced from Phoenix Contact's established product lines with confirmed inventory availability. Selection between the main part and substitute should be based on specific application requirements regarding position count, pitch specification, and mounting orientation compatibility with the target assembly.

Frequently Asked Questions (FAQ)

Q: What determines if the 1952403 can substitute for the 1759152? A: Substitution is based on both components being Phoenix Contact terminal blocks within the same product category. The 1952403 provides 16 positions at 4.6mm pitch with push-in spring termination, suitable for applications requiring modular connection points with this specific configuration.

Q: Are there packaging differences between these parts? A: The main part 1759152 packaging is not specified. The 1952403 is supplied in bulk packaging, which may affect procurement and handling procedures depending on assembly requirements.

Q: What are the electrical limits for the 1952403? A: The 1952403 operates at 8A current and 320V (IEC) or 150V (UL) maximum voltage. Wire gauge compatibility ranges from 16-24 AWG or 0.2-1.5mm², with a 10mm wire strip length for termination.

Q: Does the 1952403 meet environmental compliance standards? A: The 1952403 is RoHS3 compliant, REACH unaffected, and carries UL94 V-0 flammability rating. Moisture sensitivity level is MSL 1 (unlimited), indicating no special storage or handling requirements.

Q: What is the mounting configuration of the 1952403? A: The 1952403 is configured as a free-hanging (in-line) component with 180° wire entry orientation, suitable for direct panel or PCB mounting applications without additional mechanical support structures.
