Phoenix Contact 1759110 Terminal Block - Equivalent & Substitute Parts

Part Overview

The Phoenix Contact 1759110 is a position terminal block designed for electrical interconnection applications. This component is part of Phoenix Contact's terminal block product line and serves as a connection interface for modular electrical systems. Identifying equivalent and substitute parts is essential for procurement flexibility, supply chain continuity, and system design optimization when the primary part number becomes unavailable or when design requirements necessitate alternative configurations.

Substiute Parts

1759110

Phoenix ContactIn Stock: 8451759110 Datasheet

Current PartRFQ

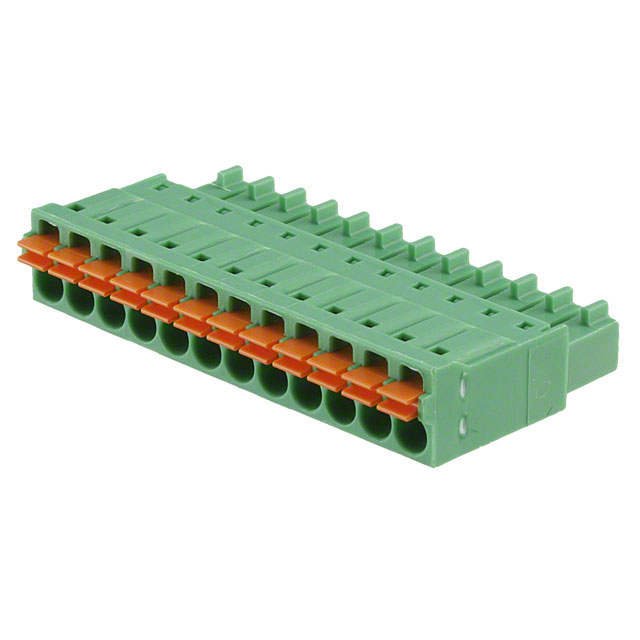

1952364

Phoenix ContactIn Stock: 20691952364 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of terminal block components is determined by compatibility across the following critical parameters:

• Manufacturer Consistency: Both the main part and substitute are manufactured by Phoenix Contact, ensuring design alignment and quality standards compliance.
• Product Category: Both components belong to the Terminal Blocks category, confirming functional equivalence within the same product family.
• Electrical Specifications: Voltage and current ratings must meet or exceed system requirements.
• Mechanical Configuration: Pitch, number of positions, orientation, and mounting type must be compatible with the target application.
• Termination Method: Connection style (screwless push-in, screw terminal, etc.) affects installation and reliability.
• Environmental and Compliance Standards: RoHS, REACH, and flammability ratings ensure regulatory compliance.

The identified substitute part (1952364) shares the Phoenix Contact manufacturer base and terminal block category, making it a valid alternative for applications requiring the specified electrical and mechanical characteristics.

Parameter Comparison

Engineering Selection Recommendations

The substitute part 1952364 is classified as Active product status, indicating current manufacturing and full support from Phoenix Contact. This part carries ROHS3 compliance and REACH Unaffected status, meeting current environmental and regulatory requirements for electronic component procurement. The UL94 V-0 flammability rating provides fire safety compliance for applications requiring flame-retardant materials. MSL Level 1 (Unlimited) indicates no moisture sensitivity constraints during storage and handling.

Selection between the main part and substitute should be based on specific application requirements including electrical load specifications (8A IEC / 8A UL current rating, 320V IEC / 150V UL voltage rating), mechanical fit (12-position configuration, 4.60mm pitch, 180° wire entry), and termination method compatibility (screwless push-in spring termination). The COMBICON FMC series designation of the substitute part provides additional product family context for cross-reference purposes.

Frequently Asked Questions (FAQ)

Q: What determines whether Phoenix Contact 1952364 can substitute for 1759110? A: Substitution is valid when electrical ratings (voltage and current), mechanical configuration (pitch, position count, orientation), termination method, and mounting type are compatible with the target application. Both parts must meet the same compliance and environmental standards required by the end system.

Q: Are there packaging differences between these parts? A: The main part 1759110 has unspecified packaging, while substitute part 1952364 is supplied in Bulk packaging. Verify packaging requirements for your procurement and assembly processes.

Q: What is the significance of the COMBICON FMC series designation? A: COMBICON FMC identifies the substitute part as belonging to Phoenix Contact's modular connector system family. This designation ensures compatibility with other components within the same series ecosystem.

Q: Does the 12-position configuration of 1952364 affect substitution eligibility? A: Position count is a critical mechanical parameter. Substitution is valid only if your application requires exactly 12 positions with 4.60mm pitch spacing. Verify position requirements before selection.

Q: What does the 180° wire entry specification mean? A: This indicates the wire entry angle relative to the connector body. The 180° free-hanging (in-line) configuration means wires enter perpendicular to the connector face. Confirm this orientation matches your PCB or panel layout requirements.

Q: Are there any storage or handling considerations for part 1952364? A: MSL Level 1 (Unlimited) indicates no moisture sensitivity. Standard component storage practices apply without special humidity or temperature controls.
