Phoenix Contact 1759042 Terminal Block - Equivalent & Substitute Parts

Part Overview

The Phoenix Contact 1759042 is a position terminal block designed for electrical interconnection applications. This component is part of Phoenix Contact's terminal block product line and serves as a connection interface in modular electrical systems. Identifying equivalent and substitute parts is necessary when the primary part number becomes unavailable, when inventory constraints require alternative sourcing, or when system design modifications necessitate compatible alternatives that maintain electrical and mechanical compatibility.

Substiute Parts

1759042

Phoenix ContactIn Stock: 9671759042 Datasheet

Current PartRFQ

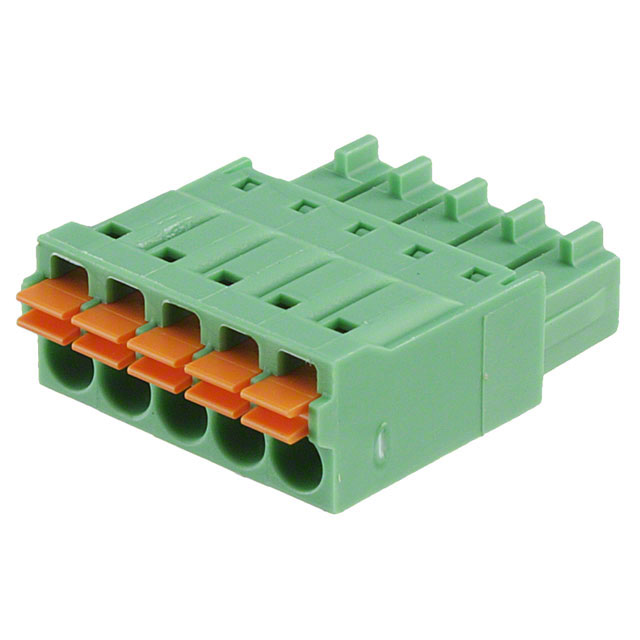

1952296

Phoenix ContactIn Stock: 143461952296 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

The substitute part 1952296 is identified as an equivalent based on the following substitution criteria:

Primary Substitution Parameters:

• Manufacturer: Phoenix Contact (same manufacturer ensures design compatibility and quality standards)
• Category: Terminal Blocks (same functional category)
• Product Status: Active (current production status ensures ongoing availability and support)
• Series: COMBICON FMC (established Phoenix Contact series with standardized interfaces)

Electrical Compatibility Parameters:

• Current Rating - IEC: 8A
• Voltage Rating - IEC: 320V
• Current Rating - UL: 8A
• Voltage Rating - UL: 150V
• Wire Gauge Range: 16-24 AWG (0.2-1.5mm²)

Mechanical Compatibility Parameters:

• Pitch: 0.138" (4.60mm)
• Number of Positions: 5
• Positions Per Level: 1
• Termination Style: Screwless - Push-In Spring
• Mounting Type: Free Hanging (In-Line)
• Plug Wire Entry: 180°

Compliance & Environmental Parameters:

• Material Flammability Rating: UL94 V-0
• RoHS Status: ROHS3 Compliant
• REACH Status: REACH Unaffected
• Moisture Sensitivity Level: 1 (Unlimited)

Parameter Comparison

Engineering Selection Recommendations

The Phoenix Contact 1952296 is an active production part within the COMBICON FMC series, ensuring long-term availability and manufacturer support. This substitute meets ROHS3 compliance requirements and maintains REACH unaffected status, satisfying regulatory requirements for industrial and commercial applications. The part carries a UL94 V-0 flammability rating, appropriate for safety-critical interconnection applications. With 14,302 units in current inventory, the 1952296 provides reliable sourcing availability compared to the primary part number.

Selection of the 1952296 as a substitute is based on Phoenix Contact's product line continuity, active manufacturing status, and established compliance certifications. The electrical ratings (8A IEC, 320V IEC) and mechanical specifications (5-position, 4.60mm pitch, push-in termination) define the functional equivalence within the terminal block category.

Frequently Asked Questions (FAQ)

Q: What determines if the 1952296 can substitute for the 1759042? A: Substitution is based on manufacturer continuity (Phoenix Contact), product category alignment (Terminal Blocks), electrical parameter compatibility (current and voltage ratings), mechanical interface specifications (pitch, number of positions, termination style), and regulatory compliance status (RoHS3, REACH).

Q: Are there packaging differences between these parts? A: The main part 1759042 has unspecified packaging information. The substitute 1952296 is supplied in Bulk packaging format. Verify packaging requirements for your procurement and assembly processes.

Q: What is the wire gauge compatibility range? A: The 1952296 accepts wire gauges from 16-24 AWG, equivalent to 0.2-1.5mm². Ensure your application wiring falls within this range for proper termination and electrical performance.

Q: Are both parts compliant with current regulations? A: The 1952296 is ROHS3 compliant and REACH unaffected, meeting current European and international regulatory requirements. The main part 1759042 compliance status is not specified in available data.

Q: What is the operational temperature range? A: Operating temperature specifications are not provided in the available technical data for either part number. Consult Phoenix Contact technical documentation for thermal operating limits.

Q: What mounting configuration does the 1952296 support? A: The 1952296 is configured as a free-hanging (in-line) plug with 180° wire entry orientation, suitable for direct wire termination without additional mounting hardware.
