Weidmüller 1753092001 Terminal Block Header - Equivalent & Substitute Parts

Part Overview

The Weidmüller 1753092001 is a 13-position terminal block header from the Omnimate SL series, designed for vertical through-hole mounting with 0.138" (4.60mm) pitch spacing. This shrouded male pin header operates at IEC-rated 15A/320V and UL-rated 10A/300V, suitable for industrial control and power distribution applications. The part is active in production and RoHS compliant. Substitute parts may be required due to inventory availability, specific color requirements, or performance parameter variations within acceptable electrical and mechanical tolerances.

Substiute Parts

1753092001

WeidmüllerIn Stock: 7241753092001 Datasheet

Current PartRFQ

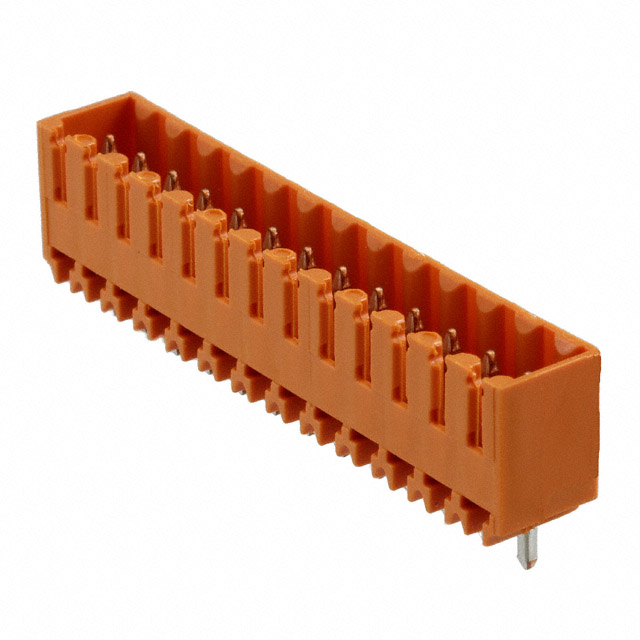

1604580000

WeidmüllerIn Stock: 12911604580000 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the Weidmüller 1753092001 is determined by the following critical parameters:

• Electrical Compatibility: Current and voltage ratings must meet or exceed the application requirements. The main part operates at IEC 15A/320V and UL 10A/300V.
• Mechanical Compatibility: Number of positions (13), pitch spacing (0.138"/4.60mm), header orientation (vertical), and mounting type (through hole) must be identical.
• Connector Type: Male pins with 4-side shrouding are required for mechanical and electrical safety.
• Termination: Solder termination style must be maintained.
• Compliance: RoHS compliance and UL94 V-0 flammability rating are mandatory for equivalent substitution.

The substitute part 1604580000 meets all critical electrical and mechanical parameters, with variations in housing material (PBT vs. LCP), contact tail length, and color that do not affect functional equivalence within the specified operating conditions.

Parameter Comparison

Engineering Selection Recommendations

Both the Weidmüller 1753092001 and 1604580000 are active production parts with full RoHS compliance and UL94 V-0 flammability certification. The substitute part 1604580000 provides equivalent electrical performance with IEC current rating of 17A, exceeding the main part's 15A specification while maintaining identical voltage ratings and UL specifications.

Selection between these parts should be based on:

• PCB Design Compatibility: The contact tail length difference (0.059" vs. 0.126") affects solder joint depth and PCB pad design. Verify that existing PCB layouts accommodate the longer tail length of part 1604580000.
• Housing Material Requirements: The main part uses glass-filled LCP while the substitute uses PBT. Both materials meet UL94 V-0 requirements; material selection depends on specific thermal or chemical exposure conditions in the application.
• Color Coding: The main part is black while the substitute is orange. Color selection may be driven by circuit board assembly standards or visual identification requirements.
• Inventory Availability: The substitute part 1604580000 has higher stock availability (1242 pcs vs. 706 pcs).

Frequently Asked Questions (FAQ)

Q: Can part 1604580000 be used as a direct replacement for 1753092001 on existing PCBs?

A: Electrical substitution is valid. However, the contact tail length differs (0.059" vs. 0.126"), which may affect solder joint formation and PCB pad design. PCB layout verification is required before assembly.

Q: What is the significance of the housing material difference (LCP vs. PBT)?

A: Both materials meet UL94 V-0 flammability requirements and operate across the same temperature range (-50°C to 100°C). Material selection depends on specific application requirements such as chemical resistance or thermal cycling conditions. Both are suitable for standard industrial control applications.

Q: Are the electrical ratings of part 1604580000 compatible with applications designed for 1753092001?

A: Yes. The substitute part 1604580000 has a higher IEC current rating (17A vs. 15A) and identical voltage ratings (320V IEC, 300V UL). It meets or exceeds all electrical requirements of the original part.

Q: Does the color difference affect functionality?

A: No. Color is a visual identification feature only and does not affect electrical or mechanical performance. Selection should be based on circuit board assembly standards or internal documentation requirements.

Q: Are both parts suitable for the same environmental conditions?

A: Yes. Both parts operate across -50°C to 100°C, maintain IP10 ingress protection, and are RoHS compliant. They are suitable for equivalent environmental applications.

Q: What is the impact of the insulation height difference (0.435" vs. 0.437")?

A: The difference of 0.002" (0.05mm) is negligible and does not affect mechanical fit or electrical performance in standard applications.
