173-E15-212-001 D-Sub Receptacle Connector Equivalent & Substitute Parts

Part Overview

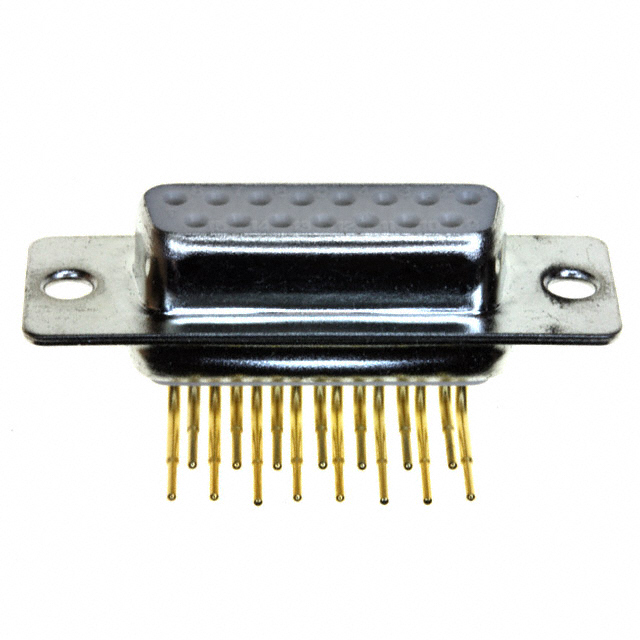

The 173-E15-212-001 is a 15-position D-Sub receptacle connector manufactured by NorComp Inc., featuring female sockets with right-angle solder termination and panel mount through-hole mounting. This connector is classified as obsolete, which necessitates identification of functionally equivalent alternatives for ongoing system support and new design implementations. The part operates across a temperature range of -50°C to 100°C with a 5A current rating and UL94 V-0 flammability compliance.

Substiute Parts

173-E15-212-001

NorComp Inc.In Stock: 1146173-E15-212-001 Datasheet

Current PartRFQ

173-E15-213R001

NorComp Inc.In Stock: 1089173-E15-213R001 Datasheet

DirectRFQ

173-E15-211R241

NorComp Inc.In Stock: 1434173-E15-211R241 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 173-E15-212-001 is determined by strict alignment with the following core parameters: connector type (D-Sub receptacle, female sockets), position count (15), row configuration (2), shell size (2/DA/A), mounting style (right angle), termination method (solder), current rating (5A), and contact finish (gold flash). All substitute parts must maintain these electrical and mechanical specifications to ensure form, fit, and function compatibility.

The substitute parts identified are:

173-E15-213R001 — Direct manufacturer substitute with active product status, offering improved RoHS3 compliance and extended operating temperature range (-55°C to 125°C). Shell material differs (nickel plated vs. tin plated) and dielectric material is polyamide (PA6T) instead of PBT. Mounting type is through-hole right angle without panel mount specification.

173-E15-211R241 — Similar manufacturer substitute with obsolete product status. Features panel mount capability matching the original part. Shell material is yellow chromate plated, and dielectric material is polyamide (PA6T). Includes mounting brackets and mating-side standard screws (4-40) as flange features.

Parameter Comparison

Engineering Selection Recommendations

173-E15-213R001 is the preferred substitute for new designs and systems requiring regulatory compliance. This part maintains all core electrical and mechanical compatibility parameters while offering active product status and RoHS3 compliance. The extended operating temperature range (-55°C to 125°C) provides additional thermal margin. The nickel-plated shell finish and polyamide dielectric material represent standard modern alternatives to the original tin-plated/PBT configuration. The absence of panel mount specification in the datasheet requires verification if panel-mount functionality is critical to the application.

173-E15-211R241 is suitable for legacy system maintenance where panel mount capability with mounting brackets is required. This part retains obsolete status and RoHS non-compliance, matching the regulatory profile of the original part. The yellow chromate plating and polyamide dielectric are functionally equivalent to modern alternatives. The inclusion of mounting brackets and 4-40 screws provides direct mechanical compatibility for panel installations.

Frequently Asked Questions (FAQ)

Q: Can 173-E15-213R001 be used as a direct replacement for 173-E15-212-001 in existing assemblies?

A: 173-E15-213R001 maintains all core electrical and mechanical specifications (15 positions, 2 rows, shell size 2, 5A rating, solder termination, gold contact finish). The primary difference is the absence of explicit panel mount specification in the substitute part. If the original application uses panel mount through-hole configuration, physical fit verification is required before implementation.

Q: What are the compliance implications of substituting with 173-E15-213R001?

A: 173-E15-213R001 is RoHS3 compliant, whereas the original 173-E15-212-001 is RoHS non-compliant. For systems subject to RoHS regulations, this substitute provides regulatory alignment. The REACH status remains unaffected for both parts.

Q: Are there differences in dielectric material performance between the original and substitute parts?

A: The original part uses polybutylene terephthalate (PBT), while both substitutes use polyamide (PA6T/Nylon 6T). Both materials maintain UL94 V-0 flammability rating. Polyamide offers different thermal and mechanical properties; applications requiring specific dielectric characteristics should evaluate material datasheets.

Q: What is the significance of the shell finish differences (tin plated vs. nickel plated vs. yellow chromate)?

A: Shell finish affects corrosion resistance and environmental durability. Tin plating (original) provides standard protection. Nickel plating (173-E15-213R001) offers enhanced corrosion resistance. Yellow chromate plating (173-E15-211R241) provides military-grade protection. Selection depends on environmental exposure requirements.

Q: Can 173-E15-211R241 be used in new designs?

A: 173-E15-211R241 is classified as obsolete. While functionally compatible with the original part, its obsolete status indicates limited future availability. For new designs, 173-E15-213R001 (active status) is the recommended choice.

Q: What packaging considerations apply to these substitutes?

A: The original part packaging is not specified. 173-E15-213R001 and 173-E15-211R241 are supplied in tray packaging. Verify tray specifications against assembly equipment requirements.
