TE Connectivity AMP 1735690-1 SAS Receptacle Connector Equivalent & Substitute Parts

Part Overview

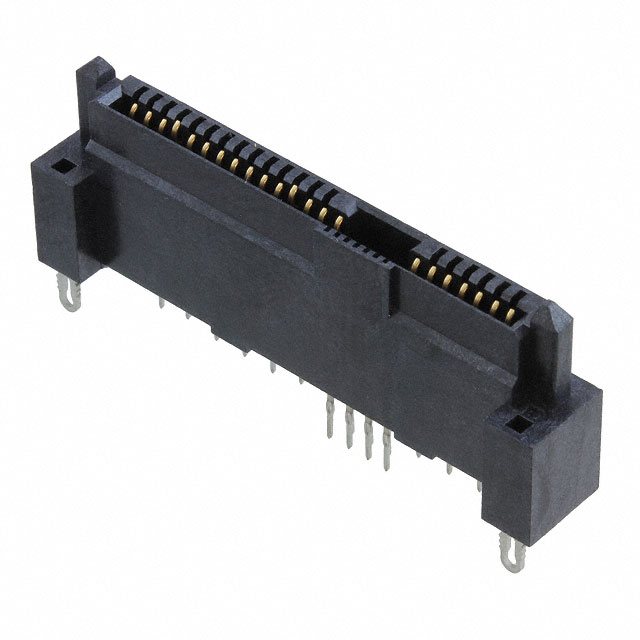

The TE Connectivity AMP 1735690-1 is a 29-position SAS receptacle connector designed for press-fit through-hole PCB mounting. This connector features board guide and board lock functionality with gold-plated contacts. The part is classified as obsolete, necessitating identification of active equivalent alternatives for ongoing design and procurement requirements. Substitute parts must maintain identical electrical and mechanical specifications to ensure direct interchangeability in existing applications.

Substiute Parts

1735690-1

TE Connectivity AMP ConnectorsIn Stock: 135961735690-1 Datasheet

Current PartRFQ

10031077-001LF

Amphenol ICC (FCI)In Stock: 85710031077-001LF Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the TE Connectivity AMP 1735690-1 is determined by strict equivalence across the following critical parameters:

Mandatory Matching Parameters:

• Connector Type: SAS
• Connector Style: Receptacle
• Number of Positions: 29
• Mounting Type: Through Hole
• Termination Method: Press-Fit
• Features: Board Guide, Board Lock
• Contact Finish: Gold
• RoHS Compliance: RoHS Compliant
• Moisture Sensitivity Level: MSL 1

The substitute part Amphenol ICC (FCI) 10031077-001LF satisfies all mandatory parameters, establishing functional and mechanical interchangeability. Both parts are classified within the same HTSUS code (8536.69.4040) and ECCN classification (EAR99), confirming regulatory alignment.

Parameter Comparison

Engineering Selection Recommendations

The Amphenol ICC (FCI) 10031077-001LF connector is a direct functional equivalent to the obsolete TE Connectivity AMP 1735690-1. Both parts are RoHS compliant and carry identical ECCN and HTSUS classifications, confirming regulatory and trade compliance alignment.

The Amphenol ICC part is currently in active production status, ensuring long-term availability and supply chain continuity. The contact finish thickness of the Amphenol ICC part (30.0µin) exceeds the TE Connectivity specification (8.00µin), providing enhanced durability and contact reliability without compromising electrical performance.

For applications currently utilizing the TE Connectivity AMP 1735690-1, direct substitution with the Amphenol ICC (FCI) 10031077-001LF is supported by equivalent mechanical fit, electrical performance, and regulatory compliance.

Frequently Asked Questions (FAQ)

Q: Can the Amphenol ICC (FCI) 10031077-001LF be used as a direct replacement for the TE Connectivity AMP 1735690-1?

A: Yes. Both connectors are 29-position SAS receptacles with identical mounting type (through hole), termination method (press-fit), and features (board guide, board lock). Electrical and mechanical specifications are equivalent, supporting direct substitution in existing PCB designs.

Q: What is the difference in contact finish thickness between these parts?

A: The TE Connectivity part specifies 8.00µin (0.203µm) contact finish thickness, while the Amphenol ICC part provides 30.0µin (0.76µm). The Amphenol ICC thickness exceeds the minimum specification, offering increased contact durability and wear resistance without affecting electrical performance or compatibility.

Q: Are both parts RoHS compliant?

A: Yes. Both the TE Connectivity AMP 1735690-1 and Amphenol ICC (FCI) 10031077-001LF are RoHS compliant, meeting environmental and regulatory requirements for restricted substance use.

Q: What is the product status difference between these connectors?

A: The TE Connectivity AMP 1735690-1 is classified as obsolete, indicating discontinued production. The Amphenol ICC (FCI) 10031077-001LF is in active production status, ensuring ongoing availability and supply chain support.

Q: Do these connectors have the same moisture sensitivity level?

A: Yes. Both parts are classified as MSL 1 (Unlimited), indicating no moisture sensitivity restrictions and unlimited shelf life under standard storage conditions.

Q: Are the regulatory classifications identical?

A: Yes. Both parts share the same ECCN classification (EAR99) and HTSUS code (8536.69.4040), confirming equivalent export control and tariff treatment.

Q: What packaging is available for the substitute part?

A: The Amphenol ICC (FCI) 10031077-001LF is supplied in tray packaging, suitable for automated assembly and high-volume production environments.
