Amphenol RF 172190 Equivalent & Substitute Parts

Part Overview

The Amphenol RF 172190 is an N Type Connector Receptacle with female socket configuration, designed for 50 Ohm coaxial applications. This panel mount component features solder termination for both center contact and shield, operating across a frequency range up to 11 GHz. The part maintains Active product status and is ROHS3 compliant with REACH compliance. Substitute parts are identified when equivalent electrical and mechanical specifications are required for design flexibility, inventory management, or supply chain continuity while maintaining identical functional performance.

Substiute Parts

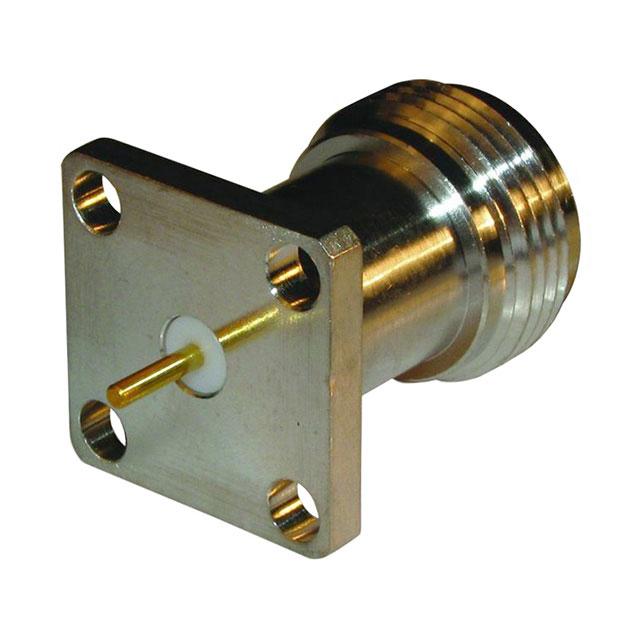

172190

Amphenol RFIn Stock: 1068172190 Datasheet

Current PartRFQ

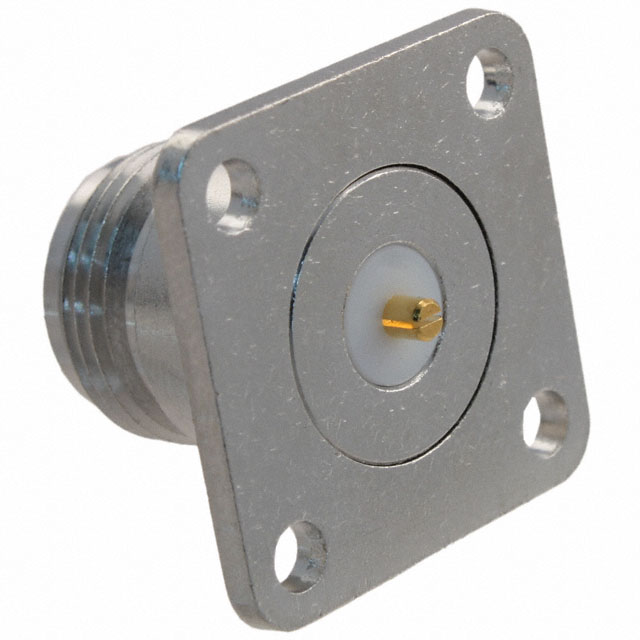

172121

Amphenol RFIn Stock: 990172121 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the Amphenol RF 172190 are identified based on strict equivalence across all critical electrical and mechanical parameters. The substitution logic requires matching specifications in the following categories:

Electrical Parameters: Impedance (50 Ohms), frequency maximum rating (11 GHz), voltage rating (1500 V), and insertion loss (0.15 dB) must be identical.

Mechanical Parameters: Connector style (N Type), connector type (Receptacle, Female Socket), mounting type (Panel Mount), mounting feature (Flange), and fastening type (Threaded) must be identical.

Termination Parameters: Both contact termination and shield termination must be Solder.

Material and Environmental Parameters: Center contact material (Phosphor Bronze), body material (Brass), body finish (White Bronze), center contact plating (Gold), and dielectric material (PTFE) must match. Operating temperature range (-65°C ~ 165°C) and mating cycles (500) must be identical.

Compliance Parameters: RoHS status (ROHS3 Compliant), REACH status (REACH Affected), and MSL rating (1 - Unlimited) must be equivalent.

Parameter Comparison

Engineering Selection Recommendations

The Amphenol RF 172121 is a direct parametric equivalent to the Amphenol RF 172190. Both components share identical electrical specifications, mechanical configurations, material compositions, and compliance certifications. Selection between these parts is based on inventory availability and supply chain considerations rather than functional differences.

Both parts maintain Active product status and are ROHS3 compliant with REACH compliance. The identical insertion loss specification (0.15 dB), frequency rating (11 GHz), and impedance (50 Ohms) ensure equivalent performance in RF coaxial applications. Material specifications including Phosphor Bronze center contacts, Brass bodies with White Bronze finish, and PTFE dielectric materials are identical across both parts.

The Amphenol RF 172190 currently maintains higher inventory levels (1054 pieces) compared to the Amphenol RF 172121 (916 pieces). Both parts are packaged in bags and share the same base product number (1721).

Frequently Asked Questions (FAQ)

Q: Can the Amphenol RF 172121 be used as a direct replacement for the Amphenol RF 172190?

A: Yes. The Amphenol RF 172121 is a parametric equivalent with identical electrical and mechanical specifications. All critical parameters including impedance, frequency rating, termination type, mounting configuration, and material composition are identical.

Q: Are there any differences in the operating temperature range between these parts?

A: No. Both the Amphenol RF 172190 and Amphenol RF 172121 operate across the identical temperature range of -65°C to 165°C.

Q: Do both parts have the same compliance certifications?

A: Yes. Both parts are ROHS3 compliant, REACH affected, and carry the same ECCN (EAR99) and HTSUS (8536.69.4010) classifications.

Q: What is the maximum frequency rating for these N Type connectors?

A: Both parts are rated for a maximum frequency of 11 GHz, making them suitable for RF coaxial applications within this frequency range.

Q: Are the insertion loss specifications identical?

A: Yes. Both the Amphenol RF 172190 and Amphenol RF 172121 specify an insertion loss of 0.15 dB.

Q: What is the voltage rating for these connectors?

A: Both parts are rated for 1500 V.

Q: Do these connectors use the same termination method?

A: Yes. Both parts use solder termination for both the center contact and shield.

Q: What is the mating cycle rating for these connectors?

A: Both parts are rated for 500 mating cycles.

Q: Are the dielectric materials the same?

A: Yes. Both parts use Polytetrafluoroethylene (PTFE) as the dielectric material.

Q: What is the Moisture Sensitivity Level (MSL) for these parts?

A: Both parts have an MSL rating of 1 (Unlimited), indicating no moisture sensitivity restrictions.
