Amphenol RF 172138 Equivalent & Substitute Parts

Part Overview

The Amphenol RF 172138 is an N Type coaxial connector jack with female socket configuration, rated for 50 ohms impedance and designed for panel mount applications using solder termination. This connector is specified for RF applications up to 11 GHz with weatherproof ingress protection and operates across the temperature range of -65°C to 165°C. The part is currently active in production status and maintains ROHS3 compliance with REACH affected designation. Substitute parts are identified when equivalent electrical and mechanical parameters are maintained across the connector interface, allowing for interchangeability in circuit applications where the primary functional requirements remain constant.

Substiute Parts

172138

Amphenol RFIn Stock: 741172138 Datasheet

Current PartRFQ

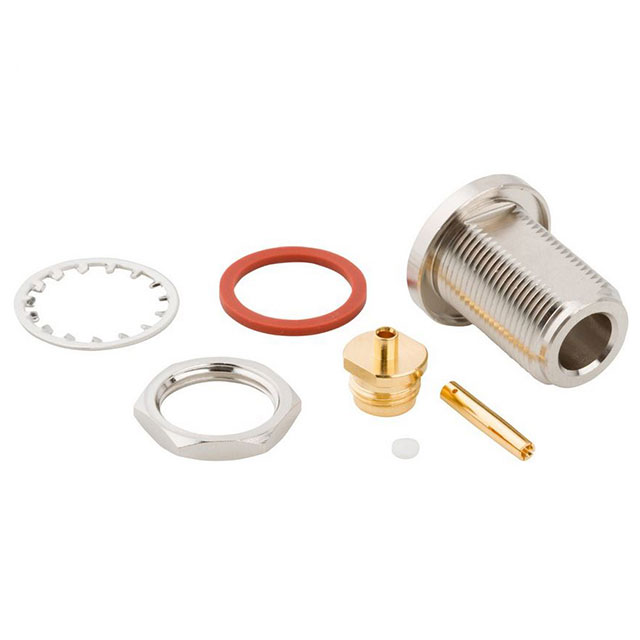

082-6096-RFX

Amphenol RFIn Stock: 932082-6096-RFX Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the Amphenol RF 172138 are identified based on strict equivalence across the following critical parameters: connector style (N Type), connector type (Jack, Female Socket), impedance rating (50 Ohms), contact and shield termination method (Solder), mounting configuration (Panel Mount with Bulkhead - Front Side Nut), compatible cable group (RG-405 semi-rigid), maximum frequency rating (11 GHz), voltage rating (1500 V), operating temperature range (-65°C ~ 165°C), insertion loss (0.15 dB), and mating cycle rating (500). Substitution is permitted when all electrical parameters, mechanical interface dimensions, and environmental specifications remain identical. Packaging format differences (Bag versus Bulk) do not affect functional interchangeability. Body finish variations (White Bronze versus Nickel) are permissible provided all other material specifications and performance characteristics are maintained.

Parameter Comparison

Engineering Selection Recommendations

Both the Amphenol RF 172138 and the substitute part 082-6096-RFX maintain active production status and full ROHS3 compliance with REACH affected designation. The parts are functionally equivalent across all electrical performance parameters, mechanical interface specifications, and environmental operating conditions. Selection between these parts is determined by packaging requirements and procurement logistics rather than technical performance criteria. The 172138 is supplied in bag packaging format, while the 082-6096-RFX is supplied in bulk packaging format. The body finish variation between White Bronze (172138) and Nickel (082-6096-RFX) does not affect electrical performance or mechanical compatibility. Both parts satisfy identical compliance certifications and regulatory requirements for RF coaxial connector applications operating at frequencies up to 11 GHz with 50 ohm impedance matching.

Frequently Asked Questions (FAQ)

Q: Are the Amphenol RF 172138 and 082-6096-RFX electrically interchangeable?

A: Yes. Both parts maintain identical electrical specifications including 50 ohm impedance, 11 GHz maximum frequency rating, 0.15 dB insertion loss, 1500 V voltage rating, and identical dielectric material (PTFE) with gold-plated phosphor bronze center contacts.

Q: What is the difference between the two part numbers?

A: The primary differences are packaging format (Bag for 172138 versus Bulk for 082-6096-RFX) and body finish (White Bronze for 172138 versus Nickel for 082-6096-RFX). All electrical and mechanical specifications remain identical.

Q: Can I use 082-6096-RFX as a direct replacement for 172138 in existing designs?

A: Yes. The parts are mechanically and electrically equivalent. The bulkhead panel mount configuration, threaded fastening, and RG-405 semi-rigid cable compatibility are identical. The body finish variation does not affect functional performance.

Q: Are both parts RoHS compliant?

A: Yes. Both the 172138 and 082-6096-RFX are ROHS3 compliant with REACH affected status and EAR99 export classification.

Q: What is the operating temperature range for these connectors?

A: Both parts operate across the identical temperature range of -65°C to 165°C, supporting applications in extreme environmental conditions.

Q: How many mating cycles are these connectors rated for?

A: Both parts are rated for 500 mating cycles, defining the mechanical durability specification for repeated connection and disconnection operations.

Q: What cable types are compatible with these connectors?

A: Both parts are specified for RG-405 semi-rigid coaxial cable with .085" to .086" outer diameter specifications.

Q: Is the packaging difference significant for my application?

A: Packaging format (Bag versus Bulk) affects only procurement and inventory management. It does not influence connector performance, compatibility, or electrical characteristics.
