TE Connectivity 172135-2 Equivalent & Substitute Parts

Part Overview

The TE Connectivity 172135-2 is an 8-position housing connector with male tab configuration, designed for 0.250" (6.35mm) quick connect and disconnect applications. This component is classified as obsolete, necessitating identification of active equivalent parts for ongoing procurement and system maintenance. The housing is constructed from black nylon material and is suitable for free-hanging, in-line mounting applications. Contacts are not included with this housing assembly.

Substiute Parts

172135-2

TE Connectivity AMP ConnectorsIn Stock: 882172135-2 Datasheet

Current PartRFQ

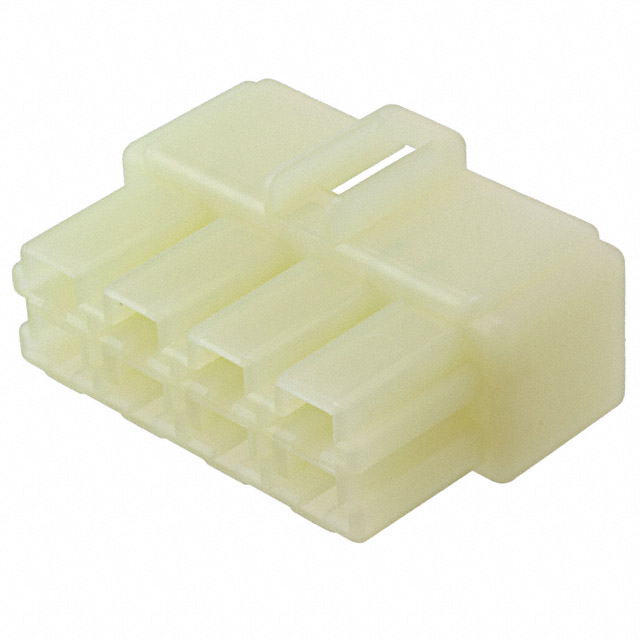

172135-1

TE Connectivity AMP ConnectorsIn Stock: 182962172135-1 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 172135-2 is determined by strict equivalence across the following critical parameters:

• Terminal Size: 0.250" (6.35mm) — must match exactly for mechanical and electrical compatibility
• Number of Positions: 8 — housing cavity count must be identical
• Gender Configuration: Male, Tab — connector gender and tab orientation must be identical
• Terminal Type: Quick Connect, Disconnect — functional interface type must be identical
• Mounting Type: Free Hanging (In-Line) — installation method must be identical
• Material: Nylon — housing material must be identical
• Stacking Direction: Top to Bottom and Side to Side — stacking capability must be identical
• Series: 250 — product series must be identical

The substitute part 172135-1 maintains equivalence across all critical parameters. The primary distinction is color (natural versus black) and product status (active versus obsolete). Color variation does not affect electrical or mechanical function within the 250 series specification.

Parameter Comparison

Engineering Selection Recommendations

The TE Connectivity 172135-1 is the direct functional equivalent for the obsolete 172135-2. Both components are RoHS compliant and carry identical moisture sensitivity ratings, ensuring regulatory and environmental compliance across applications. The 172135-1 maintains active product status with substantial inventory availability (182,927 pieces), providing supply chain continuity for new designs and replacement applications.

Selection of 172135-1 over 172135-2 is appropriate for all applications where the obsolete part was previously specified. The natural color variant does not compromise electrical performance or mechanical interface compatibility within the 250 series connector system. Both parts are contacts-not-included housings, requiring separate procurement of appropriate 0.250" (6.35mm) quick connect terminals.

Frequently Asked Questions (FAQ)

Q: Can 172135-1 be used as a direct replacement for 172135-2?

A: Yes. Both parts are electrically and mechanically equivalent across all functional parameters. The difference in color (natural versus black) does not affect connector performance or compatibility with 0.250" (6.35mm) quick connect terminals.

Q: What is the significance of the obsolete status for 172135-2?

A: Obsolete status indicates that TE Connectivity has discontinued production of the 172135-2. The 172135-1 is the active equivalent and is the appropriate selection for new designs and ongoing procurement requirements.

Q: Are there any compliance differences between these parts?

A: No. Both 172135-2 and 172135-1 are RoHS compliant with identical moisture sensitivity levels (MSL 1, Unlimited). Both are suitable for applications with equivalent regulatory requirements.

Q: Do these housings include contacts?

A: No. Both 172135-2 and 172135-1 are housings only. Contacts are not included and must be procured separately. Ensure selected contacts are compatible with 0.250" (6.35mm) quick connect and disconnect specifications.

Q: What is the difference in packaging between these parts?

A: 172135-2 packaging information is not specified in available data. 172135-1 is supplied in bag packaging. Contact the supplier for specific packaging requirements for your application.

Q: Can these connectors be stacked?

A: Yes. Both parts support stacking in top-to-bottom and side-to-side directions, enabling multi-position connector configurations within the 250 series system.
