TE Connectivity AMP Connectors 172134-6 Equivalent & Substitute Parts

Part Overview

The TE Connectivity AMP Connectors 172134-6 is a 4 Position Housing Connector Female Receptacle in Gray, designed for 0.250" (6.35mm) Quick Connect/Disconnect applications. This connector housing is part of the 250 Series and is manufactured from Nylon material for free-hanging, in-line mounting configurations. The part is currently Active in product status and maintains ROHS3 compliance with MSL Level 1 (Unlimited moisture sensitivity). Substitute parts are identified when inventory availability requires alternative sourcing or when color specifications allow for functional equivalents within the same electrical and mechanical parameters.

Substiute Parts

172134-6

TE Connectivity AMP ConnectorsIn Stock: 863172134-6 Datasheet

Current PartRFQ

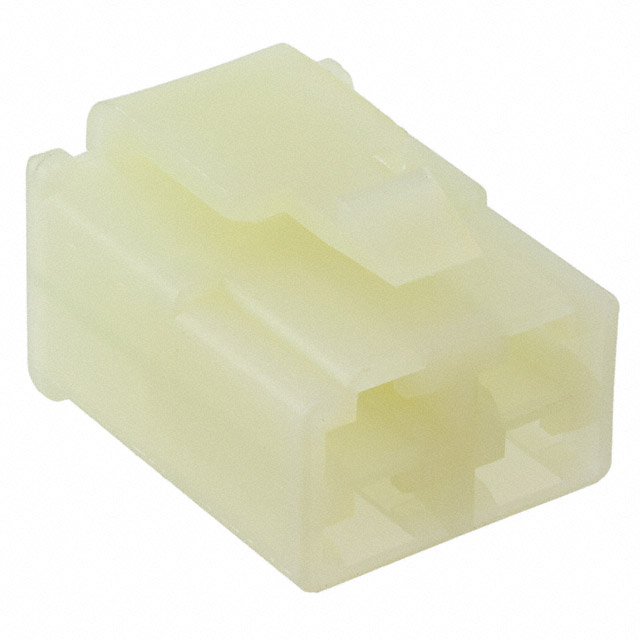

172134-1

TE Connectivity AMP ConnectorsIn Stock: 10108172134-1 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the TE Connectivity 172134-6 is determined by strict equivalence across the following critical parameters:

Mandatory Matching Parameters:

• Terminal Size: 0.250" (6.35mm)
• Number of Positions: 4
• Gender: Female, Receptacle
• Terminal Type: Quick Connect, Disconnect
• Series: 250
• Mounting Type: Free Hanging (In-Line)
• Material: Nylon
• Manufacturer: TE Connectivity AMP Connectors

Variable Parameters Allowing Substitution:

• Color (Gray vs. Natural)

The substitute part 172134-6 and 172134-1 share identical electrical and mechanical specifications across all functional parameters. The only difference is the housing color, which does not affect electrical performance, mechanical fit, or terminal compatibility. Both parts are manufactured from the same Nylon material, support the same 0.250" (6.35mm) Quick Connect terminals, and maintain identical stacking and mounting characteristics.

Parameter Comparison

Engineering Selection Recommendations

Both the TE Connectivity 172134-6 and 172134-1 are Active products with ROHS3 compliance and MSL Level 1 ratings, indicating full regulatory compliance and unlimited moisture tolerance. Selection between these parts should be based on application-specific color requirements and inventory availability.

The 172134-6 (Gray) is suitable for applications where color coding or visual identification requires gray housing. The 172134-1 (Natural) provides the same electrical and mechanical function with natural-colored Nylon housing. Both parts are manufactured by TE Connectivity AMP Connectors and maintain identical performance characteristics for 0.250" (6.35mm) Quick Connect/Disconnect terminal applications in 4-position configurations.

Current inventory levels show 853 units of 172134-6 and 10,072 units of 172134-1 available as new original stock. Selection should account for application color specifications and lead time requirements.

Frequently Asked Questions (FAQ)

Q: Can 172134-1 (Natural) be used as a direct replacement for 172134-6 (Gray)?

A: Yes. Both parts are functionally equivalent across all electrical and mechanical parameters. The only difference is housing color. If color specification is not a critical requirement, 172134-1 provides identical terminal compatibility, mounting characteristics, and performance.

Q: Are the terminal positions and stacking directions identical between these parts?

A: Yes. Both 172134-6 and 172134-1 support 4 positions with identical stacking direction (Top to Bottom and Side to Side). Both accommodate 0.250" (6.35mm) Quick Connect terminals without modification.

Q: Do both parts require separate contact purchases?

A: Yes. Both 172134-6 and 172134-1 are housing-only components. Contacts are not included and must be sourced separately for 0.250" (6.35mm) Quick Connect applications.

Q: What is the significance of the MSL Level 1 rating?

A: MSL Level 1 indicates unlimited moisture sensitivity, meaning these connectors can be stored and used without moisture-related restrictions. Both parts maintain this rating.

Q: Are there any compliance differences between the two parts?

A: No. Both 172134-6 and 172134-1 are ROHS3 compliant with identical regulatory status. Both are classified under EAR99 for export control purposes.

Q: Can these housings be used interchangeably in the same assembly?

A: Yes, provided color differentiation is not required for the application. The mechanical fit, electrical performance, and terminal compatibility are identical between 172134-6 and 172134-1.
