Phoenix Contact 1718397 Terminal Block Plug - Equivalent & Substitute Parts

Part Overview

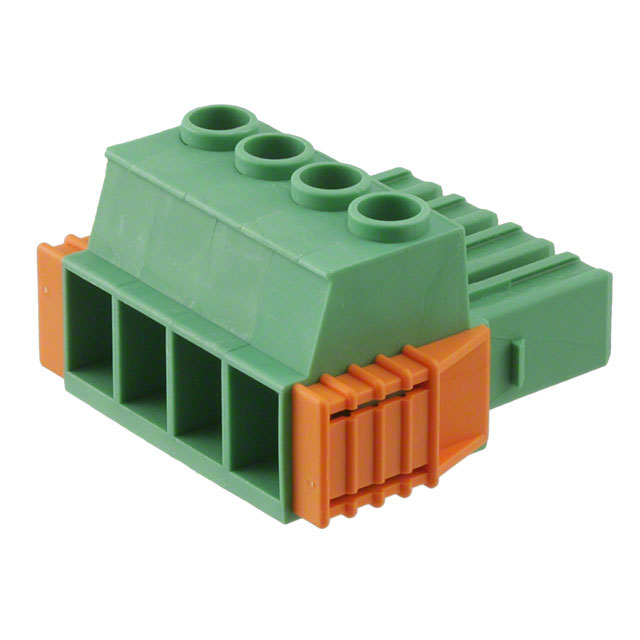

The Phoenix Contact 1718397 is a 4-position terminal block plug with female sockets, 0.300" (7.62mm) pitch, designed for 180° free-hanging in-line applications. This component features screw-type rising cage clamp termination and supports wire gauges from 8-24 AWG (0.2-10mm²). The part is classified as obsolete, making identification of active equivalent models essential for procurement and system continuity.

Substiute Parts

1718397

Phoenix ContactIn Stock: 11481718397 Datasheet

Current PartRFQ

1778081

Phoenix ContactIn Stock: 11111778081 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the Phoenix Contact 1718397 is determined by strict equivalence across the following critical parameters:

• Manufacturer and series consistency (Phoenix Contact COMBICON PC)
• Identical position count (4 positions)
• Matching pitch specification (0.300" / 7.62mm)
• Identical connector type (Plug, Female Sockets)
• Matching mounting configuration (Free Hanging In-Line)
• Equivalent termination method (Screw - Rising Cage Clamp)
• Compatible wire gauge range (8-24 AWG / 0.2-10mm²)
• Electrical ratings meeting or exceeding original specifications (41A IEC, 1 kV IEC)
• Housing material compatibility (Polyamide/Nylon)
• Flammability compliance (UL94 V-0)

The Phoenix Contact 1778081 meets all substitution criteria as an active product within the same COMBICON PC series, maintaining functional and electrical equivalence.

Parameter Comparison

Engineering Selection Recommendations

The Phoenix Contact 1778081 is the direct active equivalent for the obsolete 1718397 model. Both components maintain identical electrical specifications, mechanical dimensions, and functional characteristics within the COMBICON PC series. The 1778081 carries active product status, ensuring ongoing availability and supply chain continuity.

Compliance considerations: The 1778081 meets ROHS3 requirements, representing current regulatory compliance standards. Both parts maintain UL94 V-0 flammability ratings and REACH unaffected status, confirming suitability for regulated applications.

Minor dimensional variation exists in insulation height (1718397: 0.902" vs. 1778081: 0.776"), which does not affect functional compatibility in standard mounting configurations. Torque specification ranges differ slightly (1718397: 0.7-0.8 Nm vs. 1778081: 0.5-0.8 Nm), with the substitute accommodating the original specification within its lower tolerance band.

Frequently Asked Questions (FAQ)

Q: Can the 1778081 directly replace the 1718397 in existing assemblies?

A: Yes. Both components share identical pitch, position count, termination method, electrical ratings, and wire gauge compatibility. The 1778081 is functionally equivalent and mechanically compatible for direct substitution.

Q: What is the significance of the product status difference?

A: The 1718397 is classified as obsolete, indicating discontinued manufacturing. The 1778081 maintains active status, ensuring reliable procurement and ongoing manufacturer support. For new designs or system maintenance, the 1778081 is the recommended selection.

Q: Are there differences in packaging between these parts?

A: The 1718397 is supplied in standard packaging, while the 1778081 is supplied in bulk packaging. This distinction affects order quantities and logistics but does not impact component performance or compatibility.

Q: How do the torque specifications differ?

A: The 1718397 specifies 0.7-0.8 Nm, while the 1778081 specifies 0.5-0.8 Nm. The 1778081 accommodates the original specification within its upper tolerance range. Standard assembly procedures using the original torque value remain valid.

Q: Are both parts RoHS compliant?

A: Yes. The 1718397 meets RoHS compliance, and the 1778081 meets ROHS3 compliance, representing current regulatory standards. Both are suitable for applications requiring RoHS certification.

Q: What is the inventory status for procurement?

A: The 1718397 has 1071 pieces in stock as new original inventory. The 1778081 has 1068 pieces in stock as new original inventory. Both are available for immediate procurement.
