Phoenix Contact 1713723 Terminal Block Equivalent & Substitute Parts

Part Overview

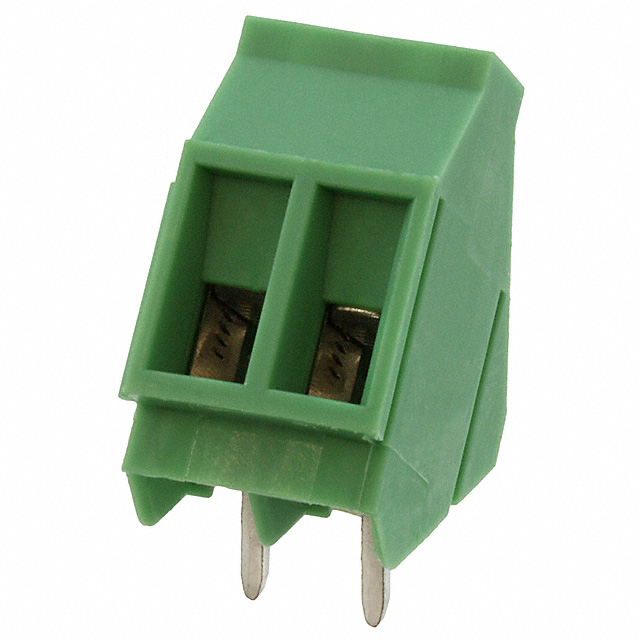

The Phoenix Contact 1713723 is a 2-position wire-to-board terminal block from the COMBICON SMKDS series, designed for PCB mounting with a 35° mating angle and 5.08mm pitch. This component is classified as Active and RoHS3 compliant. Substitute parts are identified when equivalent electrical ratings, mechanical compatibility, and functional characteristics align with the original specification, enabling direct replacement in applications where the primary part is unavailable or inventory constraints require alternative sourcing.

Substiute Parts

1713723

Phoenix ContactIn Stock: 10311713723 Datasheet

Current PartRFQ

1715290000

WeidmüllerIn Stock: 27631715290000 Datasheet

SimilarRFQ

1716060000

WeidmüllerIn Stock: 116261716060000 Datasheet

SimilarRFQ

1716120000

WeidmüllerIn Stock: 46641716120000 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the Phoenix Contact 1713723 are identified based on the following critical parameters that determine functional interchangeability:

Primary Compatibility Criteria:

• Positions per level: 2
• Pitch tolerance: 5.08mm (0.200") nominal
• Voltage rating: 300 V minimum
• Current rating: 15 A minimum
• Mounting type: Through hole PCB
• Wire termination: Screw-based clamping mechanism
• Interlocking feature: Side interlocking

Allowable Variations:

• Mating angle: 35° to 45° (board-mounted connector angle)
• Wire gauge range: Overlap within 12-30 AWG specification
• Screw thread: M2.5 to M3 (different torque specifications acceptable)
• Housing material: Thermoplastic or polyamide variants
• Color: Functional parameter; does not affect electrical performance
• Operating temperature: Extended range acceptable for wider application scope

The three substitute parts (Weidmüller 1715290000, 1716060000, 1716120000) meet these criteria with documented electrical ratings and mechanical compatibility.

Parameter Comparison

Engineering Selection Recommendations

Phoenix Contact 1713723 (Original Part)

• Active product status with established supply chain
• RoHS3 compliant for current regulatory requirements
• MSL rating of 1 provides unlimited shelf life stability
• Specified for applications requiring 12-30 AWG wire gauge range

Weidmüller 1716060000 (Preferred Substitute)

• Identical pitch (5.08mm) and current rating (15 A) to original
• Matching voltage (300 V) and MSL rating (1)
• RoHS compliant with REACH unaffected status
• Mating angle difference (45° vs. 35°) requires PCB layout verification
• Screw thread M2.5 with lower torque specification (0.4-0.5 Nm) necessitates assembly procedure adjustment

Weidmüller 1716120000 (Alternative Substitute)

• Identical electrical specifications to 1716060000
• Orange housing color for circuit identification purposes
• MSL rating not applicable; suitable for standard storage conditions
• Same mating angle and screw thread considerations as 1716060000

Weidmüller 1715290000 (Limited Substitute)

• Pitch deviation (5.00mm vs. 5.08mm) introduces PCB hole spacing incompatibility
• Higher current rating (20 A) exceeds application requirement
• Wire gauge range (14-24 AWG) excludes 12 AWG and 25-30 AWG capabilities
• Use only when PCB redesign or wire gauge adjustment is feasible

All substitute parts maintain 300 V voltage rating, through-hole mounting, and side interlocking features. Selection depends on PCB layout constraints, wire gauge requirements, and assembly torque specifications.

Frequently Asked Questions (FAQ)

Q: Can Weidmüller 1716060000 directly replace Phoenix Contact 1713723 on existing PCBs? A: Direct replacement requires verification of mating angle compatibility. The 1713723 features a 35° angle while the 1716060000 uses 45°. PCB hole spacing and connector clearance must be confirmed before substitution. Pitch alignment (both 5.08mm) supports mechanical fit, but board layout geometry determines feasibility.

Q: What is the impact of different screw threads (M3 vs. M2.5) on assembly? A: The original 1713723 uses M3 screws with 0.5-0.6 Nm torque specification. Weidmüller substitutes employ M2.5 screws with 0.4-0.5 Nm torque. Assembly procedures must be adjusted accordingly. Lower torque limits prevent over-tightening and potential contact damage. Technicians must use calibrated torque tools for M2.5 fasteners.

Q: Are the wire gauge ranges compatible across all parts? A: The 1713723 accepts 12-30 AWG wire. Weidmüller substitutes (1715290000, 1716060000, 1716120000) accept 14-24 AWG. Applications using 12 AWG or 25-30 AWG wire cannot use Weidmüller alternatives without wire gauge modification. The 1715290000 additionally excludes 25-30 AWG capability.

Q: What is the significance of pitch differences (5.08mm vs. 5.00mm)? A: The 1715290000 has 5.00mm pitch versus 5.08mm for the original and other substitutes. This 0.08mm difference affects PCB hole spacing. Direct PCB substitution is not possible without board redesign. The 1716060000 and 1716120000 maintain 5.08mm pitch for direct hole alignment.

Q: Do all substitute parts meet current regulatory compliance? A: All substitute parts are RoHS compliant and REACH unaffected. The original 1713723 is RoHS3 compliant (newer standard). Weidmüller parts meet RoHS requirements. For applications requiring RoHS3 certification specifically, compliance documentation should be obtained from the manufacturer.

Q: How does operating temperature specification affect part selection? A: The original 1713723 does not specify operating temperature limits. Weidmüller substitutes are rated -50°C to 120°C. For applications operating within this range, substitutes provide documented thermal performance. For applications outside this range, original part specifications must be clarified with Phoenix Contact.

Q: What is the difference between MSL ratings of 1 and Not Applicable? A: MSL 1 (Unlimited) indicates the component has unlimited shelf life under standard storage conditions. MSL Not Applicable means moisture sensitivity is not a limiting factor for storage. Both conditions are acceptable for standard warehouse environments. Controlled storage is not required for either rating.
